PRODUCT MAINTENANCE
 Visually check if cables are connected to the terminal box.
 Check all screw connections of the green-yellow PE grounding conductor.

22.5. Condensate drain

A wet floor resulting from overflow from the vessel poses a slip hazard.
Regularly empty the condensate collection vessel.
Condensate from compressors with air dryers is automatically drained into a vessel to collect
condensate.
 Monitor the level in the vessel using the markings (depending on the volume of the vessel),
and empty at least once a day.

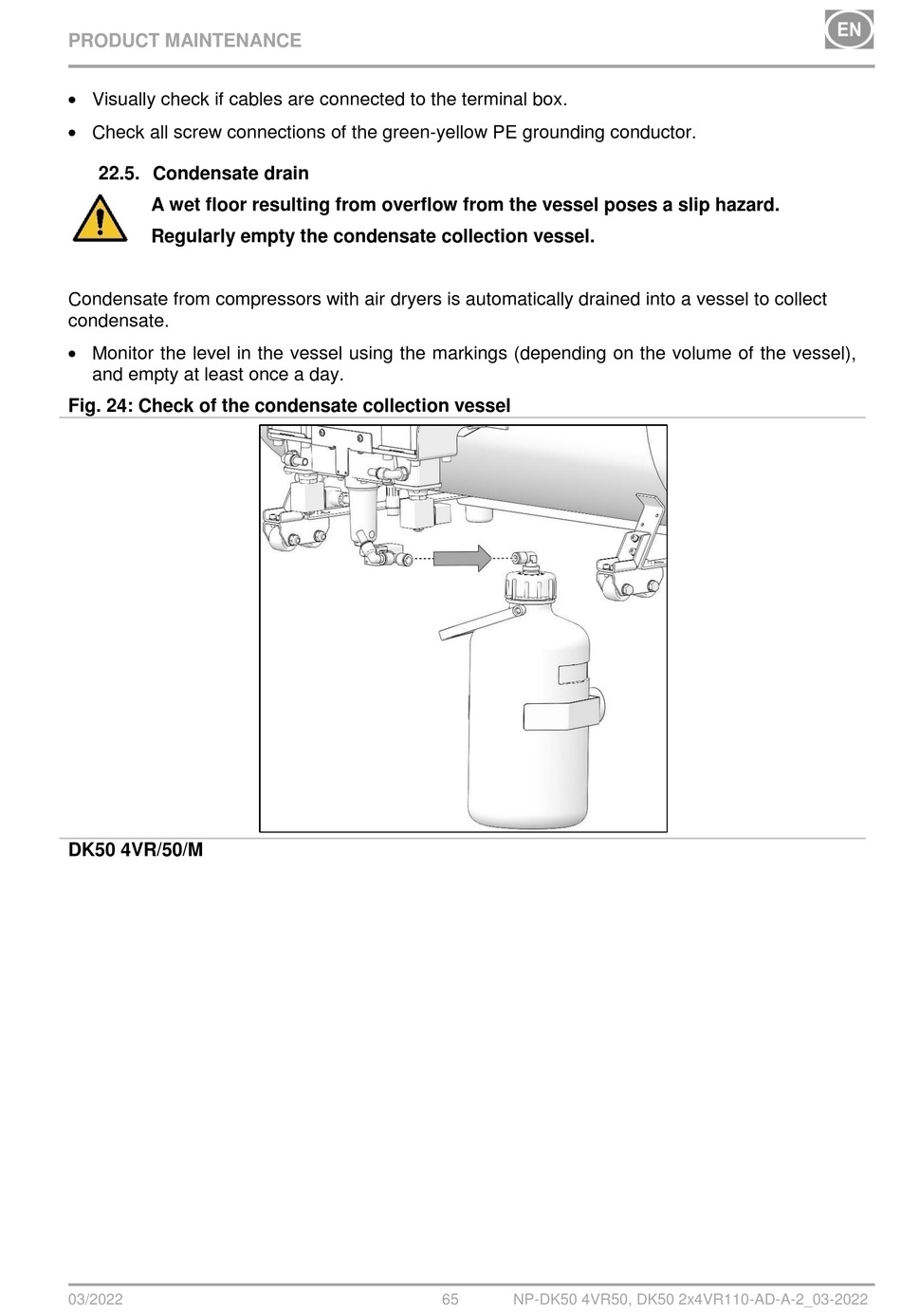

Fig. 24: Check of the condensate collection vessel
DK50 4VR/50/M
03/2022 65 NP-DK50 4VR50, DK50 2x4VR110-AD-A-2_03-2022
