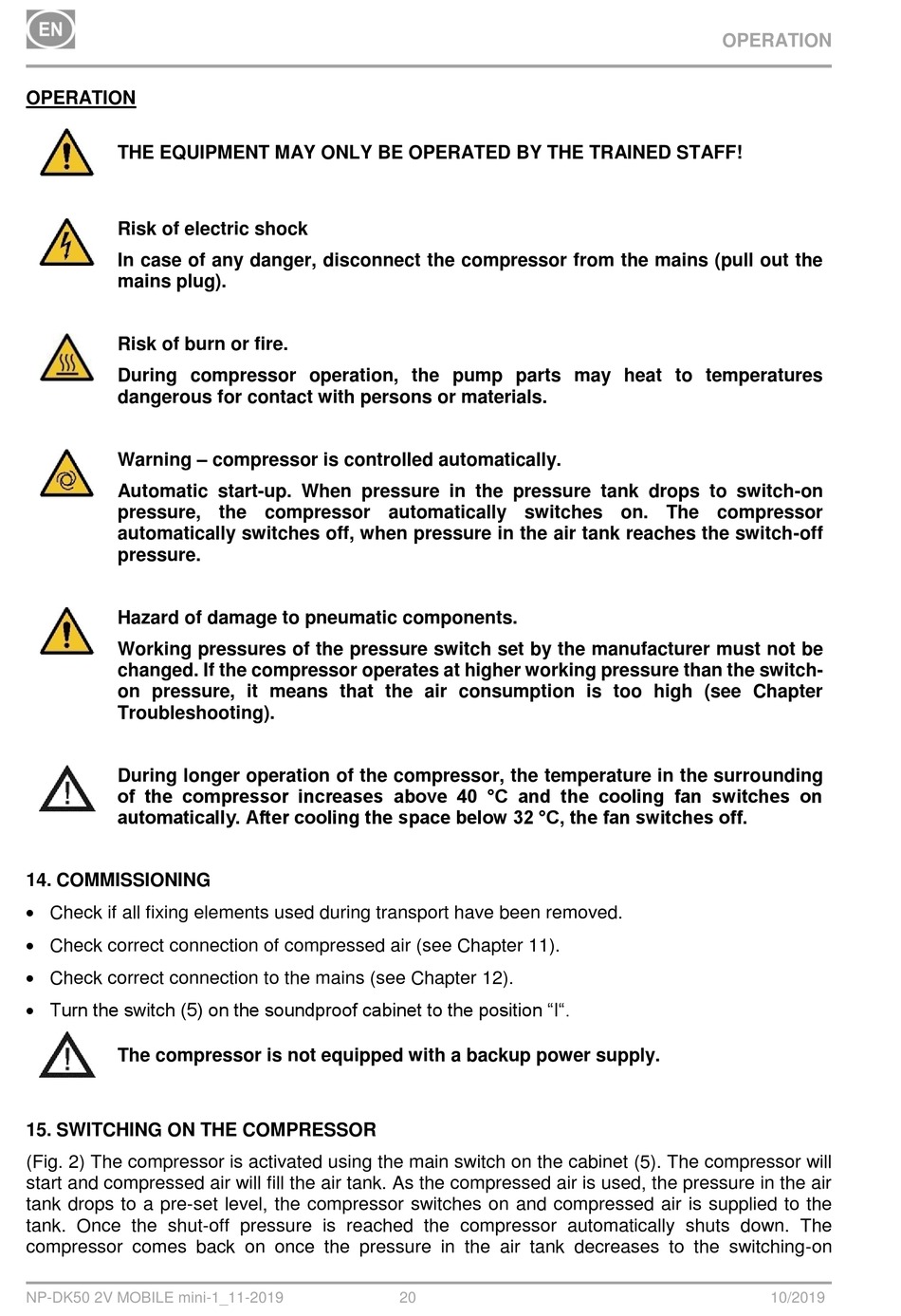

OPERATION

THE EQUIPMENT MAY ONLY BE OPERATED BY THE TRAINED STAFF!
Risk of electric shock
In case of any danger, disconnect the compressor from the mains (pull out the
mains plug).
Risk of burn or fire.
During compressor operation, the pump parts may heat to temperatures
dangerous for contact with persons or materials.
Warning – compressor is controlled automatically.
Automatic start-up. When pressure in the pressure tank drops to switch-on
pressure, the compressor automatically switches on. The compressor
automatically switches off, when pressure in the air tank reaches the switch-off
pressure.
Hazard of damage to pneumatic components.
Working pressures of the pressure switch set by the manufacturer must not be
changed. If the compressor operates at higher working pressure than the switch-
on pressure, it means that the air consumption is too high (see Chapter
Troubleshooting).
During longer operation of the compressor, the temperature in the surrounding
of the compressor increases above 40 °C and the cooling fan switches on
automatically. After cooling the space below 32 °C, the fan switches off.

14. COMMISSIONING

 Check if all fixing elements used during transport have been removed.
 Check correct connection of compressed air (see Chapter 11).
 Check correct connection to the mains (see Chapter 12).
 Turn the switch (5) on the soundproof cabinet to the position "I".
The compressor is not equipped with a backup power supply.

15. SWITCHING ON THE COMPRESSOR

(Fig. 2) The compressor is activated using the main switch on the cabinet (5). The compressor will
start and compressed air will fill the air tank. As the compressed air is used, the pressure in the air
tank drops to a pre-set level, the compressor switches on and compressed air is supplied to the
tank. Once the shut-off pressure is reached the compressor automatically shuts down. The
compressor comes back on once the pressure in the air tank decreases to the switching-on
