Risk of injury when compressed air is vented.
Protect your eyesight when checking the safety valve – wear protective goggles.
17.7. Inlet filter and pre-filter replacement
Inlet filter replacement:
Pull out the rubber plug by hand (2).
Remove the used filter (1).
Insert a new filter and replace the
rubber plug.
Pre-filter replacement:
Pull out the pre-filter by hand (3).
Replace the element and re-insert
17.8. Filter element replacement
Remove the hose from the quick connector.
Use a wrench to release the filter vessel and remove.
Pull down on the filter element to remove.
Insert a new filter element.
Re-install the filter vessel.
Gently tighten the filter vessel with the wrench.
Re-install the hose on the quick connector.
NP-DK50 2V MOBILE mini-1_11-2019

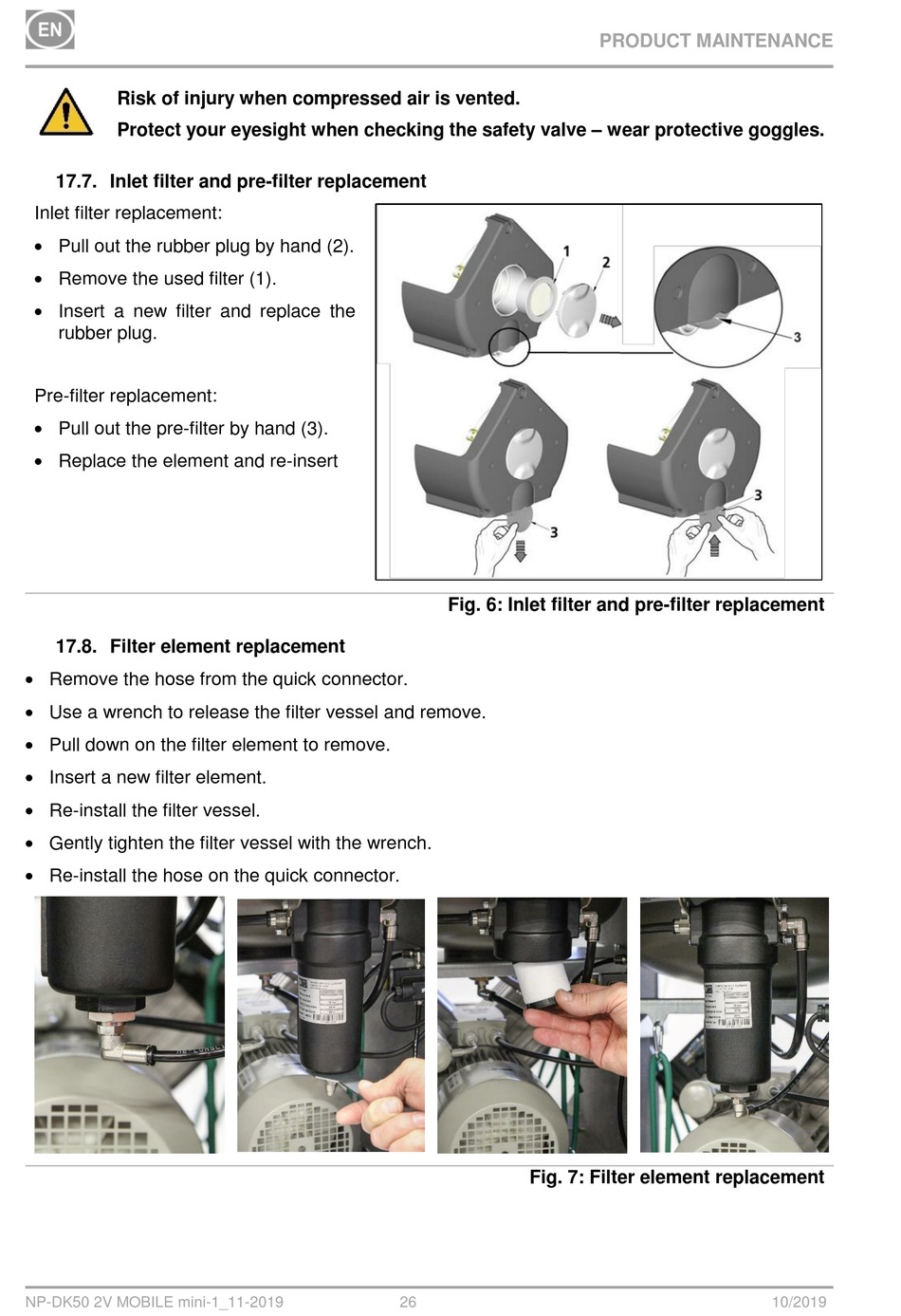

Fig. 6: Inlet filter and pre-filter replacement
Fig. 7: Filter element replacement
