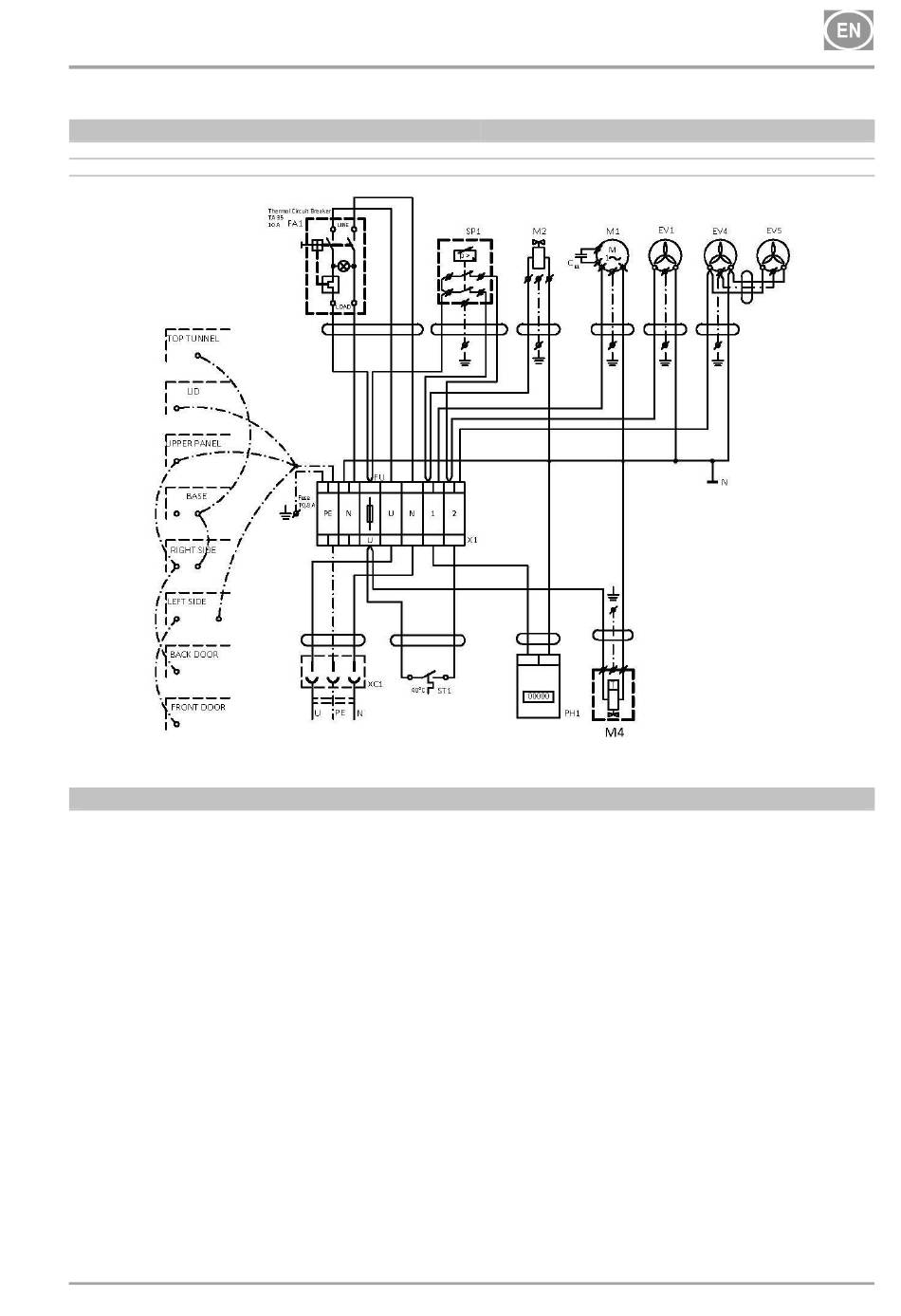

13. CONNECTION DIAGRAM

DK50 2V MOBILE MINI
1/N/PE 230 V 50/60 Hz
ELEKTRIC OBJECT OF 1st. CAT.
Description to electrical diagrams:
M1 Compressor motor
EV1 Compressor fan
EV4, EV5 Cabinet fan
FA1 Breaker
ST1 Temperature switch
SP1 Pressure switch
M4 Automatic condensate drain
10/2019
M2 Relief valve
X1 Terminal box
XC1 Connector
FU Fuse
CB1 Capacitor
PH1 Hour counter
