PRODUCT DESCRIPTION

6. VARIANTS

The compressor is manufactured according to its intended application in the following variants:

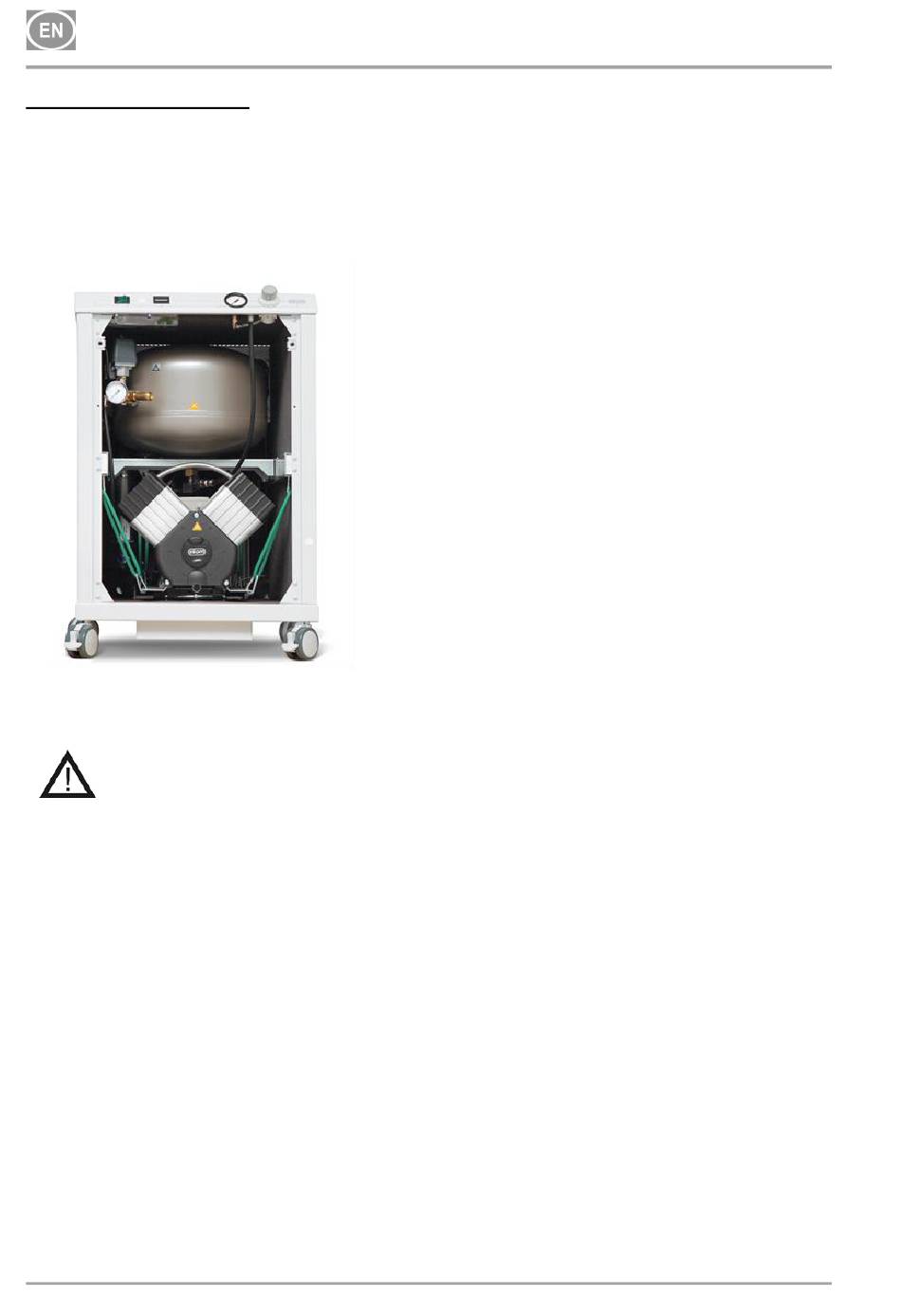

DK50 2V MOBILE MINI
DK50 2V MOBILE MINI
The compressed air from the compressor is not suitable for operating breathing
equipment or similar devices.

7. PRODUCT FUNCTION

7.1. Compressor without dryer
(Fig. 1) The air pump (1) draws in air through an inlet filter (7) and compresses it through a check
valve (3) into an air tank (2) from which the appliance draws compressed air. If the pressure in the
air tank drops to the switching pressure, the pressure switch (4) turns on the compressor and the
compressor supplies compressed air to the air tank until it reaches the switch off pressure, at which
time the compressor switches off. The pressure hose is vented through the relief solenoid valve
once the compressor unit is shut off. The safety valve (5) prevents the pressure in the air tank from
rising above the maximum permitted value. Condensate from the air tank (2) is automatically drained
at regular intervals trough the condensate separator with filter (11) into the condensate collection
vessel (12) via the condensate drain solenoid valve (10). Compressed, oil-free filtered air is stored
in the air tank ready for use.
7.2. Compressor cabinet
(Fig. 2) The cabinet features rolling casters (2 with locks, 2 without locks) so that the internal shape
of the cabinet defines the position of the compressor itself. The rolling casters and the rigid structure
of the cabinet itself ensure easy and simple manipulation of the cabinet. Remove the 2 quick
closures to open the cabinet (19).
NP-DK50 2V MOBILE mini-1_11-2019
a compressor in a cabinet with effective soundproofing
