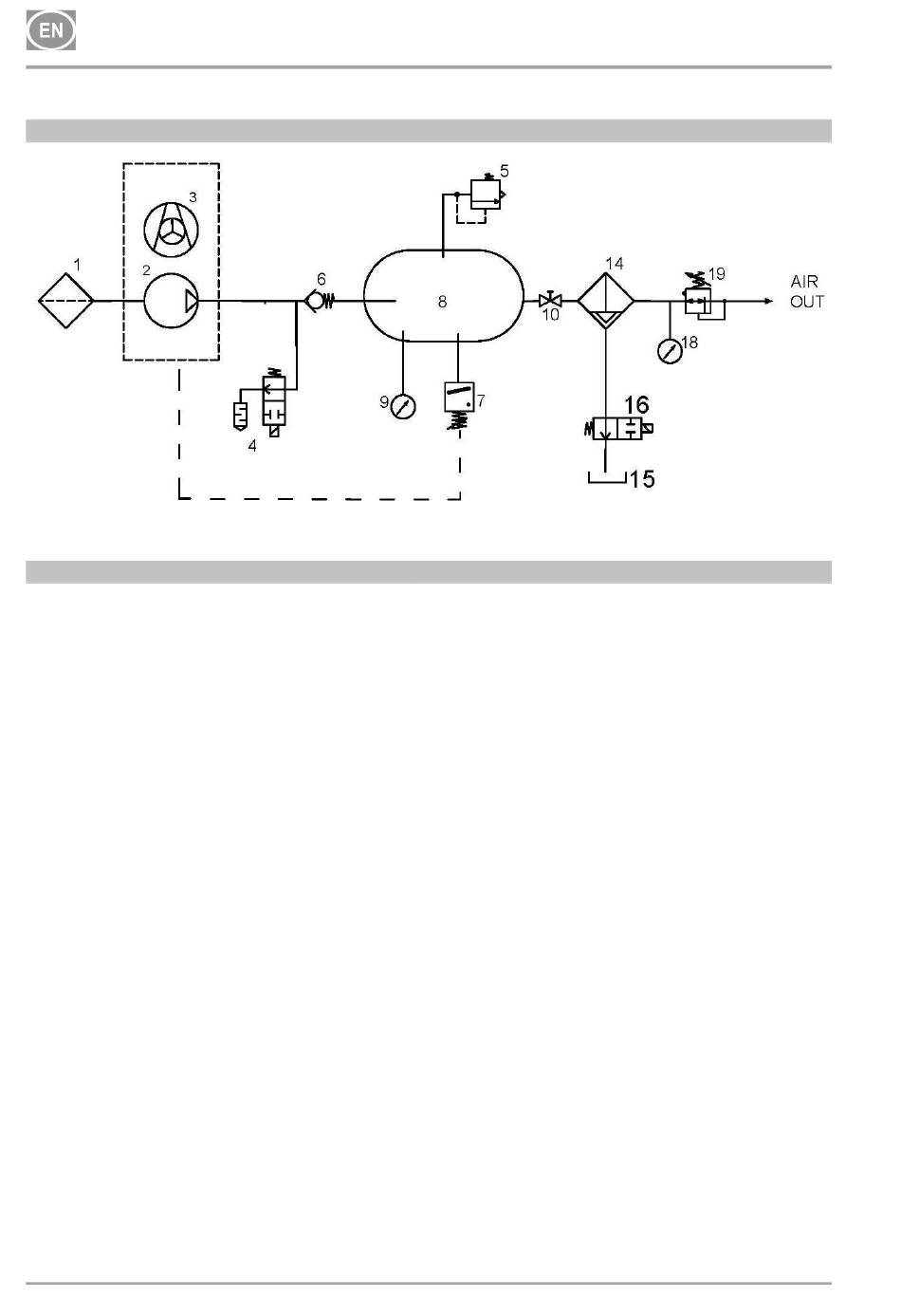

8. PNEUMATIC DIAGRAM

DK50 2V MOBILE MINI
Description to pneumatic diagrams:
1. Inlet filter
2. Compressor
3. Fan
4. Solenoid valve
5. Safety valve
6. Non-return valve
7. Pressure switch
NP-DK50 2V MOBILE mini-1_11-2019
8. Air tank
9. Pressure gauge
10. Ball valve
14. Filter
15. Condensate collection vessel
16. Automatic condensate drain
18. Cabinet pressure gauge
19. Regulator
16
PRODUCT DESCRIPTION
10/2019
