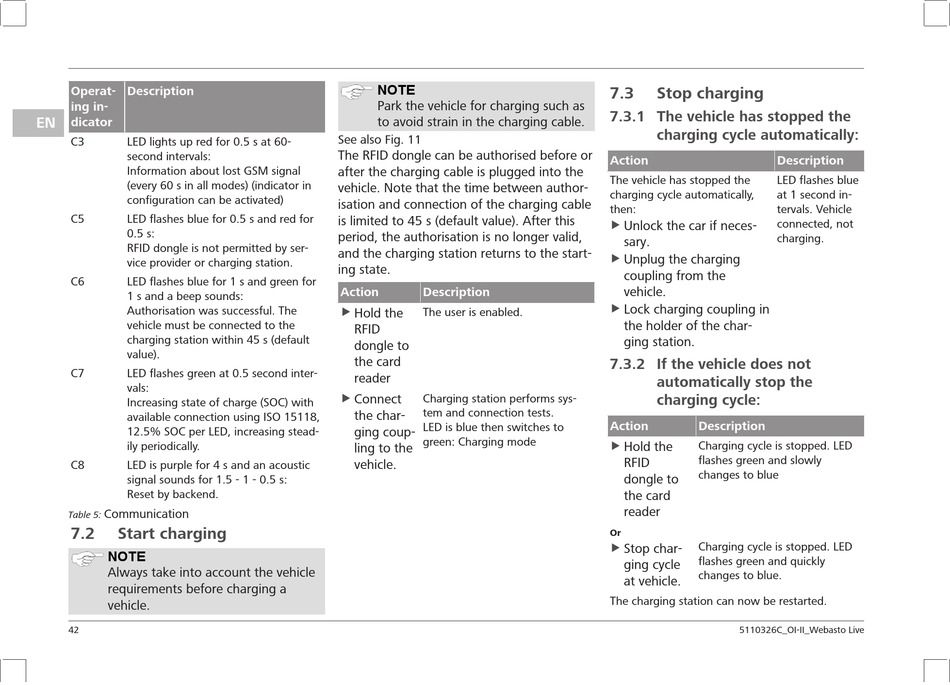

Operat- Description
ing in-
EN
dicator
C3 LED lights up red for 0.5 s at 60-
second intervals:
Information about lost GSM signal
(every 60 s in all modes) (indicator in
configuration can be activated)
C5 LED flashes blue for 0.5 s and red for
0.5 s:
RFID dongle is not permitted by ser-
vice provider or charging station.
C6 LED flashes blue for 1 s and green for
1 s and a beep sounds:
Authorisation was successful. The
vehicle must be connected to the
charging station within 45 s (default
value).
C7 LED flashes green at 0.5 second inter-
vals:
Increasing state of charge (SOC) with
available connection using ISO 15118,
12.5% SOC per LED, increasing stead-
ily periodically.
C8 LED is purple for 4 s and an acoustic
signal sounds for 1.5 - 1 - 0.5 s:
Reset by backend.
Communication
Table 5:
7.2

Start charging

NOTE
Always take into account the vehicle
requirements before charging a
vehicle.
42
NOTE
Park the vehicle for charging such as
to avoid strain in the charging cable.
See also Fig. 11
The RFID dongle can be authorised before or
after the charging cable is plugged into the
vehicle. Note that the time between author-
isation and connection of the charging cable
is limited to 45 s (default value). After this
period, the authorisation is no longer valid,
and the charging station returns to the start-
ing state.
Action Description
u Hold the The user is enabled.
RFID
dongle to
the card
reader
u Connect Charging station performs sys-
tem and connection tests.
the char-
LED is blue then switches to
ging coup-
green: Charging mode
ling to the
vehicle.
7.3

Stop charging

7.3.1 The vehicle has stopped the
charging cycle automatically:
Action Description
The vehicle has stopped the LED flashes blue
charging cycle automatically, at 1 second in-
then: tervals. Vehicle
connected, not
u Unlock the car if neces-
charging.
sary.
u Unplug the charging
coupling from the
vehicle.
u Lock charging coupling in
the holder of the char-
ging station.
7.3.2 If the vehicle does not
automatically stop the
charging cycle:
Action Description
Charging cycle is stopped. LED
u Hold the
flashes green and slowly
RFID
changes to blue
dongle to
the card
reader
Or
Charging cycle is stopped. LED
Stop char-
u
flashes green and quickly
ging cycle
changes to blue.
at vehicle.
The charging station can now be restarted.
