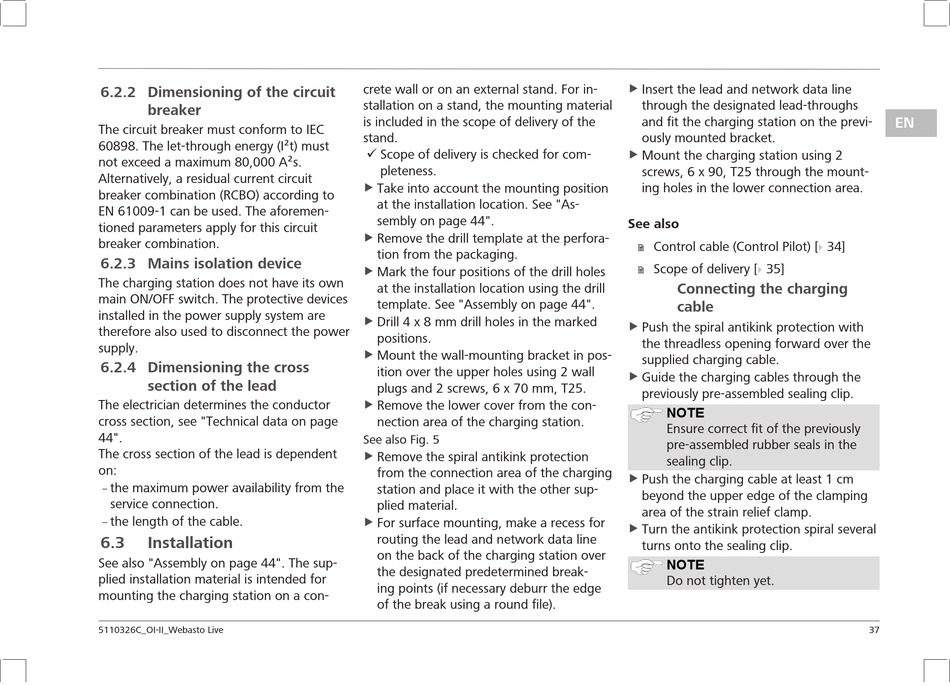

6.2.2 Dimensioning of the circuit
breaker
The circuit breaker must conform to IEC
60898. The let-through energy (I²t) must
not exceed a maximum 80,000 A²s.
Alternatively, a residual current circuit
breaker combination (RCBO) according to
EN 61009-1 can be used. The aforemen-
tioned parameters apply for this circuit
breaker combination.
6.2.3 Mains isolation device
The charging station does not have its own
main ON/OFF switch. The protective devices
installed in the power supply system are
therefore also used to disconnect the power
supply.
6.2.4 Dimensioning the cross
section of the lead
The electrician determines the conductor
cross section, see "Technical data on page
44".
The cross section of the lead is dependent
on:
the maximum power availability from the
service connection.
the length of the cable.
6.3

Installation

See also "Assembly on page 44". The sup-
plied installation material is intended for
mounting the charging station on a con-
5110326C_OI-II_Webasto Live
crete wall or on an external stand. For in-
stallation on a stand, the mounting material
is included in the scope of delivery of the
stand.
ü Scope of delivery is checked for com-
pleteness.
Take into account the mounting position
u
at the installation location. See "As-
sembly on page 44".
Remove the drill template at the perfora-
u
tion from the packaging.
u
Mark the four positions of the drill holes
at the installation location using the drill
template. See "Assembly on page 44".
u
Drill 4 x 8 mm drill holes in the marked
positions.
u
Mount the wall-mounting bracket in pos-
ition over the upper holes using 2 wall
plugs and 2 screws, 6 x 70 mm, T25.
u
Remove the lower cover from the con-
nection area of the charging station.
See also Fig. 5
u
Remove the spiral antikink protection
from the connection area of the charging
station and place it with the other sup-
plied material.
u
For surface mounting, make a recess for
routing the lead and network data line
on the back of the charging station over
the designated predetermined break-
ing points (if necessary deburr the edge
of the break using a round file).
Insert the lead and network data line
u
through the designated lead-throughs
and fit the charging station on the previ-
ously mounted bracket.
u
Mount the charging station using 2
screws, 6 x 90, T25 through the mount-
ing holes in the lower connection area.
See also
Control cable (Control Pilot) [
2
Scope of delivery [
 35]
2
}
Connecting the charging
cable
Push the spiral antikink protection with
u
the threadless opening forward over the
supplied charging cable.
Guide the charging cables through the
u
previously pre-assembled sealing clip.
NOTE
Ensure correct fit of the previously
pre-assembled rubber seals in the
sealing clip.
Push the charging cable at least 1 cm
u
beyond the upper edge of the clamping
area of the strain relief clamp.
Turn the antikink protection spiral several
u
turns onto the sealing clip.
NOTE
Do not tighten yet.
EN
 34]
}
37
