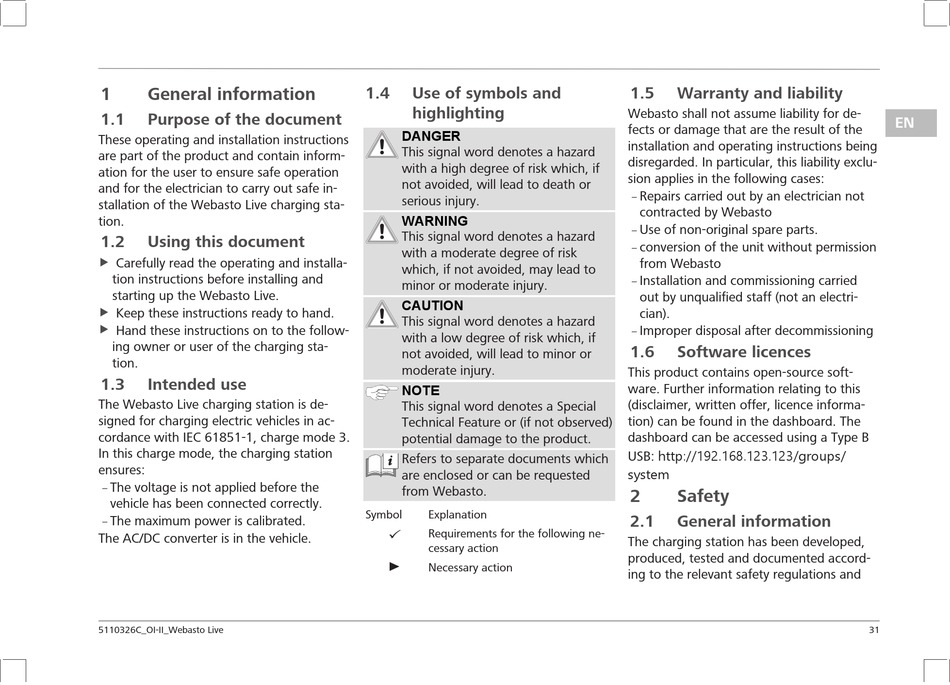

General Information; Purpose Of The Document; Using This Document; Intended Use - Webasto Live Einbauanweisung

1

General information

1.1

Purpose of the document

These operating and installation instructions
are part of the product and contain inform-
ation for the user to ensure safe operation
and for the electrician to carry out safe in-
stallation of the Webasto Live charging sta-
tion.
1.2

Using this document

u Carefully read the operating and installa-
tion instructions before installing and
starting up the Webasto Live.
u Keep these instructions ready to hand.
u Hand these instructions on to the follow-
ing owner or user of the charging sta-
tion.
1.3

Intended use

The Webasto Live charging station is de-
signed for charging electric vehicles in ac-
cordance with IEC 61851-1, charge mode 3.
In this charge mode, the charging station
ensures:
The voltage is not applied before the
–
vehicle has been connected correctly.
The maximum power is calibrated.
–
The AC/DC converter is in the vehicle.
5110326C_OI-II_Webasto Live
1.4 Use of symbols and
highlighting
DANGER
This signal word denotes a hazard
with a high degree of risk which, if
not avoided, will lead to death or
serious injury.
WARNING
This signal word denotes a hazard
with a moderate degree of risk
which, if not avoided, may lead to
minor or moderate injury.
CAUTION
This signal word denotes a hazard
with a low degree of risk which, if
not avoided, will lead to minor or
moderate injury.
NOTE
This signal word denotes a Special
Technical Feature or (if not observed)
potential damage to the product.
Refers to separate documents which
are enclosed or can be requested
from Webasto.
Symbol Explanation
Requirements for the following ne-
cessary action
Necessary action
1.5

Warranty and liability

Webasto shall not assume liability for de-
fects or damage that are the result of the
installation and operating instructions being
disregarded. In particular, this liability exclu-
sion applies in the following cases:
Repairs carried out by an electrician not
–
contracted by Webasto
Use of non-original spare parts.
–
conversion of the unit without permission
–
from Webasto
Installation and commissioning carried
–
out by unqualified staff (not an electri-
cian).
Improper disposal after decommissioning
–
1.6

Software licences

This product contains open-source soft-
ware. Further information relating to this
(disclaimer, written offer, licence informa-
tion) can be found in the dashboard. The
dashboard can be accessed using a Type B
USB: http://192.168.123.123/groups/
system
2

Safety

2.1 General information
The charging station has been developed,
produced, tested and documented accord-
ing to the relevant safety regulations and
