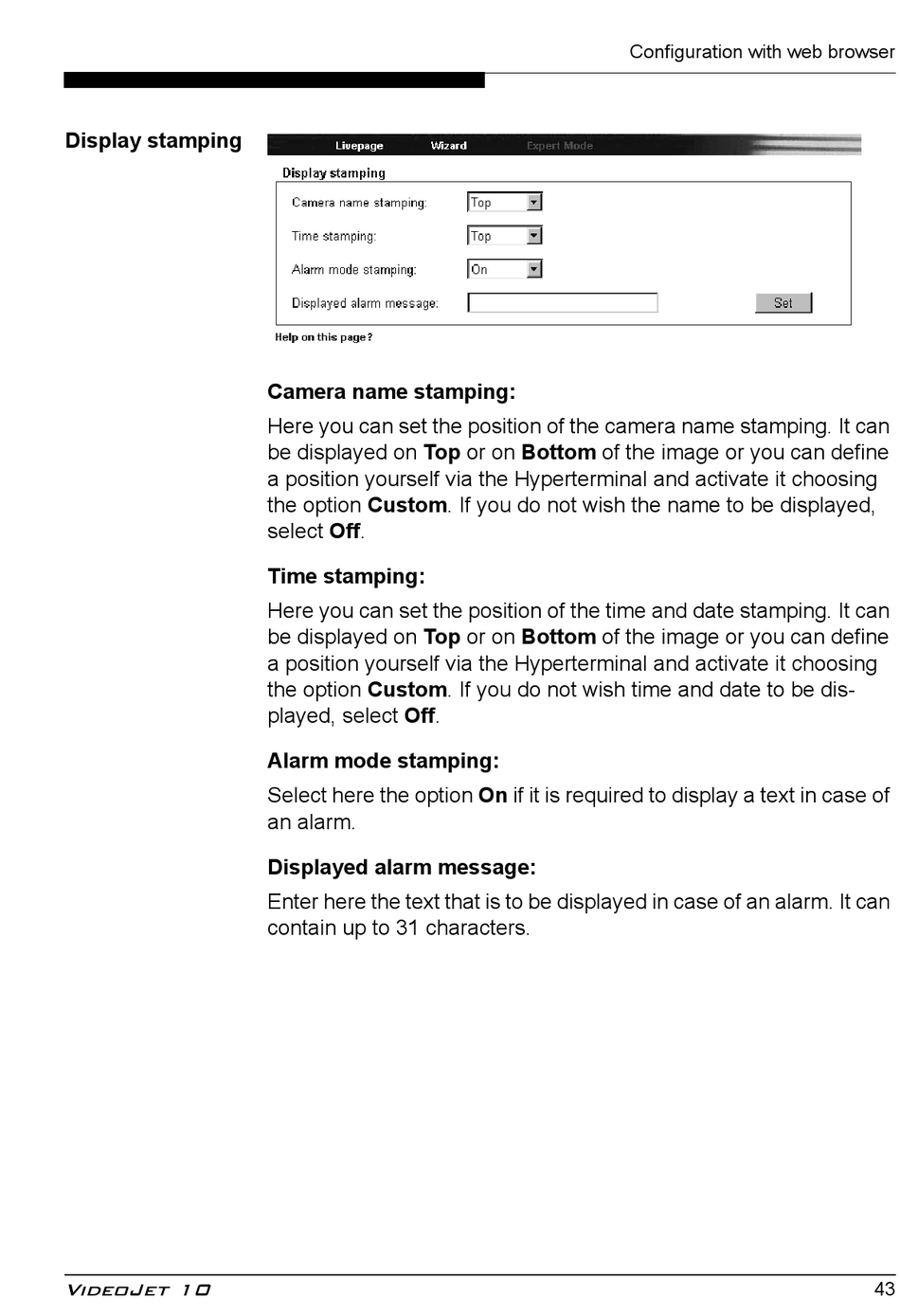

Display stamping
VideoJet 10
Camera name stamping:
Here you can set the position of the camera name stamping. It can
be displayed on Top or on Bottom of the image or you can define
a position yourself via the Hyperterminal and activate it choosing
the option Custom. If you do not wish the name to be displayed,
select Off.
Time stamping:
Here you can set the position of the time and date stamping. It can
be displayed on Top or on Bottom of the image or you can define
a position yourself via the Hyperterminal and activate it choosing
the option Custom. If you do not wish time and date to be dis-
played, select Off.
Alarm mode stamping:
Select here the option On if it is required to display a text in case of
an alarm.
Displayed alarm message:
Enter here the text that is to be displayed in case of an alarm. It can
contain up to 31 characters.
Configuration with web browser
43
