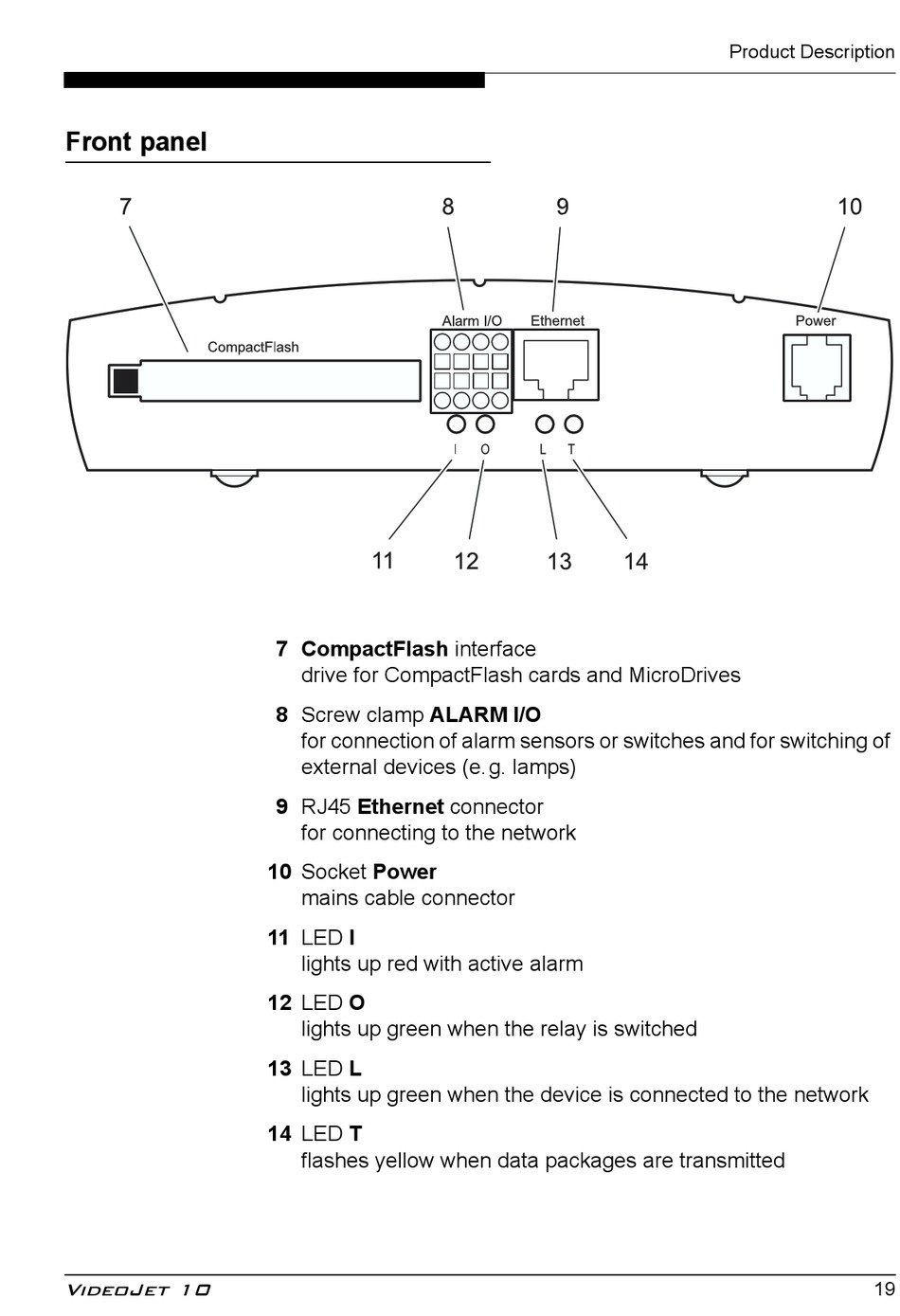

Front panel

VideoJet 10
7 CompactFlash interface
drive for CompactFlash cards and MicroDrives
8 Screw clamp ALARM I/O
for connection of alarm sensors or switches and for switching of
external devices (e.g. lamps)
9 RJ45 Ethernet connector
for connecting to the network
10 Socket Power
mains cable connector
11 LED I
lights up red with active alarm
12 LED O
lights up green when the relay is switched
13 LED L
lights up green when the device is connected to the network
14 LED T
flashes yellow when data packages are transmitted
