Synchronization In Multichannel Systems - MICRO-EPSILON capaNCDT 6100 Betriebsanleitung

Operation
5.5

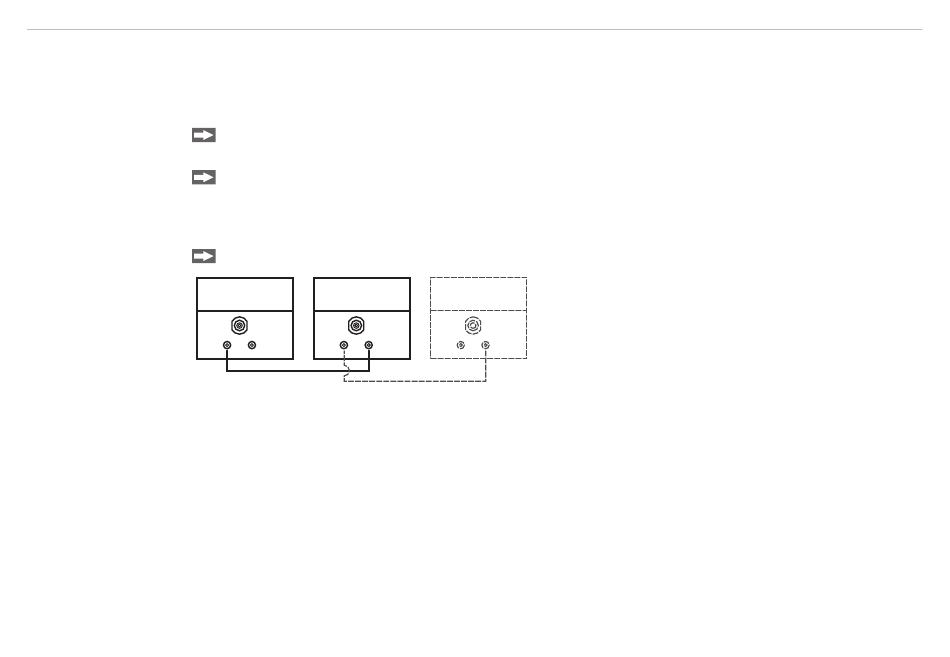

Several measuring systems in the capaNCDT 6100 series can be operated simultaneously as multichannel
systems.
Synchronization of the measuring systems avoids interference between the sensors:
-
-
Controller 1
SYN
OUT
Fig. 9
i
Bending radius SC30:
-
-
capaNCDT 6100

Synchronization in Multichannel Systems

Plug SC30 synchronization cable (accessory) in the SYN OUT (synchronization output) socket in cont-
roller 1.
Plug the other end on the cable into the SYN IN (synchronization input) in controller 2.
The oscillator of controller 2 switches automatically to synchronization mode, i.e. it acts as slave to the
master oscillator in controller 1.
The influence of unsufficient grounded targets will be excepted.
Synchronise several measuring systems with SC30 cable if necessary.
Controller 2
SYN SYN
SYN
IN IN
OUT
SC30
Synchronization in multichannel systems
Automatic synchronization, each controller can work as master.
30 mm (one time)
60 mm (alternating)
Controller 3
SC30
