MICRO-EPSILON capaNCDT 6100 Betriebsanleitung Seite 47

Installation and Assembly

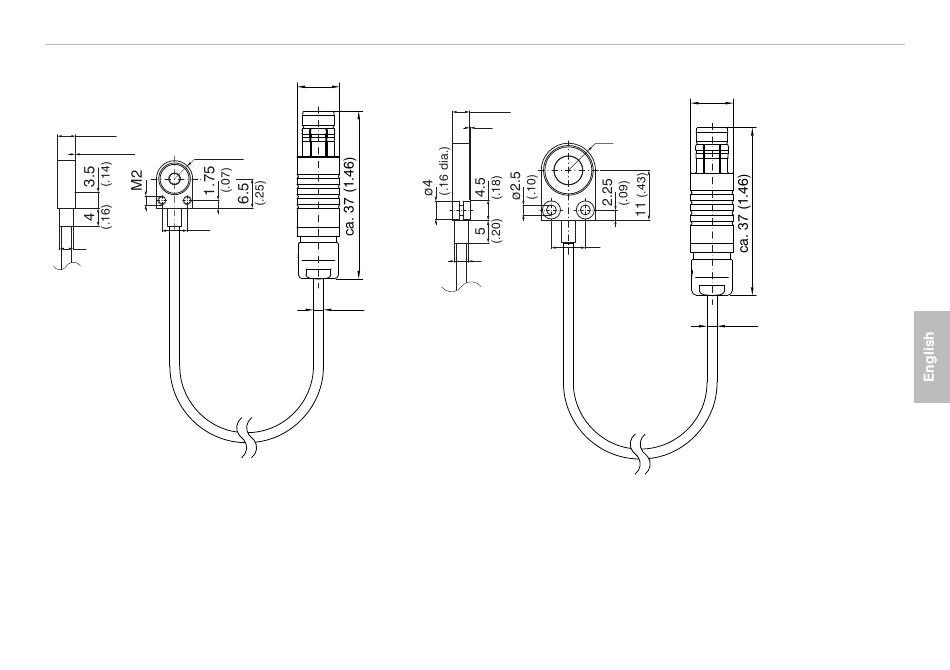

CSH02FL, CSH05FL
4
(.16)
0.1
(.003)
R4
(.16)
5.5
ø3 (.22)
(.12 dia.)
Dimensions in mm (inches), not to scale
capaNCDT 6100
ca. 9.4 (.37)
CSH1FL, CSH1.2FL
4
0.1
(.003)
ø3
(.12 dia.)
ø2.2
(.09 dia.)
(.16)
R6
(.24)
7.5
(.29)
ca. 9.4 (.37)
ø2.2
(.09 dia.)
Page 47
