MICRO-EPSILON capaNCDT 6100 Betriebsanleitung Seite 45

Installation and Assembly
ca. 9.4 (.37)
ca. 9.4 (.37)
CSH02, CSH05 CSH1, CSH1.2
ø12g6 (.473 dia.)
ø8g6 (.315 dia.)
ø7.5
ø11.5
(.30 dia.)
(.45 dia.)
ø2.2 (.09 dia.)
ø2.2 (.09 dia.)

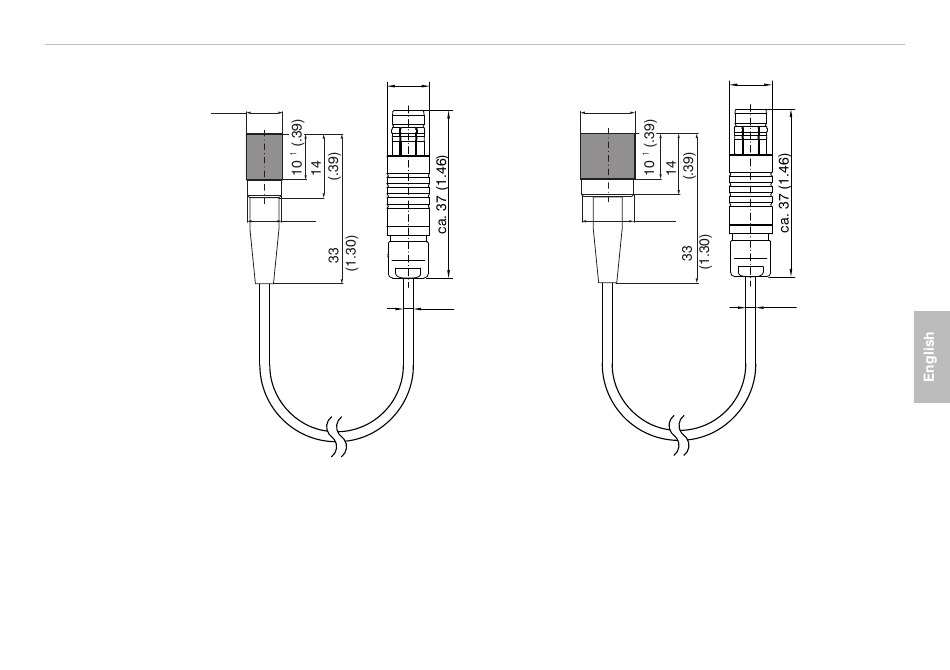

Dimensions in mm (inches), not to scale
capaNCDT 6100 Page 45
