Circumferential Clamping; Dimensional Drawings Sensors - MICRO-EPSILON capaNCDT 6100 Betriebsanleitung

Installation and Assembly
4.2.2
This sensor mounting option offers maximum reliability because the sensor is clamped around its cylindrical
housing. It is absolutely necessary in difficult installation environments, e.g. on machines, production plants
etc.
Fig. 4
4.2.3
ø6f7 (.236 dia.)
Dimensions in mm (inches), not to scale
1) Adjustment area for radial point respectively circumferential clamping
capaNCDT 6100

Circumferential Clamping

Circumferential clamping

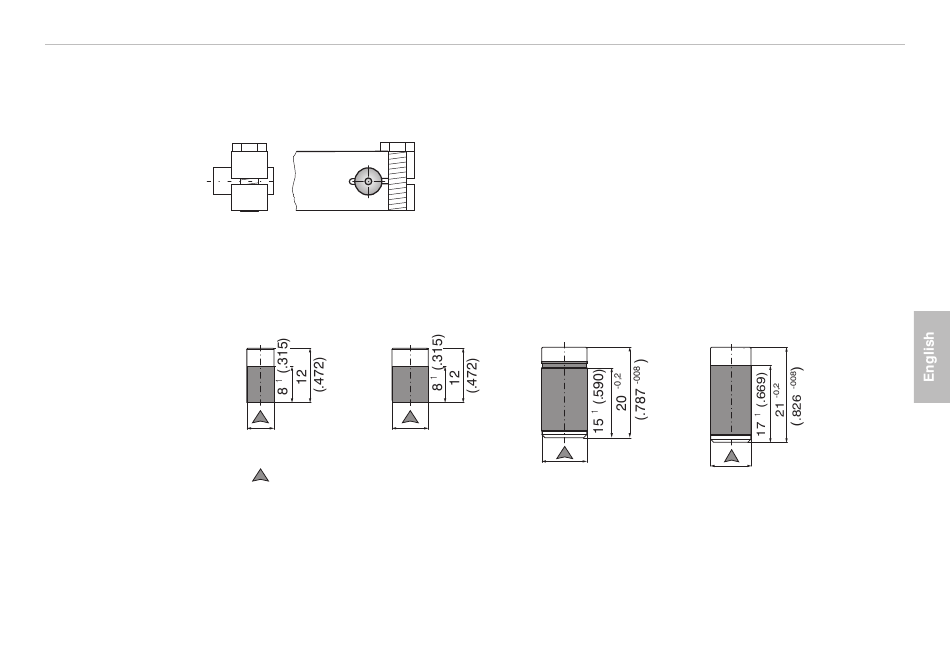

Dimensional Drawings Sensors

CS02 CS05
ø8f7 (.314 dia.)
Connector side
Mounting with
clamping ring
CS1HP
ø10f7 (.394 dia.)
CS1
ø10f7 (.394 dia.)
Page 43
