en 30 | EPS 200 | Product description
3.5

Description of unit

3.5.1

Front view

10
9
8
7

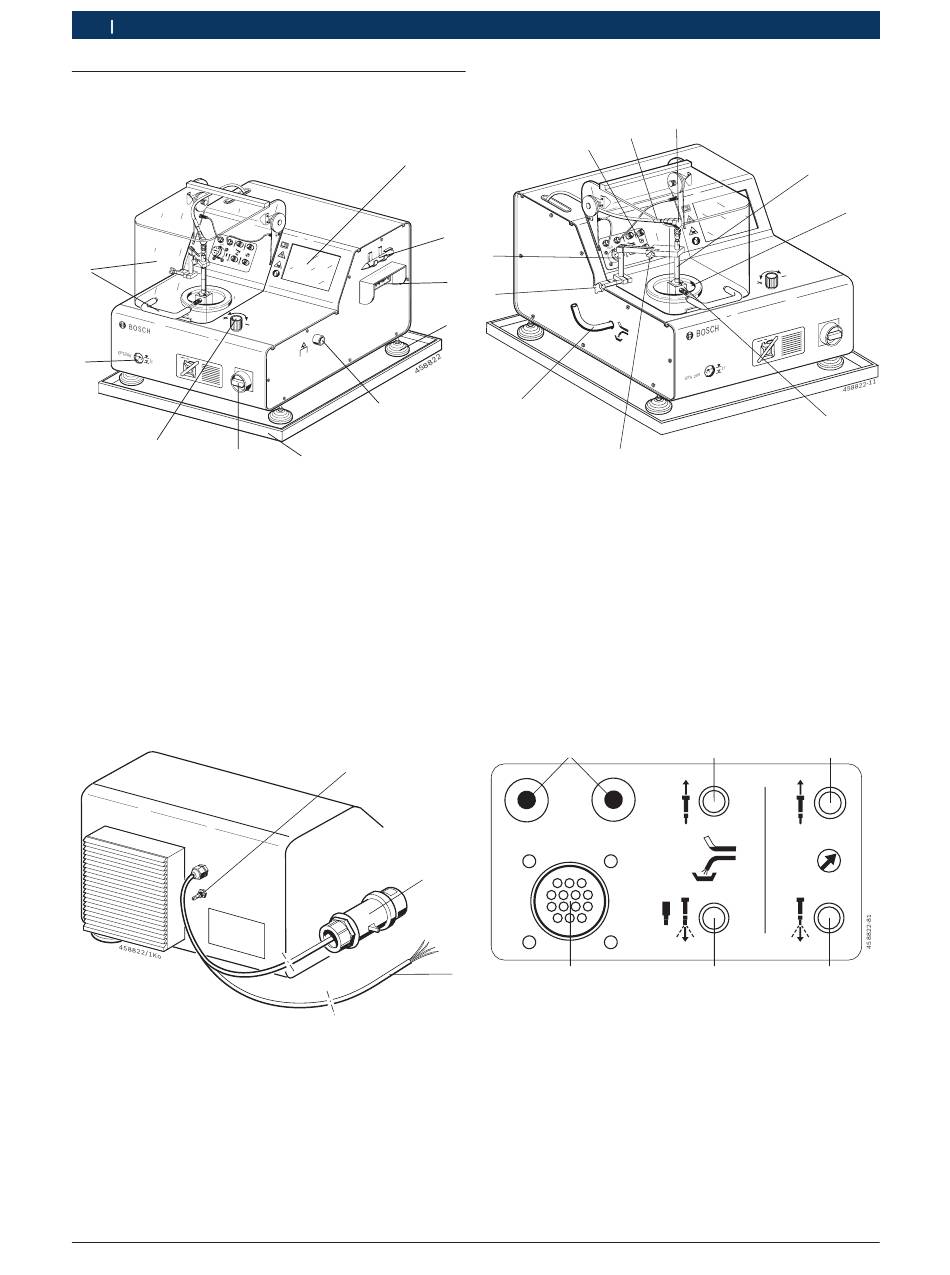

Fig. 1: Front view
1 LCD display with touchscreen
2 Stylus
3 PC connections
4 Foot (height adjustable)
5 Connection for external extractor
6 Oil collecting trough
7 Master switch (with emergency stop function)
8 Extraction controller for internal extractor
9 Oil level display
10 Protective cover with handle
3.5.2

Rear view

Fig. 2: Rear view
1 Connection for compressed air
2 Connector for three-phase current (400 V)
3 Electrical connecting cable for three-phase current (200 V)
|
1 689 989 000 2013-05-02
1
2
3
4
5
6
1
2
3
3.5.3 Components for testing
9
8
7
6
5
4
Fig. 3: Components for testing
1 CRI/CRIN or DHK/UI
2 Jet chamber
3 Injection chamber
4 Clamping screw for securing the CRI/CRIN or DHK/UI
5 Flushing drain
6 Clamping screw for tool holder height adjustment
7 Tool holder

8 Connector panel

9 High pressure connecting line for test oil supply
10 Connection adapter for CRI/CRIN and DHK/UI
3.5.4 Connector panel
1
X20
6
Fig. 4: Connector panel
1 Connecting cables for emergency shutdown
2 Flushing connection for CRI/CRIN (return)
3 Test connection for CRI/CRIN (return)
4 Test connection for CRI/CRIN (injection)
5 Flushing connection and test connection for DHK/UI;
Flushing connection for CRI/CRIN (injection)
6 Electrical connecting socket for CRI/CRIN
The flushing connection for CRI/CRIN (return and injection)
*)
currently has no function. It is designed for any later
enhancements of the system.
10
1
2
3
2 3
5 4
*)
*)
