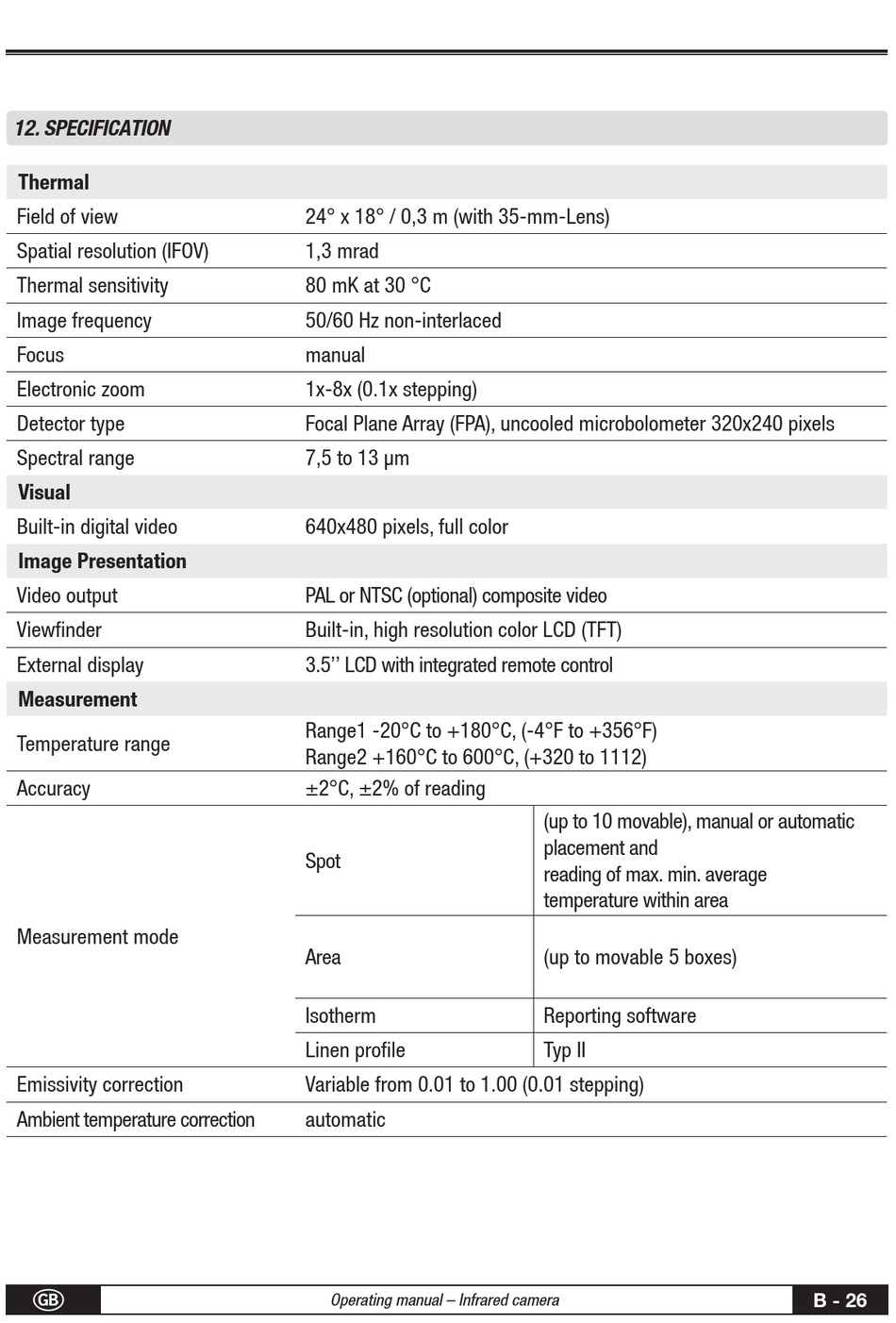

12. sPecIFIcatIOn
Thermal
Field of view
Spatial resolution (IFOV)
Thermal sensitivity
Image frequency
Focus
Electronic zoom
Detector type
Spectral range
Visual
Built-in digital video
Image Presentation
Video output
Viewfinder
External display
Measurement
Temperature range
Accuracy
Measurement mode
Emissivity correction
Ambient temperature correction
G
24° x 18° / 0,3 m (with 35-mm-Lens)
1,3 mrad
80 mK at 30 °C
50/60 Hz non-interlaced
manual
1x-8x (0.1x stepping)
Focal Plane Array (FPA), uncooled microbolometer 320x240 pixels
7,5 to 13 µm
640x480 pixels, full color
PAL or NTSC (optional) composite video
Built-in, high resolution color LCD (TFT)
3.5'' LCD with integrated remote control
Range1 -20°C to +180°C, (-4°F to +356°F)
Range2 +160°C to 600°C, (+320 to 1112)
±2°C, ±2% of reading
Spot
Area
Isotherm
Linen profile
Variable from 0.01 to 1.00 (0.01 stepping)
automatic
Operating manual – Infrared camera
(up to 10 movable), manual or automatic
placement and
reading of max. min. average
temperature within area
(up to movable 5 boxes)
Reporting software
Typ II
B - 26
