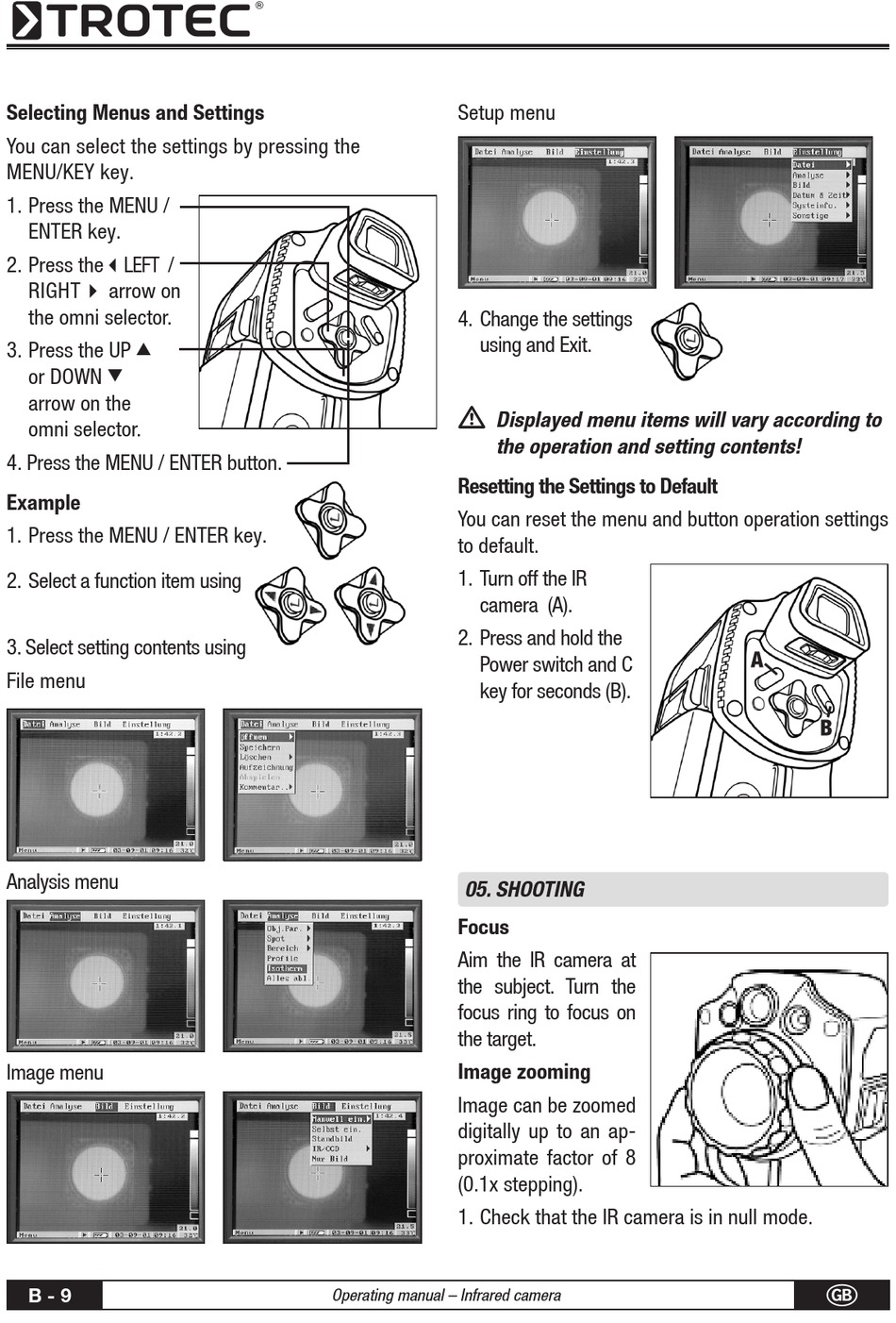

Selecting Menus and Settings

You can select the settings by pressing the
MENU/KEY key.
1. Press the MENU /
ENTER key.
2. Press the3LEFT /
RIGHT4 arrow on
the omni selector.
3. Press the UP
s
or DOWN
t
arrow on the
omni selector.
4. Press the MENU / ENTER button.
Example
1. Press the MENU / ENTER key.
2. Select a function item using
3. Select setting contents using
File menu
Analysis menu
Image menu
B - 9
Setup menu
4. Change the settings
using and Exit.
m
Displayed menu items will vary according to
the operation and setting contents!

Resetting the Settings to Default

You can reset the menu and button operation settings
to default.
1. Turn off the IR
camera (A).
2. Press and hold the
Power switch and C
key for seconds (B).

05. shOOtInG

Focus

Aim the IR camera at
the subject. Turn the
focus ring to focus on
the target.

Image zooming

Image can be zoomed
digitally up to an ap-
proximate factor of 8
(0.1x stepping).
1. Check that the IR camera is in null mode.
Operating manual – Infrared camera
