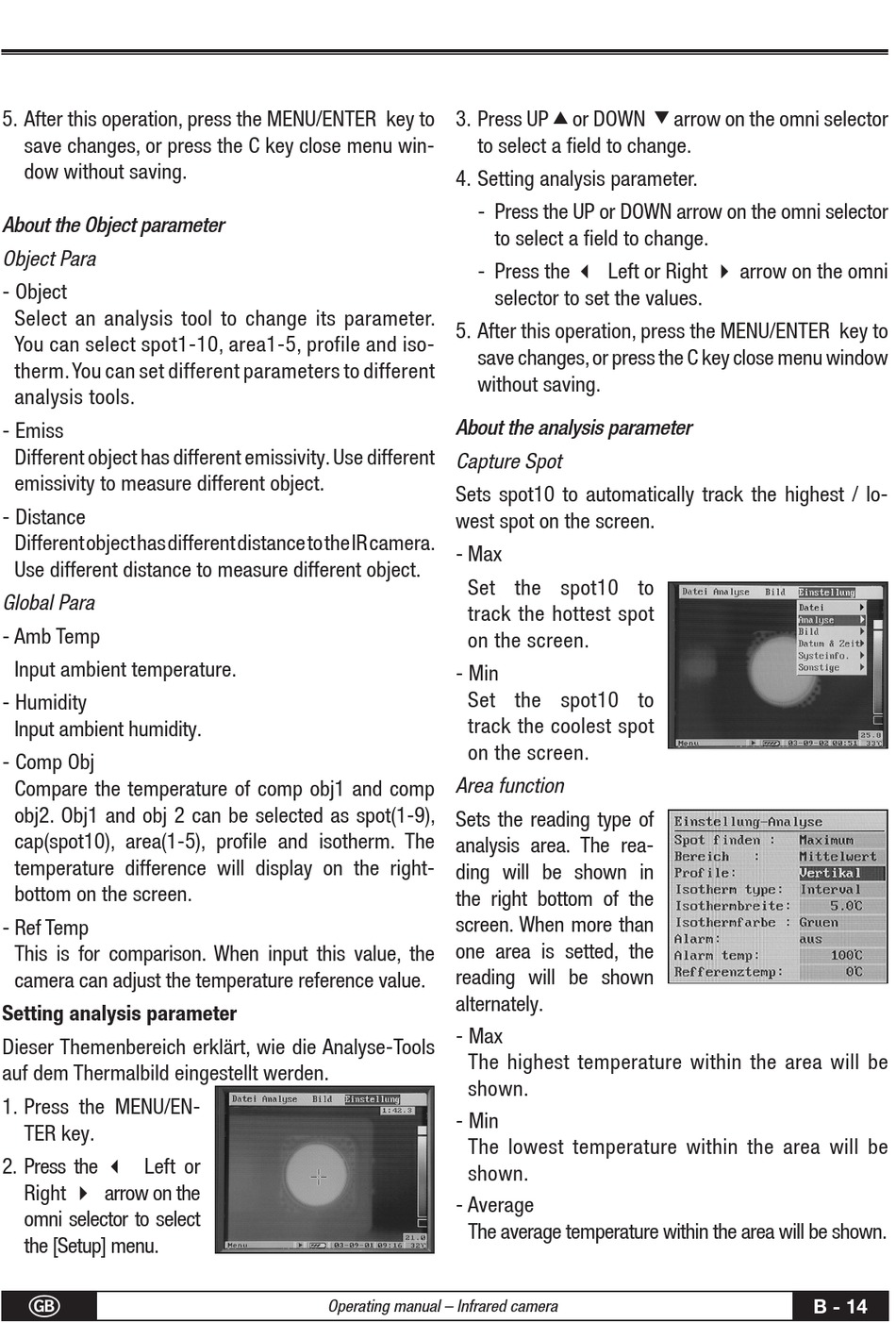

5. After this operation, press the MENU/ENTER key to
save changes, or press the C key close menu win-
dow without saving.
About the Object parameter
Object Para
- Object
Select an analysis tool to change its parameter.
You can select spot1-10, area1-5, profile and iso-
therm. You can set different parameters to different
analysis tools.
- Emiss
Different object has different emissivity. Use different
emissivity to measure different object.
- Distance
Different object has different distance to the IR camera.
Use different distance to measure different object.
Global Para
- Amb Temp
Input ambient temperature.
- Humidity
Input ambient humidity.
- Comp Obj
Compare the temperature of comp obj1 and comp
obj2. Obj1 and obj 2 can be selected as spot(1-9),
cap(spot10), area(1-5), profile and isotherm. The
temperature difference will display on the right-
bottom on the screen.
- Ref Temp
This is for comparison. When input this value, the
camera can adjust the temperature reference value.
Setting analysis parameter
Dieser Themenbereich erklärt, wie die Analyse-Tools
auf dem Thermalbild eingestellt werden.
1. Press the MENU/EN-
TER key.
2. Press the 3 Left or
Right 4 arrow on the
omni selector to select
the [Setup] menu.
G
3. Press UP
to select a field to change.
4. Setting analysis parameter.
- Press the UP or DOWN arrow on the omni selector
to select a field to change.
- Press the 3 Left or Right 4 arrow on the omni
selector to set the values.
5. After this operation, press the MENU/ENTER key to
save changes, or press the C key close menu window
without saving.
About the analysis parameter
Capture Spot
Sets spot10 to automatically track the highest / lo-
west spot on the screen.
- Max
Set the spot10 to
track the hottest spot
on the screen.
- Min
Set the spot10 to
track the coolest spot
on the screen.
Area function
Sets the reading type of
analysis area. The rea-
ding will be shown in
the right bottom of the
screen. When more than
one area is setted, the
reading will be shown
alternately.
- Max
The highest temperature within the area will be
shown.
- Min
The lowest temperature within the area will be
shown.
- Average
The average temperature within the area will be shown.
Operating manual – Infrared camera
or DOWN arrow on the omni selector
s t
B - 14
