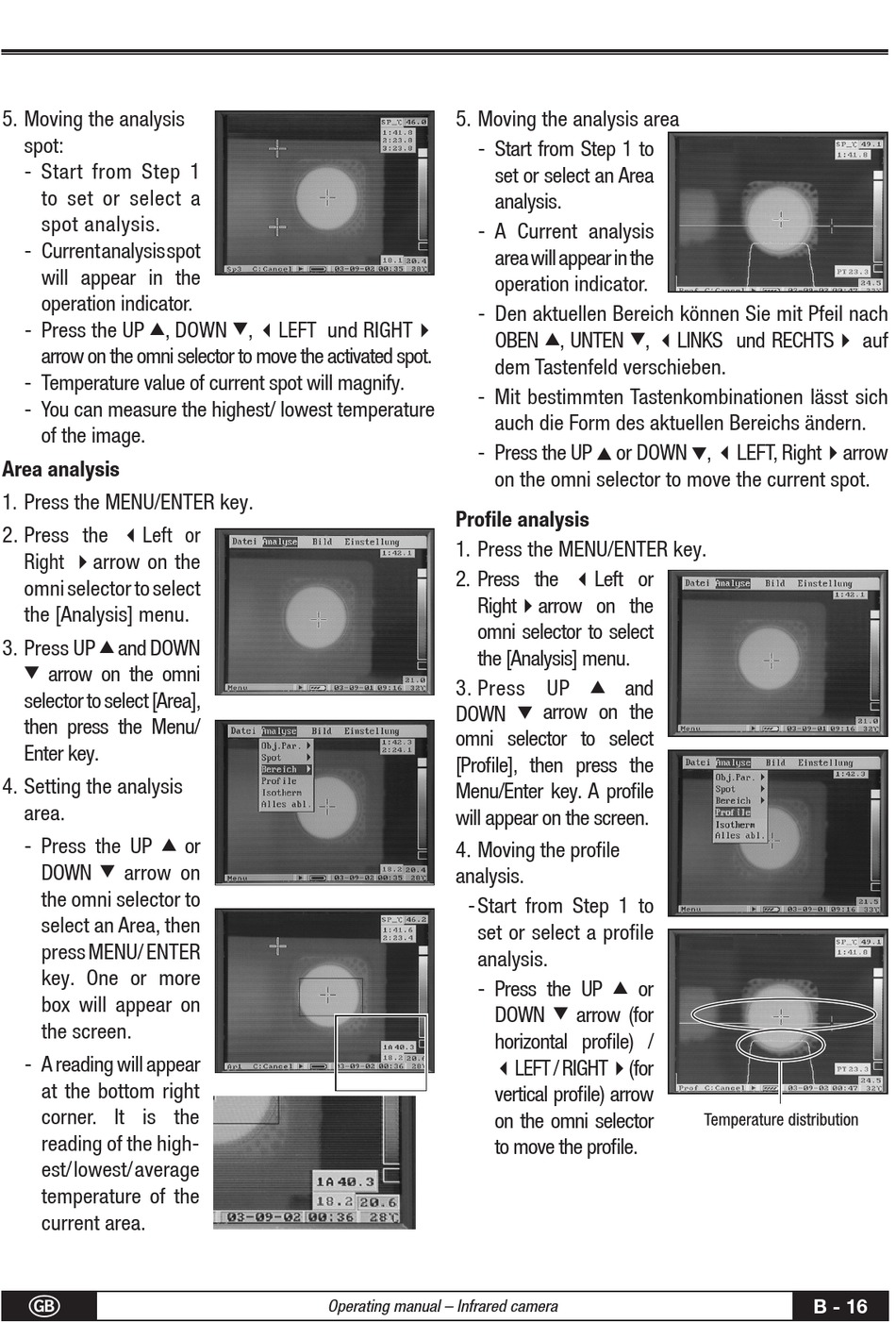

5. Moving the analysis
spot:
- Start from Step 1
to set or select a
spot analysis.
- Current analysis spot
will appear in the
operation indicator.
- Press the UP , DOWN
s
arrow on the omni selector to move the activated spot.
- Temperature value of current spot will magnify.
- You can measure the highest/ lowest temperature
of the image.

Area analysis

1. Press the MENU/ENTER key.
2. Press the 3Left or
Right 4arrow on the
omni selector to select
the [Analysis] menu.
3. Press UP and DOWN
s
arrow on the omni
t
selector to select [Area],
then press the Menu/
Enter key.
4. Setting the analysis
area.
- Press the UP
s
DOWN arrow on
t
the omni selector to
select an Area, then
press MENU/ ENTER
key. One or more
box will appear on
the screen.
- A reading will appear
at the bottom right
corner. It is the
reading of the high-
est/ lowest/ average
temperature of the
current area.
G
, 3LEFT und RIGHT4
t
or
Operating manual – Infrared camera
5. Moving the analysis area
- Start from Step 1 to
set or select an Area
analysis.
- A Current analysis
area will appear in the
operation indicator.
- Den aktuellen Bereich können Sie mit Pfeil nach
OBEN , UNTEN
s
dem Tastenfeld verschieben.
- Mit bestimmten Tastenkombinationen lässt sich
auch die Form des aktuellen Bereichs ändern.
- Press the UP or DOWN
s
on the omni selector to move the current spot.
Profile analysis
1. Press the MENU/ENTER key.
2. Press the 3Left or
Right4arrow on the
omni selector to select
the [Analysis] menu.
3. Press UP and
s
arrow on the
DOWN
t
omni selector to select
[Profile], then press the
Menu/Enter key. A profile
will appear on the screen.
4. Moving the profile
analysis.
- Start from Step 1 to
set or select a profile
analysis.
- Press the UP
s
DOWN arrow (for
t
horizontal profile) /
3LEFT / RIGHT4(for
vertical profile) arrow
on the omni selector
to move the profile.
, 3LINKS und RECHTS4 auf
t
, 3LEFT, Right4arrow
t
or
