3. Press UP and
s
arrow on
DOWN
t
the omni selector to
select [Image Only],
then press MENU/
ENTER key.
4. Press any key to
cancel the image only
mode.
Using the illuminator
The integrated illuminator can be use to illuminate the
dark areas. You can always produce clear, high-quality
visual images to do document of your inspections.
1. Press the MENU/ENTER key.
2. Press the 3 Left or
Right 4 arrow on the
omni selector to select
the [Setup] menu.
3. Press the Up
s
Down arrow on the
t
omni selector to select
the [Other], then press
the MENU/ENTER key.
4. Press the Up
s
Down arrow on the
t
omni selector to select
the [Illuminator].
5. Press the 3LEFT or
RIGHT 4 arrow on the
omni selector to enable
or disable the integra-
ted illuminator.
m
If you use the optional lens when the shoo-
ting lamp is attached, a portion of the visual
image will be blocked by the optional lens
and will appear dark.
B - 11
or
or

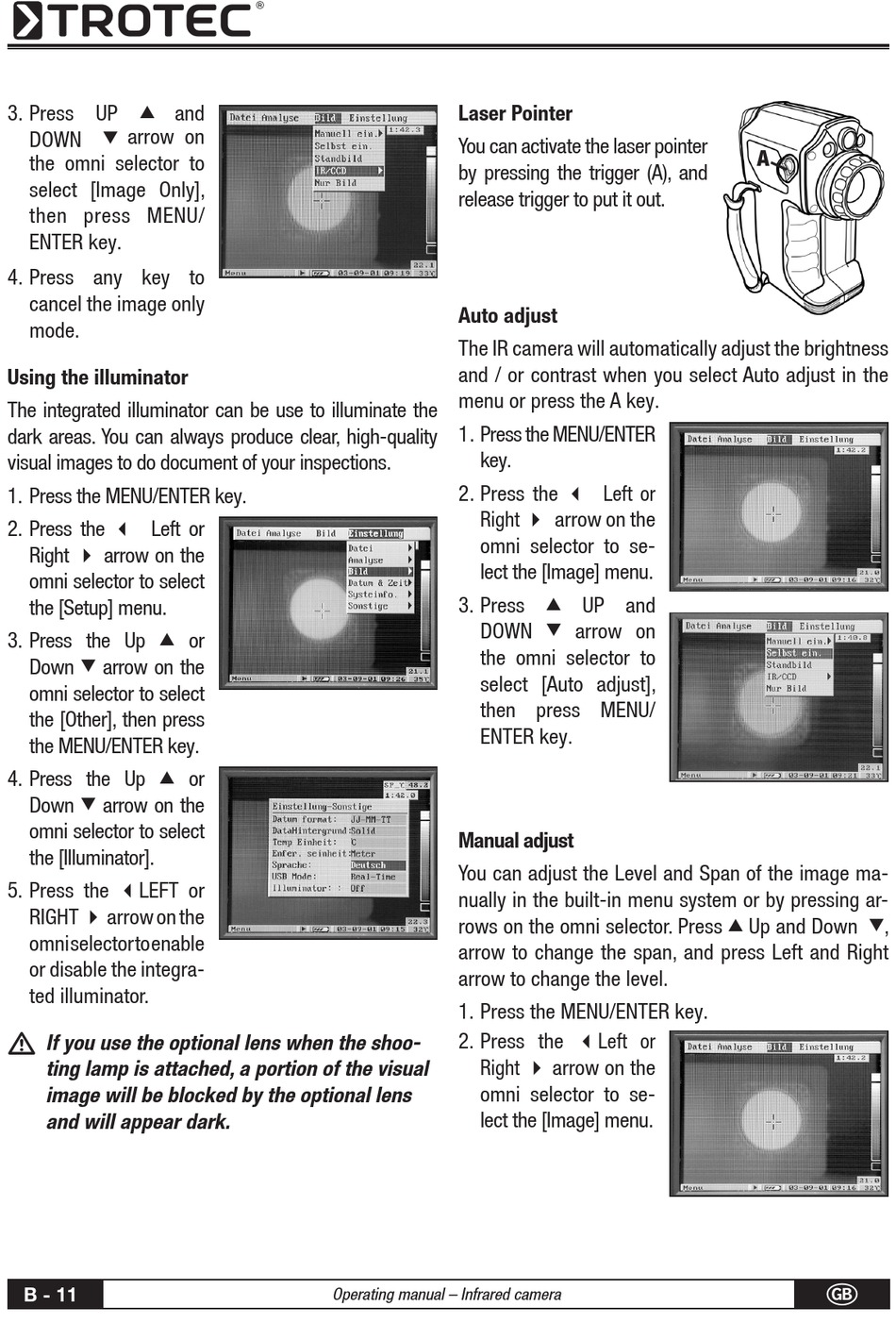

Operating manual – Infrared camera

Laser Pointer

You can activate the laser pointer
by pressing the trigger (A), and
release trigger to put it out.

Auto adjust

The IR camera will automatically adjust the brightness
and / or contrast when you select Auto adjust in the
menu or press the A key.
1. Press the MENU/ENTER
key.
2. Press the 3 Left or
Right 4 arrow on the
omni selector to se-
lect the [Image] menu.
3. Press UP and
s
DOWN arrow on
t
the omni selector to
select [Auto adjust],
then press MENU/
ENTER key.

Manual adjust

You can adjust the Level and Span of the image ma-
nually in the built-in menu system or by pressing ar-
rows on the omni selector. Press
arrow to change the span, and press Left and Right
arrow to change the level.
1. Press the MENU/ENTER key.
2. Press the 3Left or
Right 4 arrow on the
omni selector to se-
lect the [Image] menu.
Up and Down ,
s t
G
