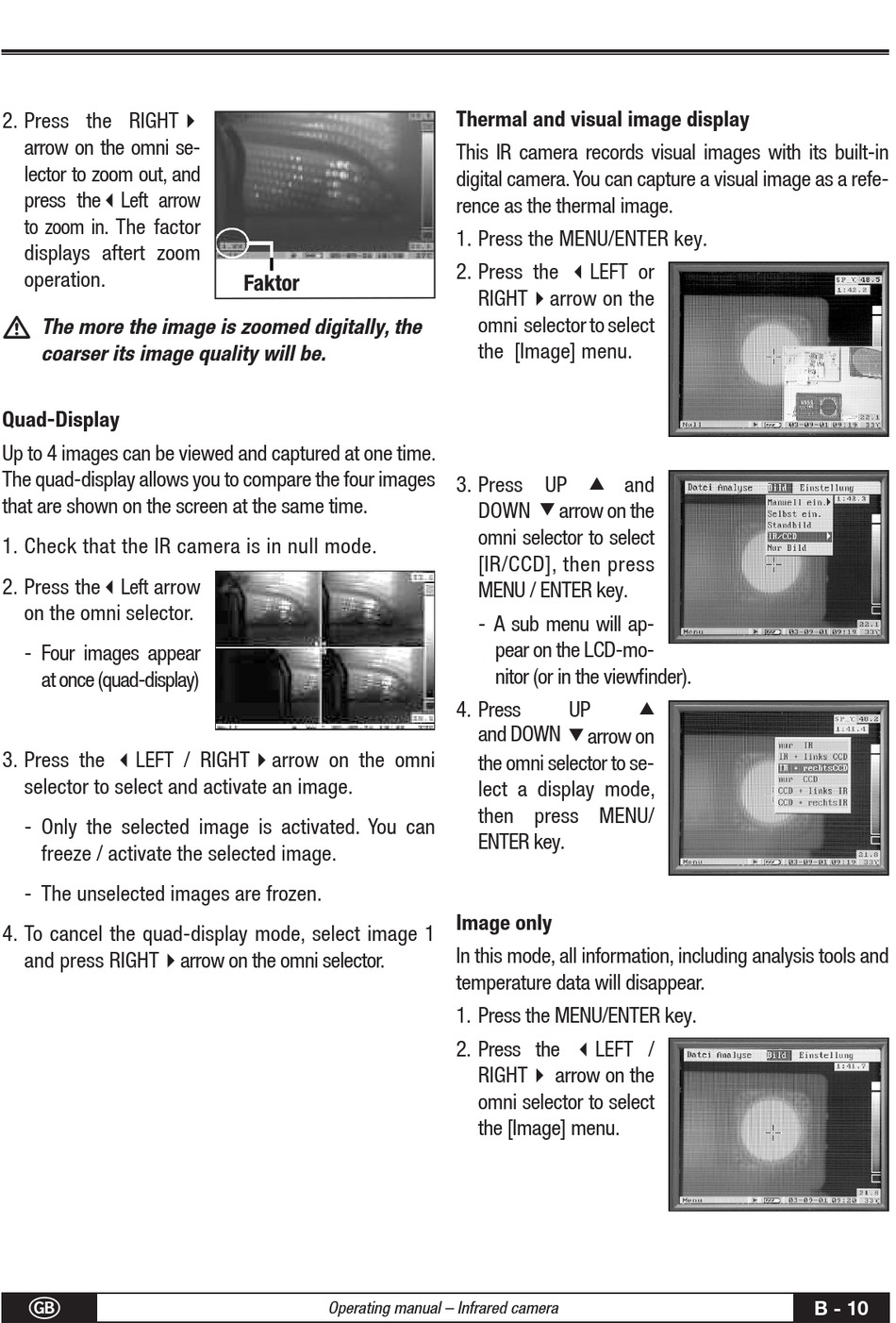

2. Press the RIGHT4
arrow on the omni se-
lector to zoom out, and
press the3Left arrow
to zoom in. The factor
displays aftert zoom
operation.
m
the more the image is zoomed digitally, the
coarser its image quality will be.
Quad-Display
Up to 4 images can be viewed and captured at one time.
The quad-display allows you to compare the four images
that are shown on the screen at the same time.
1. Check that the IR camera is in null mode.
2. Press the3Left arrow
on the omni selector.
- Four images appear
at once (quad-display)
3. Press the 3LEFT / RIGHT4arrow on the omni
selector to select and activate an image.
- Only the selected image is activated. You can
freeze / activate the selected image.
- The unselected images are frozen.
4. To cancel the quad-display mode, select image 1
and press RIGHT4arrow on the omni selector.
G
Thermal and visual image display
This IR camera records visual images with its built-in
digital camera. You can capture a visual image as a refe-
rence as the thermal image.
1. Press the MENU/ENTER key.
2. Press the 3LEFT or
RIGHT4arrow on the
omni selector to select
the [Image] menu.
3. Press UP
DOWN
omni selector to select
[IR/CCD], then press
MENU / ENTER key.
- A sub menu will ap-
pear on the LCD-mo-
nitor (or in the viewfinder).
4. Press
and DOWN
the omni selector to se-
lect a display mode,
then press MENU/
ENTER key.

Image only

In this mode, all information, including analysis tools and
temperature data will disappear.
1. Press the MENU/ENTER key.
2. Press the 3LEFT /
RIGHT4 arrow on the
omni selector to select
the [Image] menu.
Operating manual – Infrared camera
and
s
arrow on the
t
UP
s
arrow on
t
B - 10
