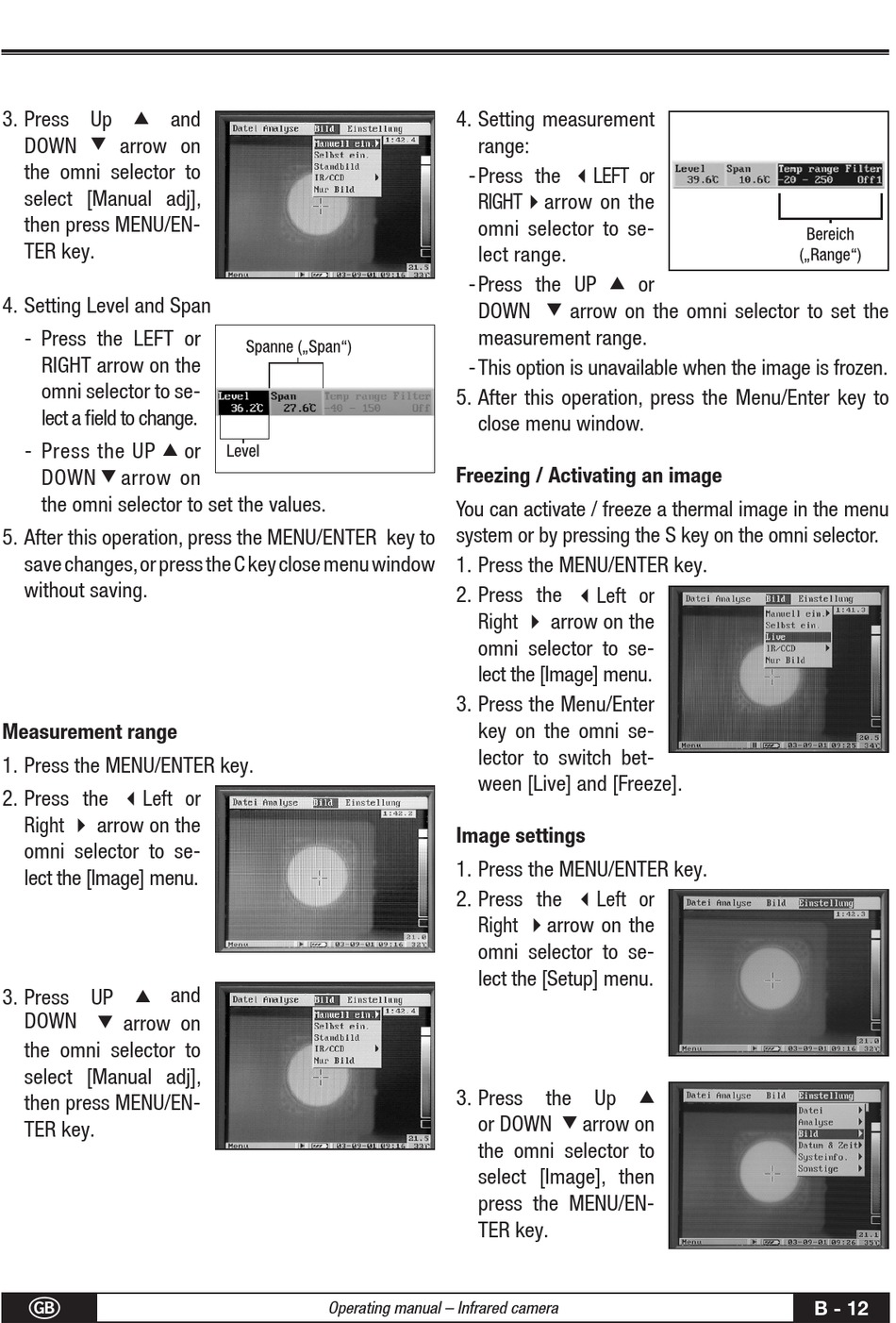

3. Press Up and
s
DOWN arrow on
t
the omni selector to
select [Manual adj],
then press MENU/EN-
TER key.
4. Setting Level and Span
- Press the LEFT or
RIGHT arrow on the
omni selector to se-
lect a field to change.
- Press the UP
s
DOWN arrow on
t
the omni selector to set the values.
5. After this operation, press the MENU/ENTER key to
save changes, or press the C key close menu window
without saving.

Measurement range

1. Press the MENU/ENTER key.
2. Press the 3Left or
Right 4 arrow on the
omni selector to se-
lect the [Image] menu.
and
3. Press UP
s
DOWN
arrow on
t
the omni selector to
select [Manual adj],
then press MENU/EN-
TER key.
G
or
Operating manual – Infrared camera
4. Setting measurement
range:
- Press the 3LEFT or
RIGHT4arrow on the
omni selector to se-
lect range.
- Press the UP
s
DOWN arrow on the omni selector to set the
t
measurement range.
- This option is unavailable when the image is frozen.
5. After this operation, press the Menu/Enter key to
close menu window.

Freezing / Activating an image

You can activate / freeze a thermal image in the menu
system or by pressing the S key on the omni selector.
1. Press the MENU/ENTER key.
2. Press the 3Left or
Right 4 arrow on the
omni selector to se-
lect the [Image] menu.
3. Press the Menu/Enter
key on the omni se-
lector to switch bet-
ween [Live] and [Freeze].

Image settings

1. Press the MENU/ENTER key.
2. Press the 3Left or
Right 4arrow on the
omni selector to se-
lect the [Setup] menu.
3. Press the Up
or DOWN arrow on
t
the omni selector to
select [Image], then
press the MENU/EN-
TER key.
or
s
