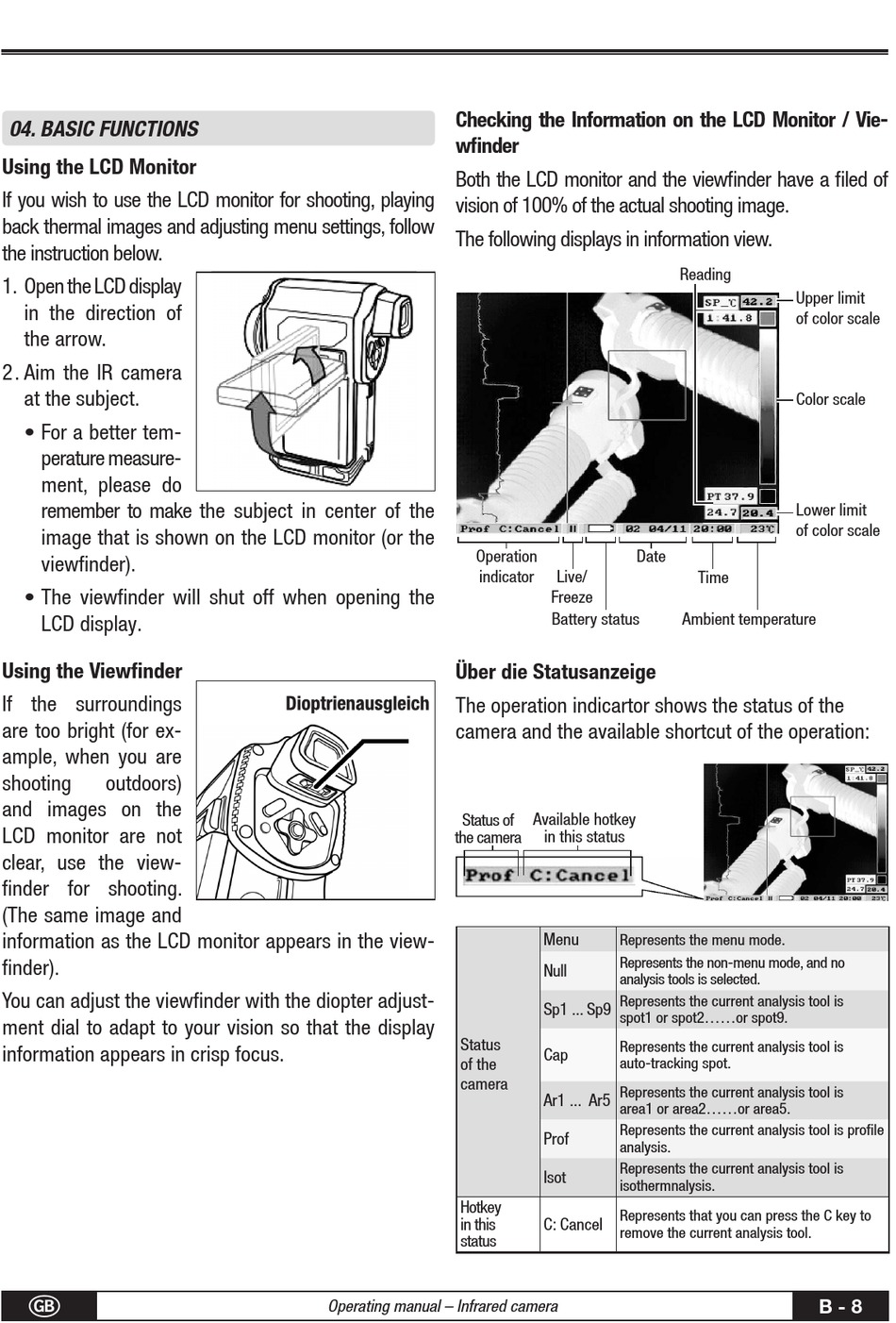

04. BasIc FunctIOns

Using the LCD Monitor
If you wish to use the LCD monitor for shooting, playing
back thermal images and adjusting menu settings, follow
the instruction below.
1. Open the LCD display
in the direction of
the arrow.
2 . Aim the IR camera
at the subject.
• For a better tem-
perature measure-
ment, please do
remember to make the subject in center of the
image that is shown on the LCD monitor (or the
viewfinder).
• The viewfinder will shut off when opening the
LCD display.
Using the Viewfinder
If the surroundings
are too bright (for ex-
ample, when you are
shooting outdoors)
and images on the
LCD monitor are not
clear, use the view-
finder for shooting.
(The same image and
information as the LCD monitor appears in the view-
finder).
You can adjust the viewfinder with the diopter adjust-
ment dial to adapt to your vision so that the display
information appears in crisp focus.
G
Checking the Information on the LCD Monitor / Vie-
wfinder
Both the LCD monitor and the viewfinder have a filed of
vision of 100% of the actual shooting image.
The following displays in information view.
Operation
indicator
Über die Statusanzeige
The operation indicartor shows the status of the
camera and the available shortcut of the operation:
Status of
the camera
Status
of the
camera
Hotkey
in this
status
Operating manual – Infrared camera
Reading
Date
Live/
Time
Freeze
Battery status Ambient temperature
Available hotkey
in this status
Menu
Represents the menu mode.
Represents the non-menu mode, and no
Null
analysis tools is selected.
Represents the current analysis tool is
Sp1 ... Sp9
spot1 or spot2......or spot9.
Represents the current analysis tool is
Cap
auto-tracking spot.
Represents the current analysis tool is
Ar1 ... Ar5
area1 or area2......or area5.
Represents the current analysis tool is profile
Prof
analysis.
Represents the current analysis tool is
Isot
isothermnalysis.
Represents that you can press the C key to
C: Cancel
remove the current analysis tool.
Upper limit
of color scale
Color scale
Lower limit
of color scale
B - 8
