90 AVENTICS | CL03, CL03-XL | R402000141–BAL–001–AF
Conversion and Extension
8.2.5 Remounting the end plate

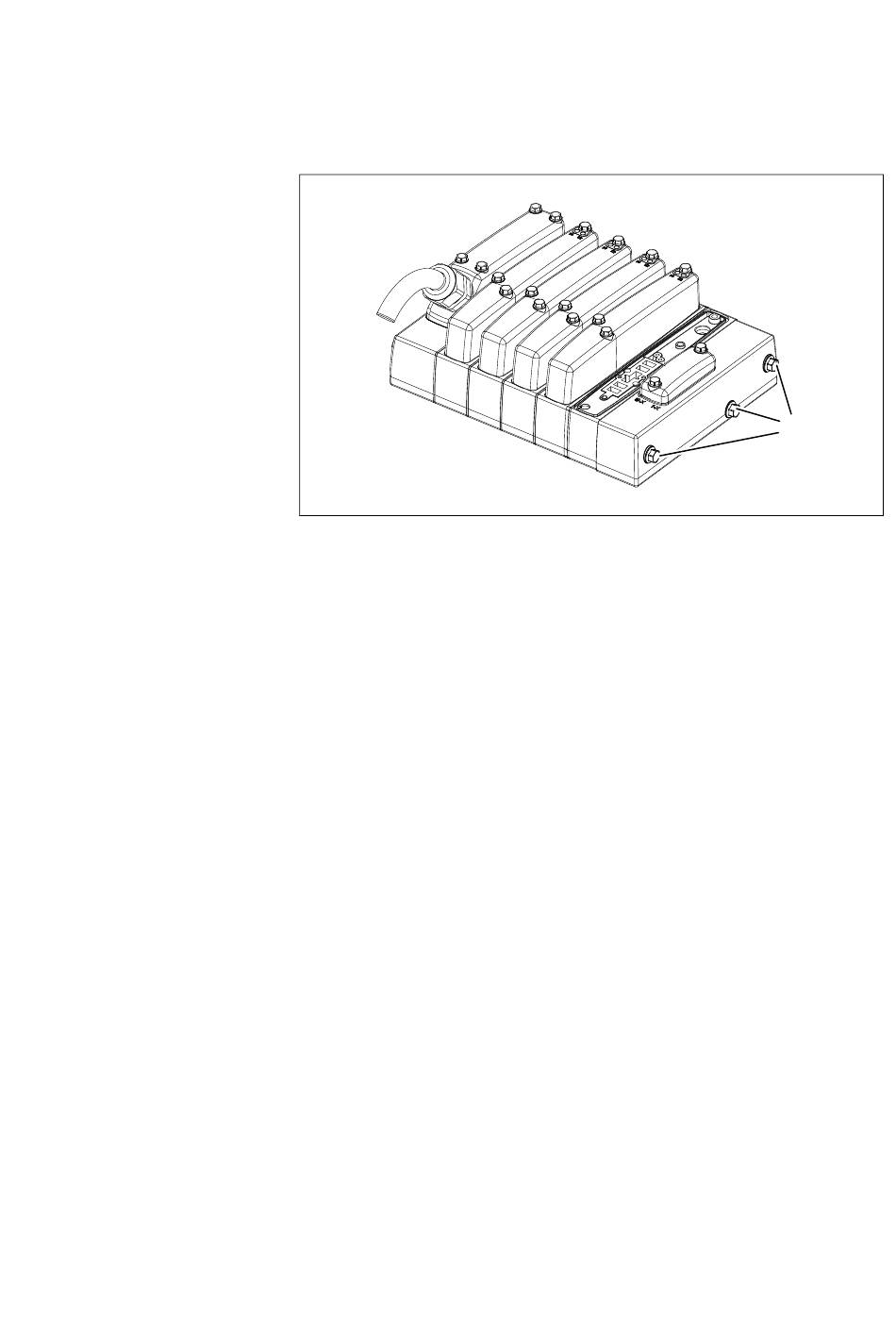

Fig. 13: Assembling the end plate
1. Replace the end plate. Making sure the seal is in the correct
position. Tighten the three hexagon screws (20).
Tightening torque: 2.8–3.2 Nm
2. Check the tightening torque (2.8–3.2 Nm) of the three
corresponding hexagon screws in the connection piece (1)
at the other end of the valve terminal system.
20
