70 AVENTICS | CL03, CL03-XL | R402000141–BAL–001–AF
Assembly
L = 63.5 + M x 30 mm
(multipole connection)
or L = 101.5 + M x 30 mm
(integrated bus coupler),
whereby N = number
of subbases

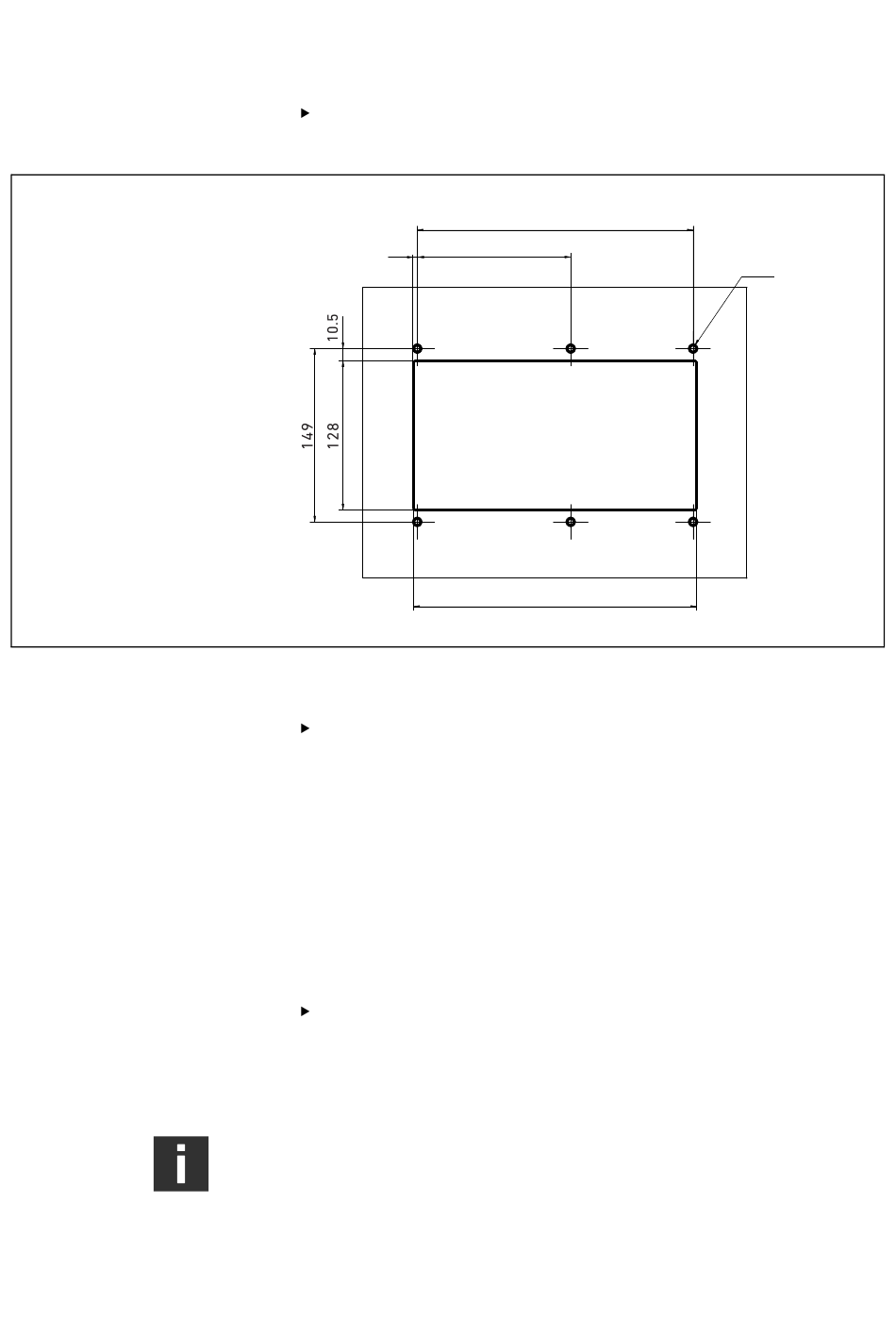

Fig. 6: Mecproof hole template
Use the following dimensions to make a suitable hole
template with screw holes.
12.1 + N x 29.7
3.6
Mount the valve system with the cover frame and sealing
strip as shown in Fig 5. (See Fig. 6 for mounting
dimensions.)
The maximum tightening torque for the mounting screws
is 4 Nm. The maximum thread depth is 15 mm.
5.4

Grounding the valve system

On the version with a bus coupler, connect the FE connection
(2) according to the instructions provided in the manual
for the respective bus coupler.
Versions with multipole plug are not grounded.
56.9 + N x 29.7
L
6.5
Ø
