Commissioning
max.
3 mm
13

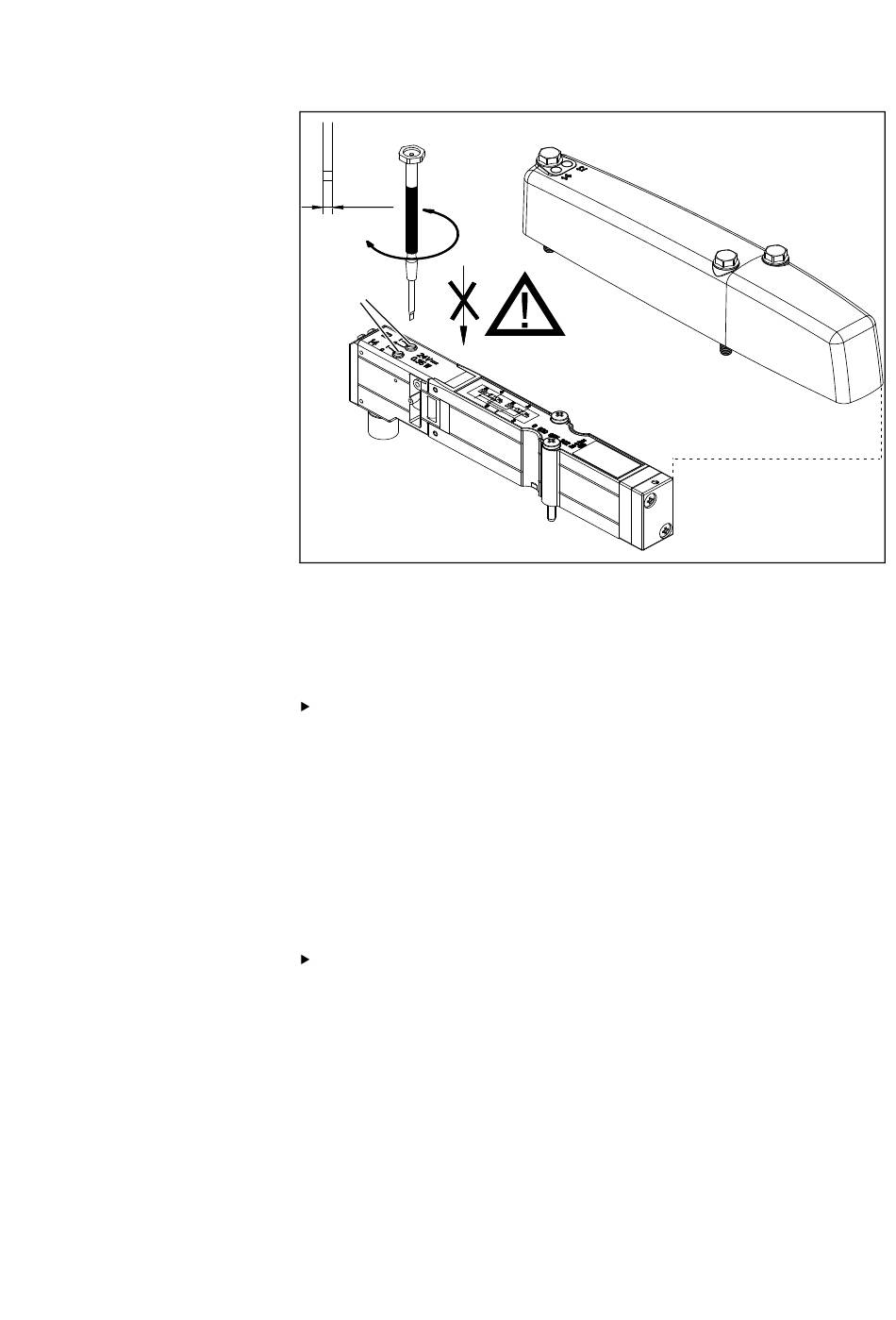

Fig. 10: Operating the manual override correctly
6.1.1 Turn and detent (yellow knob):
Insert a screwdriver blade in the slot of the manual override
(13) and turn it from position 0 to position 1 using slight
force until it clicks into place (see Fig. 10).
The valve switches and remains in the switched position
until the manual override is turned back to position 0.
6.1.2 Turn and release (red knob):
Insert a screwdriver blade in the slot of the manual override
and turn it from position 0 to position 1 using slight force.
The valve returns to position 0 when released.
