AVENTICS | CL03, CL03-XL | R402000141–BAL–001–AF
2. Mount the complete valve system on a mounting surface
using the threaded holes (1).
The threaded holes are available in the connection piece and
in the end plate, as well as in all subbases with four
connections or all subbases with 5x G1/4 thread
connections (i.e. subbases with connections 3 and 5 or 1, 3,
and 5, in addition to connections 2 and 4).
For optimal stability in valve systems with more than
10 subbases it is recommended to fit a subbase with threaded
mounting holes in the middle of the valve system.
5.3

Mecproof mounting

Mecproof mounting is an option for customers who prefer
to have the valve system mounted in a cabinet. The pneumatic
connections are separated from the electrical connections
by means of a cover frame (11) and a sealing strip (12) that can
be ordered separately. The principle is shown in Fig. 5.
11 12

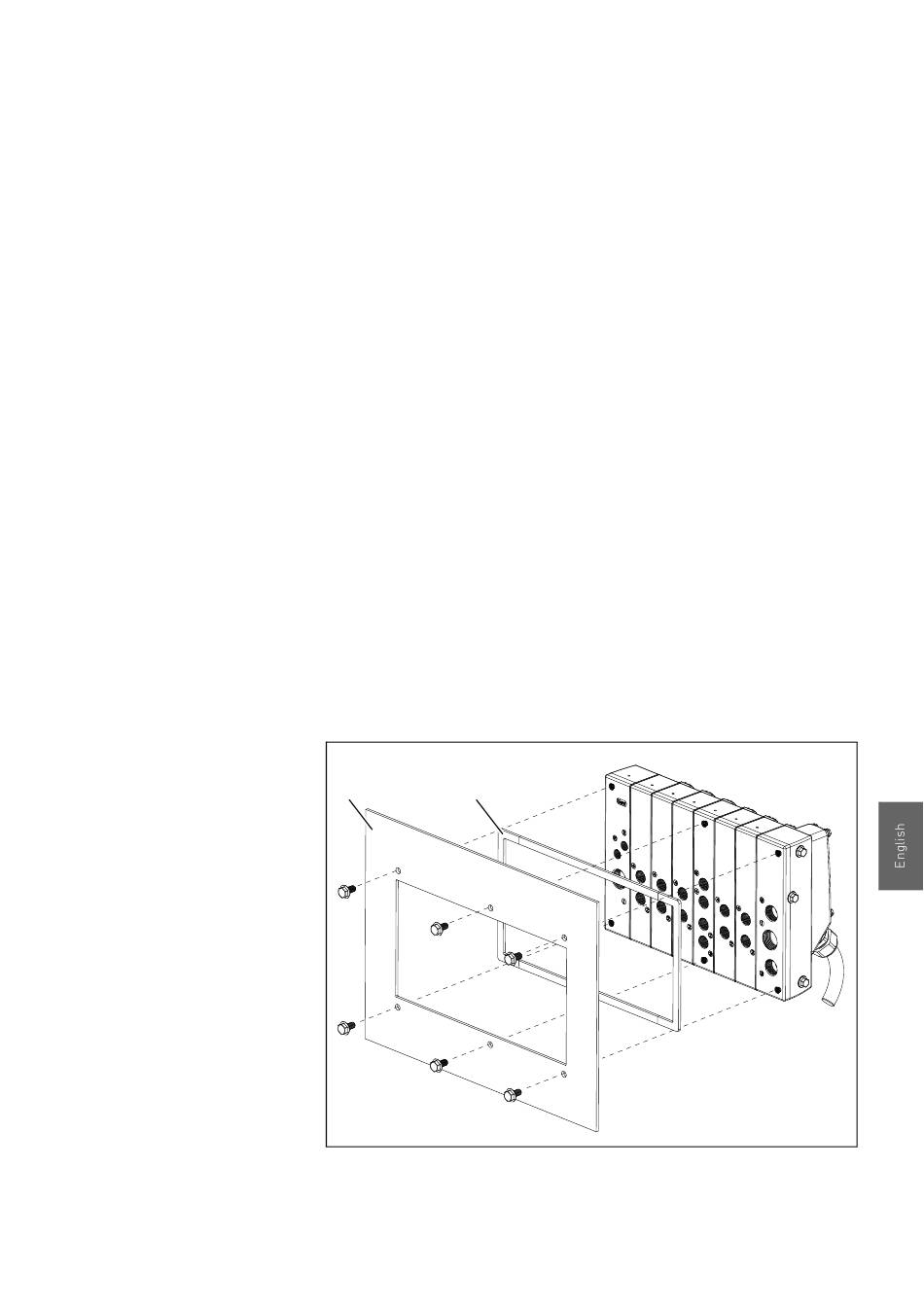

Fig. 5: Mecproof mounting
11 Cover frame 12 Sealing strip
69
Assembly
