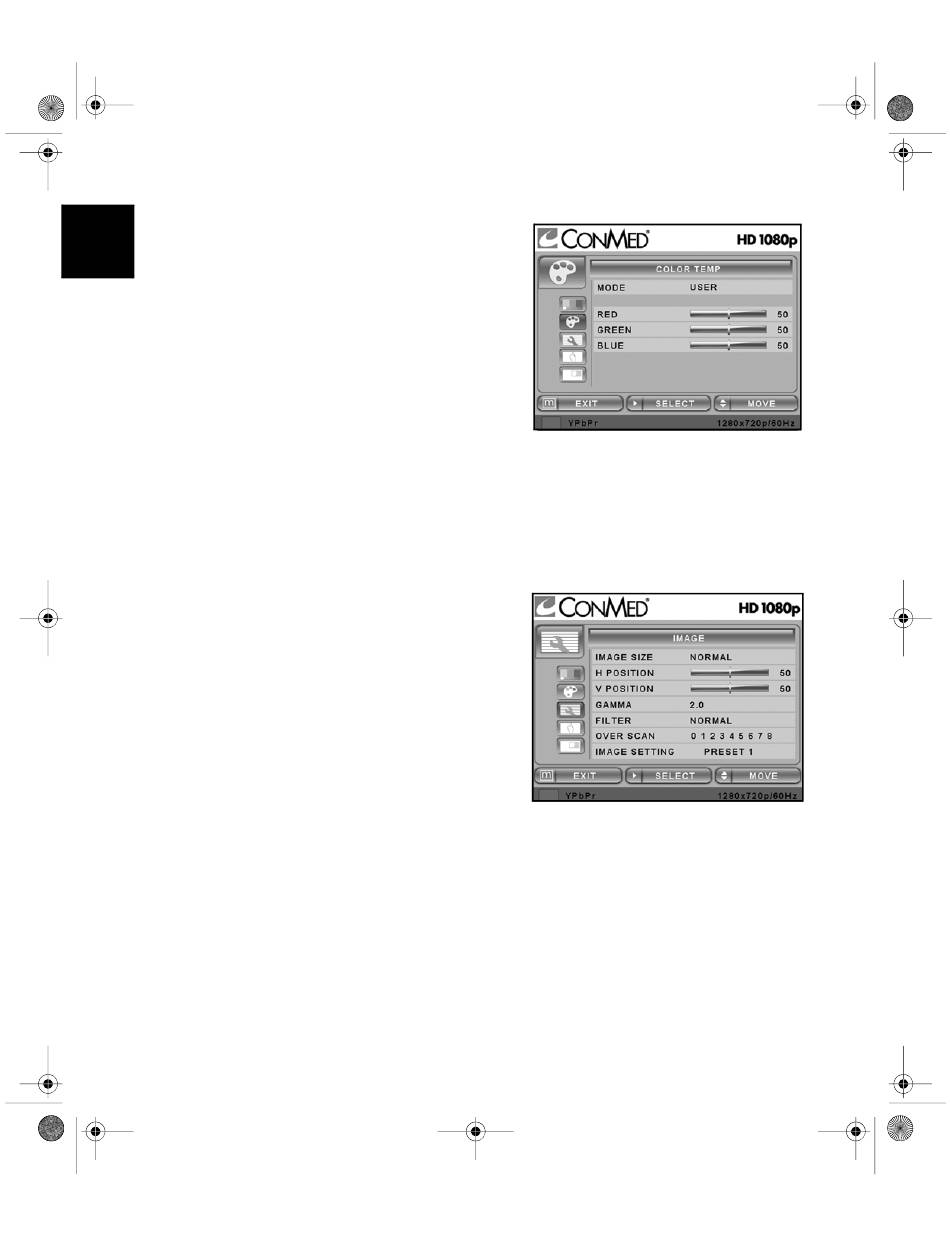

Color Temp Menu
E
❶
MODE - Change the color temperature mode:
6500K, 5600K, USER. When USER is selected, a
sub-menu displays allowing the user to adjust the
RED, GREEN or BLUE balance.
❷
RED - Red balance- Only works with USER mode
(Range: 0~100).
❸
GREEN - Green balance- Only works with USER
mode (Range: 0~100).
❹
BLUE - Blue balance- Only works with USER
mode (Range: 0~100).
Image Menu
❶
IMAGE SIZE - Change the image size
(Scaling mode) (Full; Fill aspect, 1:1; Normal).
❷
H POSITION - Adjust the horizontal (left or right)
position of the displayed source image
(Range: 0~100).
❸
V POSITION - Adjust the vertical (up or down)
position of the displayed source image
(Range: 0~100).
❹
GAMMA - Adjust GAMMA value (VIDEO,
BYPASS, 1.8, 2.0, 2.2, 2.4, 2.6, PACS).
➎
FILTER - Set the sharpness of the image (Softest,
Soft, Normal, Sharp, Sharpest).
➏
OVER SCAN - Adjust the displayed size ( 0~8)
❼
IMAGE SETTING - Change the image setting
(PRESET 1, PRESET 2, USER 1, USER 2, USER 3).
E-16
