1.7

System Indicators

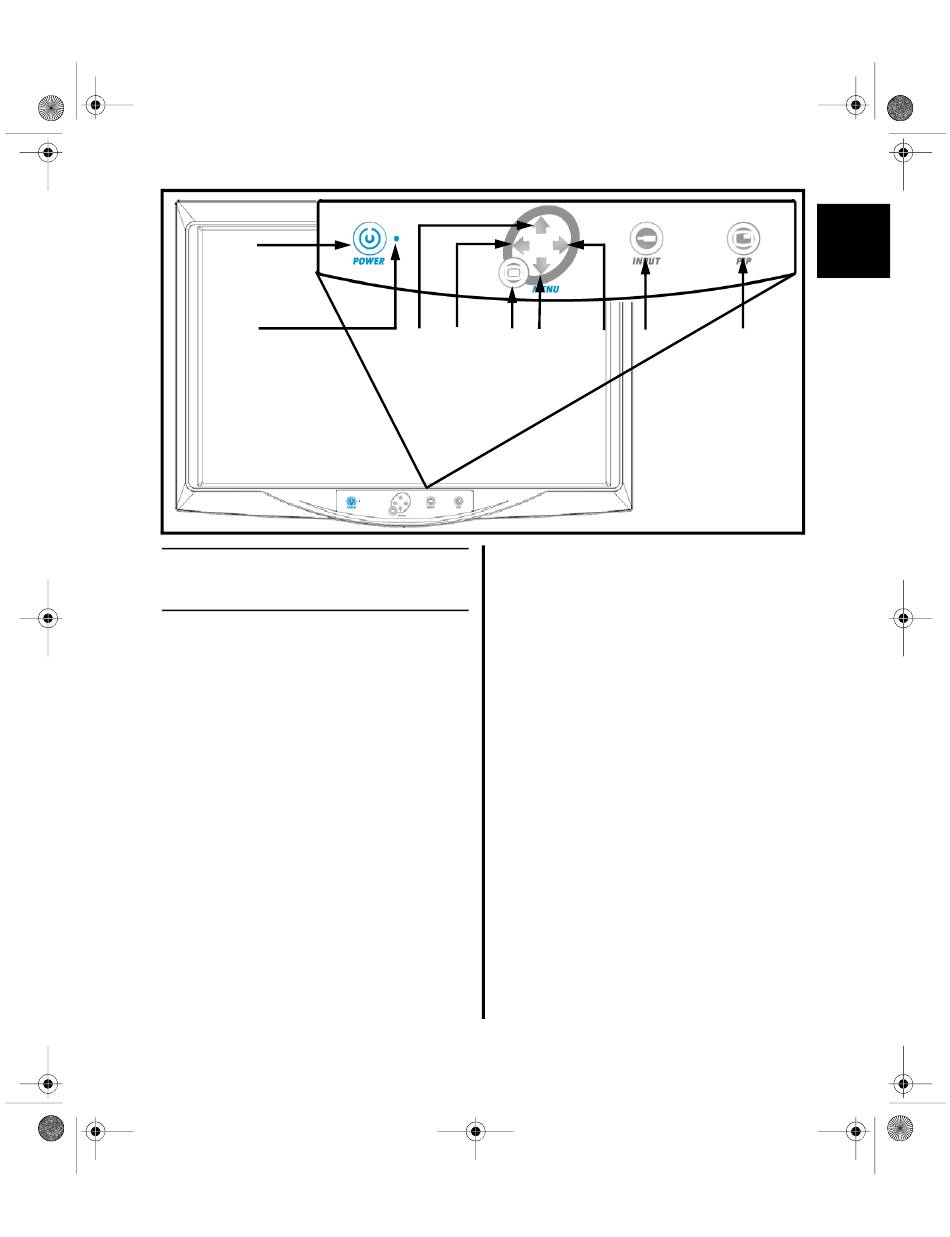

1.7.1 Front Panel On-Screen Display
(OSD) Button Functionality
❶
"POWER" Button
monitor to Normal Mode or Stand-by Mode.
❷
Power Status Indicator - Indicator is off
when monitor is in stand-by mode, and is
illuminated green when the monitor is
activated.
❸
Up Arrow - With the OSD deactivated, press
this area to increase the brightness of the
monitor. With the OSD activated, press this
area to move the cursor upward in a menu.
❹
Left Arrow - With the OSD deactivated,
press this area to decrease the contrast of
the monitor. With the OSD activated, press
this area to enter a sub-menu and decrease
the adjustment of the selected function.
❸ ❹
➎
➏
-
Press to set the
❼
❽
➒
E-7
❺ ❻
❼ ❽
MENU Button - With the OSD deactivated,
pressing this button activates the OSD menu.
With OSD activated, pressing this button
exits the main menu or sub-menu.
Down Arrow - With the OSD deactivated,
press this area to decrease the brightness of
the monitor. With the OSD activated, press
this area to move the cursor downward.
Right Arrow - With the OSD deactivated,
press this area to increase the contrast of the
monitor. With the OSD activated, press this
area to enter a sub-menu and increase the
adjustment of the selected function.
INPUT Button - Used to change the
monitor's signal source; select DVI
OPTICAL / DVI DIGITAL / DSUB
ANALOG / SDI YPbPR / RGBS / SVIDEO
/ CVIDEO. With OSD deactivated, press
this button to switch signal inputs.
PIP Button - Pressing this button enables
the Picture-In-Picture function. Select PIP,
PBP1, PBP2.
E
❾
