OPENING THE HOOD ______________________________________________________

The "Right" and "Left", "Front" and "Rear" of the
machine are referenced from the operator's right and
left when seated in the mower's seat in the normal
operating position.
1. To Open the Hood, unhook latch (R) on right-front
foot rest, then lift entire left-side hood (S) upwards
to clear the steering console cover.
2. Stand in front of the machine and push the right end
of the hood (S) downwards as shown.
3. Pivot the hood to its full open position.
4. Lift hood (T) straight upwards and remove from the
mower.
5. To Close the Hood, position hood (T) directly over
the hydro, push down and towards the radiator.
5.4

STEERING CONSOLE COVER _______________________________________________

1. First open the front hood. See Section 5.3.
2. To remove the console cover, lift latch (U) on both
sides and pull outwards to disengage internal lock.
3. Lift the console cover (Y) straight up and off the
mower.
6. From the front of the machine, pivot hood (S)
upwards and to the left making sure the hood clears
the operator's console then push downwards and
into the front retainer.
1
4
T
Y
CONTROLS
3
2
S

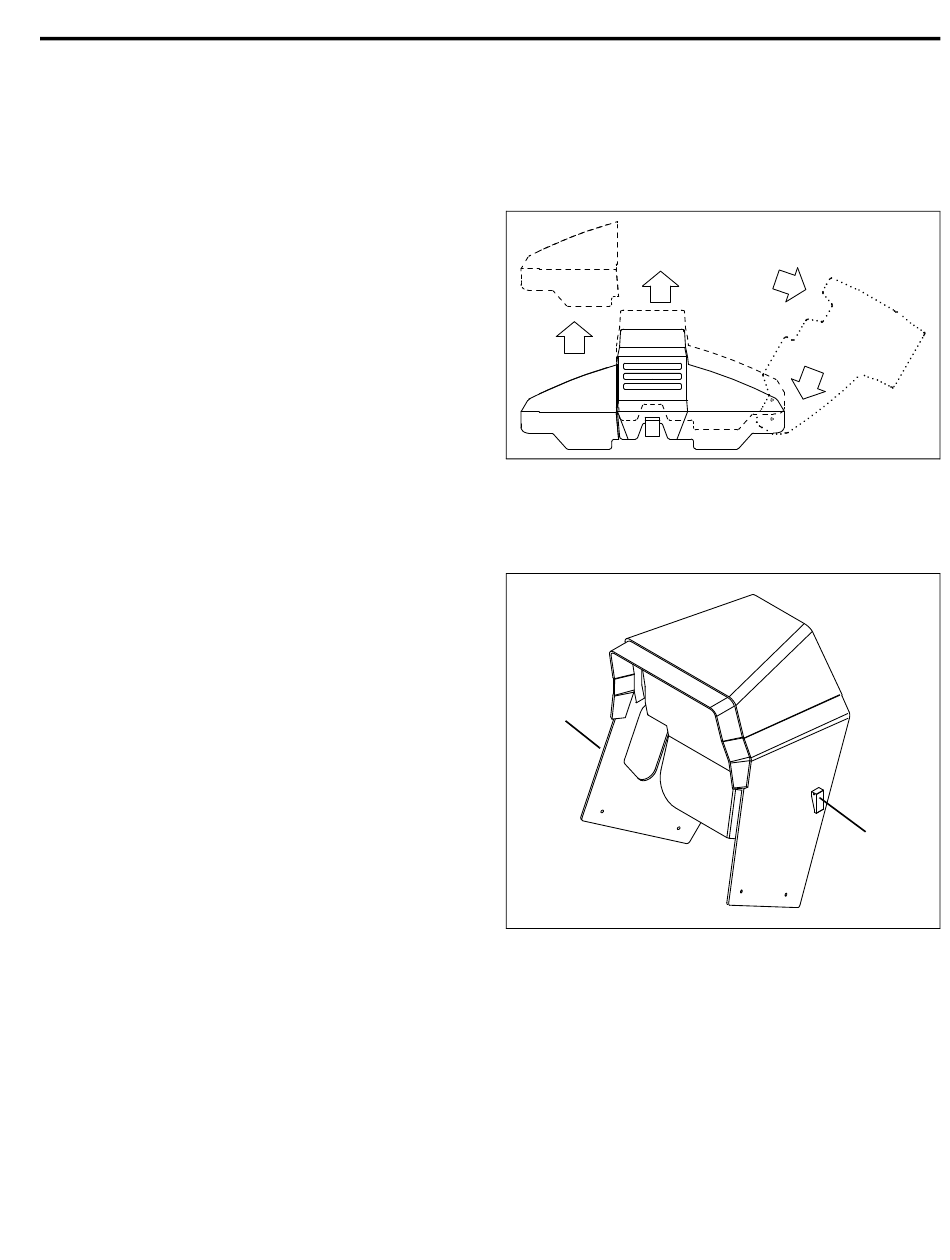

Figure 5A
