Fronius Symo 10.0-3-M Serviceanleitung, Ersatzteilliste Seite 165

(4)

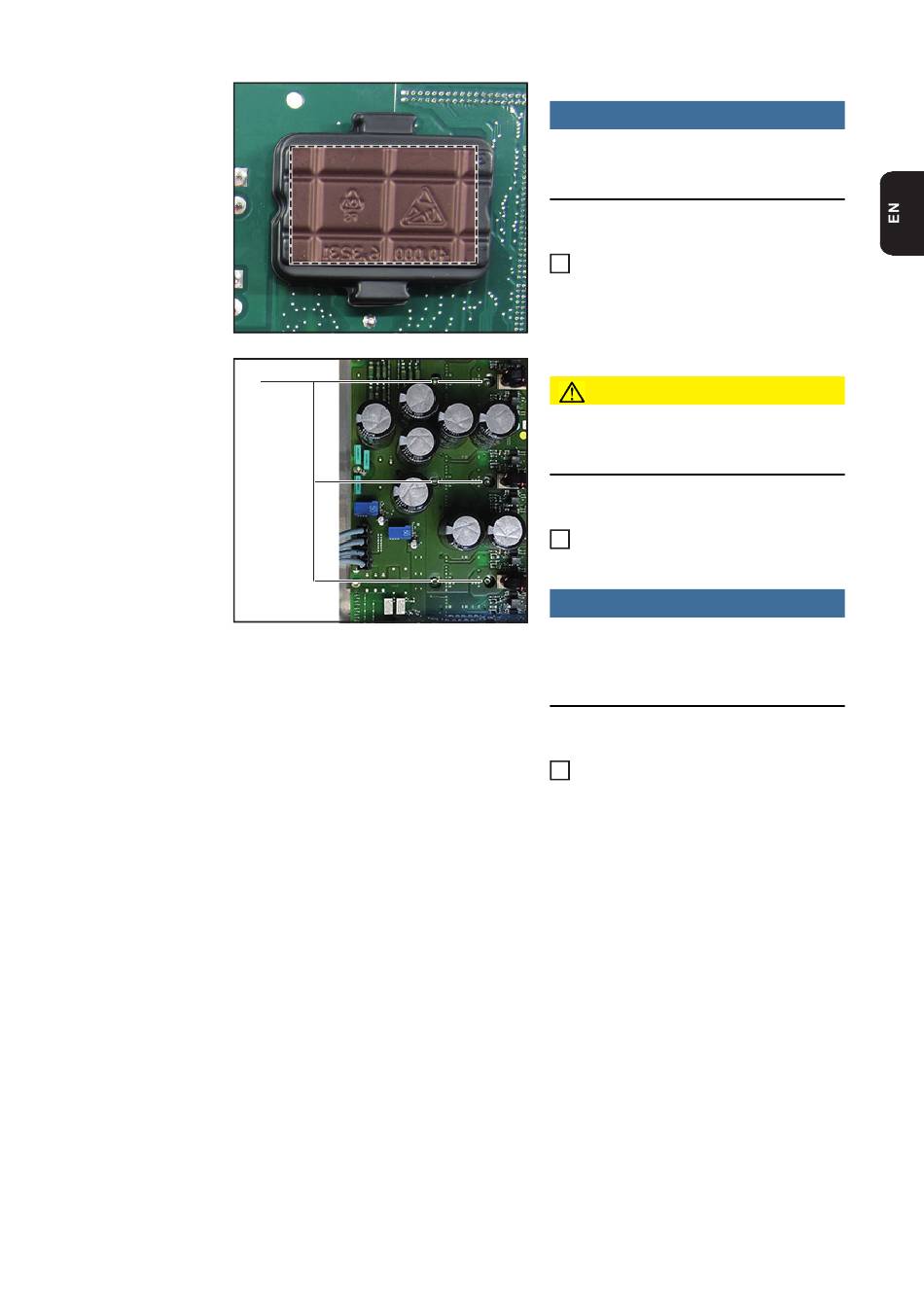

NOTE!
Do not press on the marked area ->
this will damage the PCM material
Detach the blister packs from the new
1
EcoPS at the tabs and place them on
the faulty EcoPS
CAUTION!
The PCM paste must not be damaged or
removed when inserting the EcoPS
Insert the new EcoPS and position ac-
2
cordingly
NOTE!
To avoid applying mechanical stress to
the solar modules, apply the torque in
the same sequence
Fit the EcoPS solar modules with six
3
4x9 TX20 screws (4). Observe the tor-
que sequence to avoid applying me-
chanical stress
First pretension all six screws to [0.5
Nm] and then tighten them to [2 Nm]
165
