Fronius Symo 10.0-3-M Serviceanleitung, Ersatzteilliste Seite 146

146
(4)
(2)
(2)
(1)

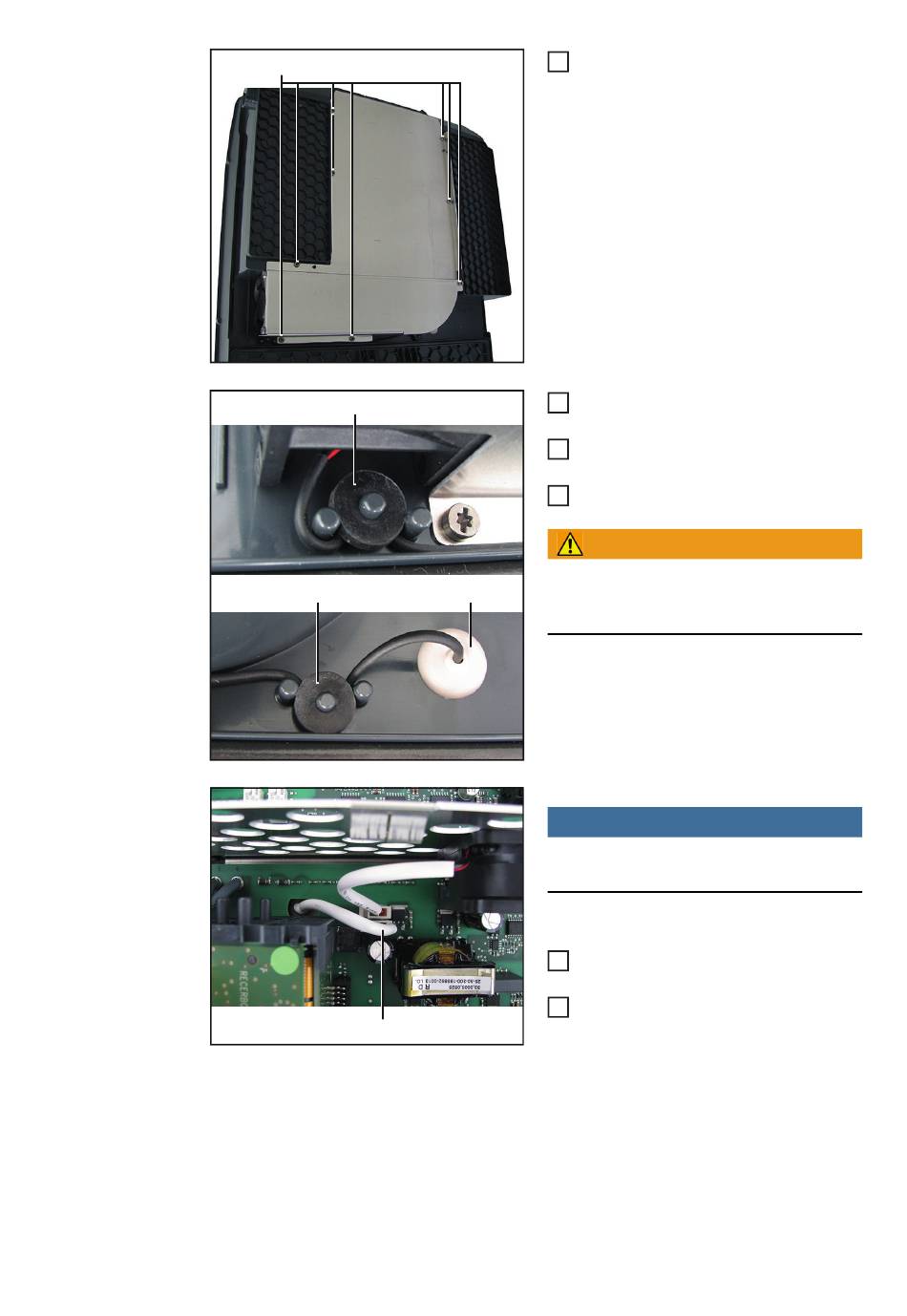

Fit the air guide plate with eight 4x8
2
TX25 screws (4)
[1.5 Nm]
Thread in the fan cable, pushing in the
3
cable gland (3) as you do so
Feed the fan cable through both strain-
4
relief devices
Fit the two rubber seals (2)
5
WARNING!
To ensure there are no leaks, the cable
(3) gland must be securely in place
NOTE!
Carefully turn the inverter round.
Plug the fan cable (1) into the SymoFIL
5
/ EcoFIL
Close the inverter and place it in the
6
wall bracket (see "Opening and closing
the device")
Switch on the inverter and then carry out a
fan test via the display (see operating inst-
ructions)
