Fronius Symo 10.0-3-M Serviceanleitung, Ersatzteilliste Seite 135

(4) (3)(4) (3)

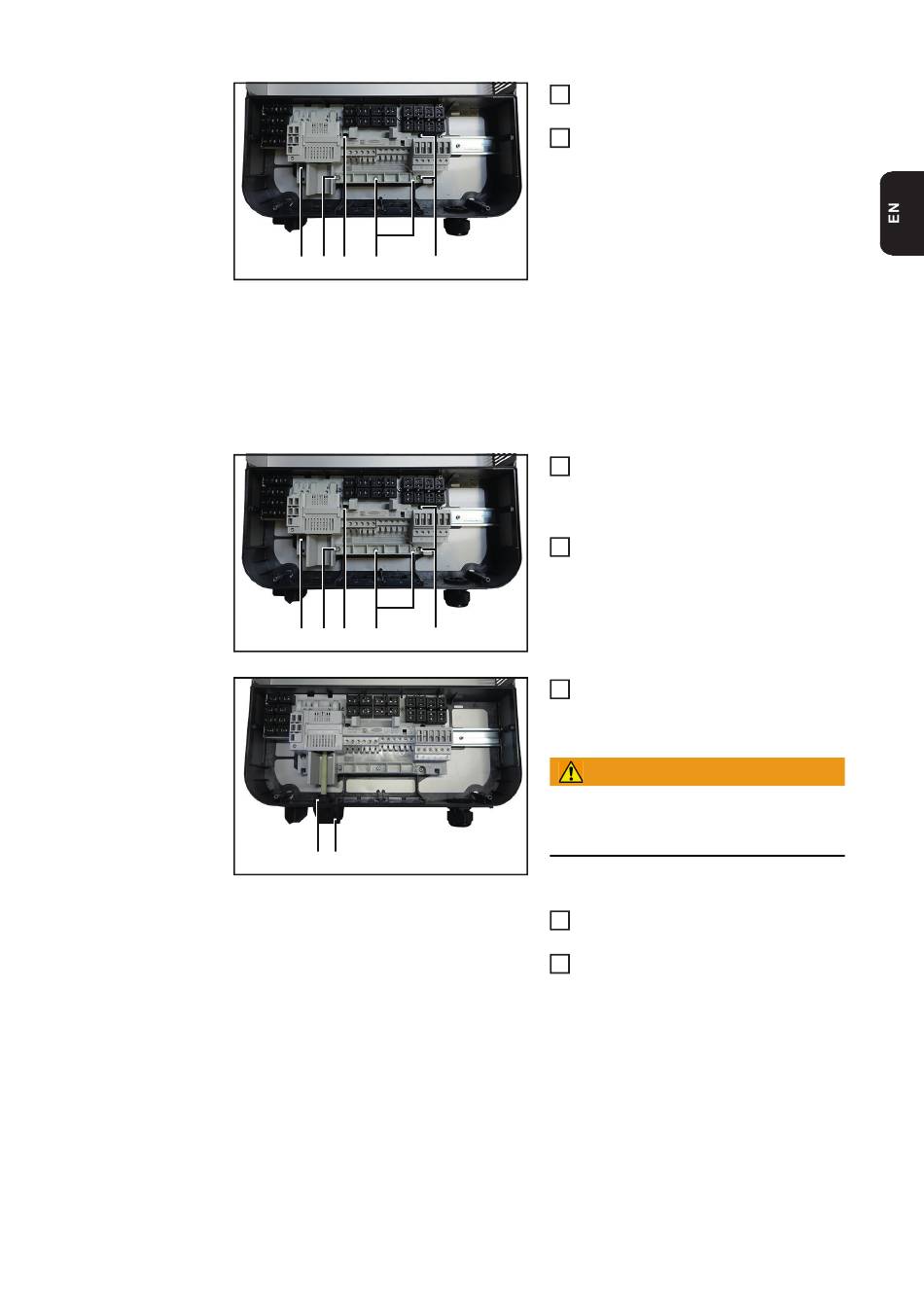

Installing the DC disconnector:
(4) (3)(4) (3)
(1)(2)
Undo the three 4x20 TX20 screws (3)
4
and remove the strain relief clamp
Undo the four 4x9 TX20 screws (4) and
5
remove the DC disconnector
(4)
Insert the new DC disconnector and
1
secure it using four 4x9 TX20 screws
(4)
[2 Nm]
Fix the strain relief clamp using three
2
4x20 TX20 screws (3)
[3-4 turns]
(4)
Insert the control switch and shaft (2)
3
and secure it using the retaining clip (1)
Take safety precautions.
Observe the safety rules - DC voltage pre-
sent!
Connect the AC and DC lines to the
4
terminal block of the DC disconnector
Place the inverter in the mounting bra-
5
cket (see "Opening and closing the de-
vice")
WARNING!
135
