Fronius Symo 10.0-3-M Serviceanleitung, Ersatzteilliste Seite 129

(3)
1
(1)
(4)
(4)
(4)

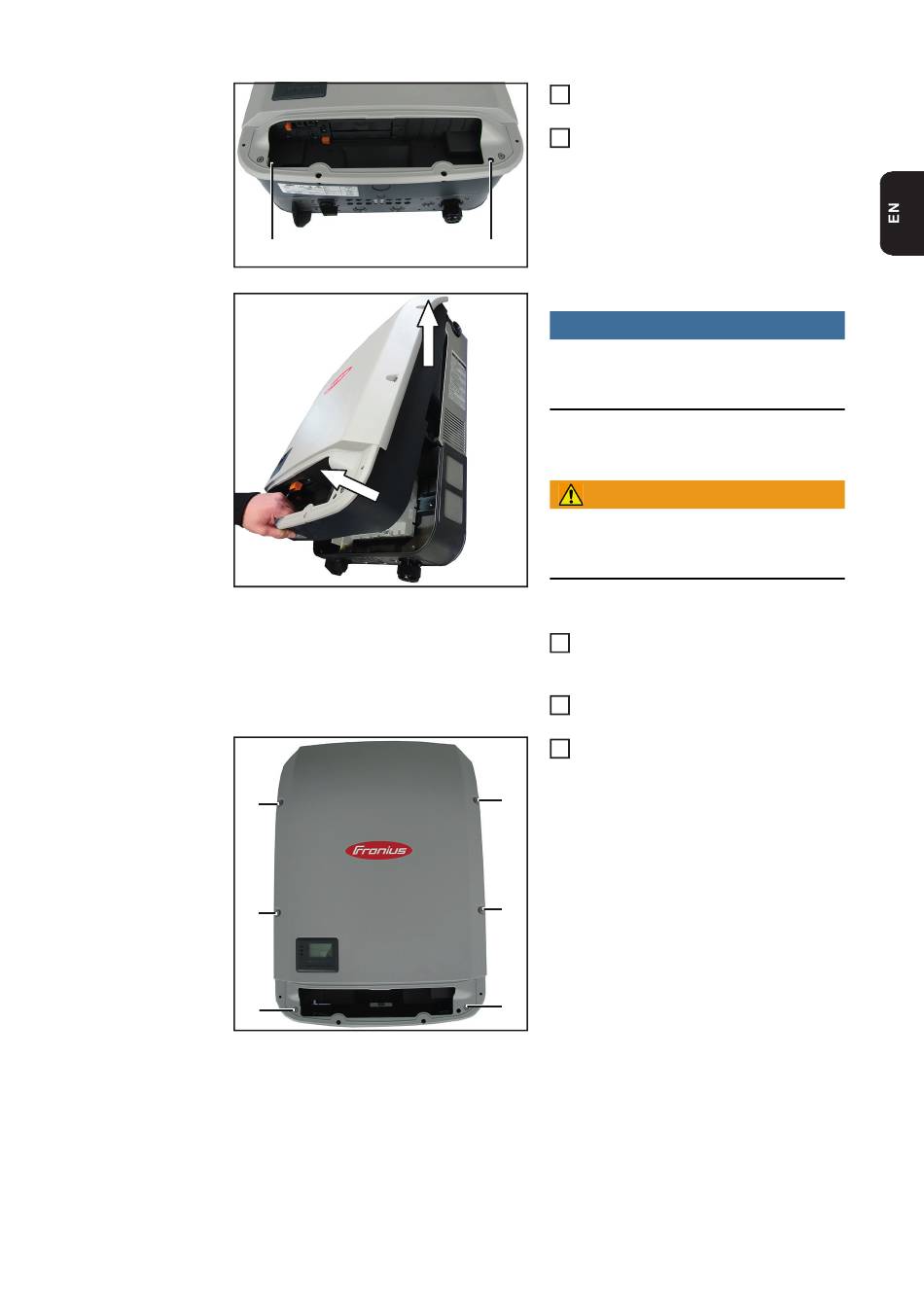

Closing the device:
If applicable, disconnect all plug
3
connections
Undo the two 5x25 TX25 screws (3)
4
(3)
2
NOTE!
To avoid damaging the base shell, do
not angle the inverter by more than 11°.
Wait for the capacitors to discharge be-
fore continuing.
Lift the inverter from the Datcom area,
5
disconnecting the connection to the
mounting bracket
Detach the inverter by lifting it upwards
6
Undo the six 5x16 TX20 screws (4)
7
and remove the power stage set cover
–
(4)
(4)
(4)
WARNING!
Fronius Eco: remove the EMC
bracket
129
