High-availability Seamless Redun-
dancy (HSR) (hardwareabhängig)

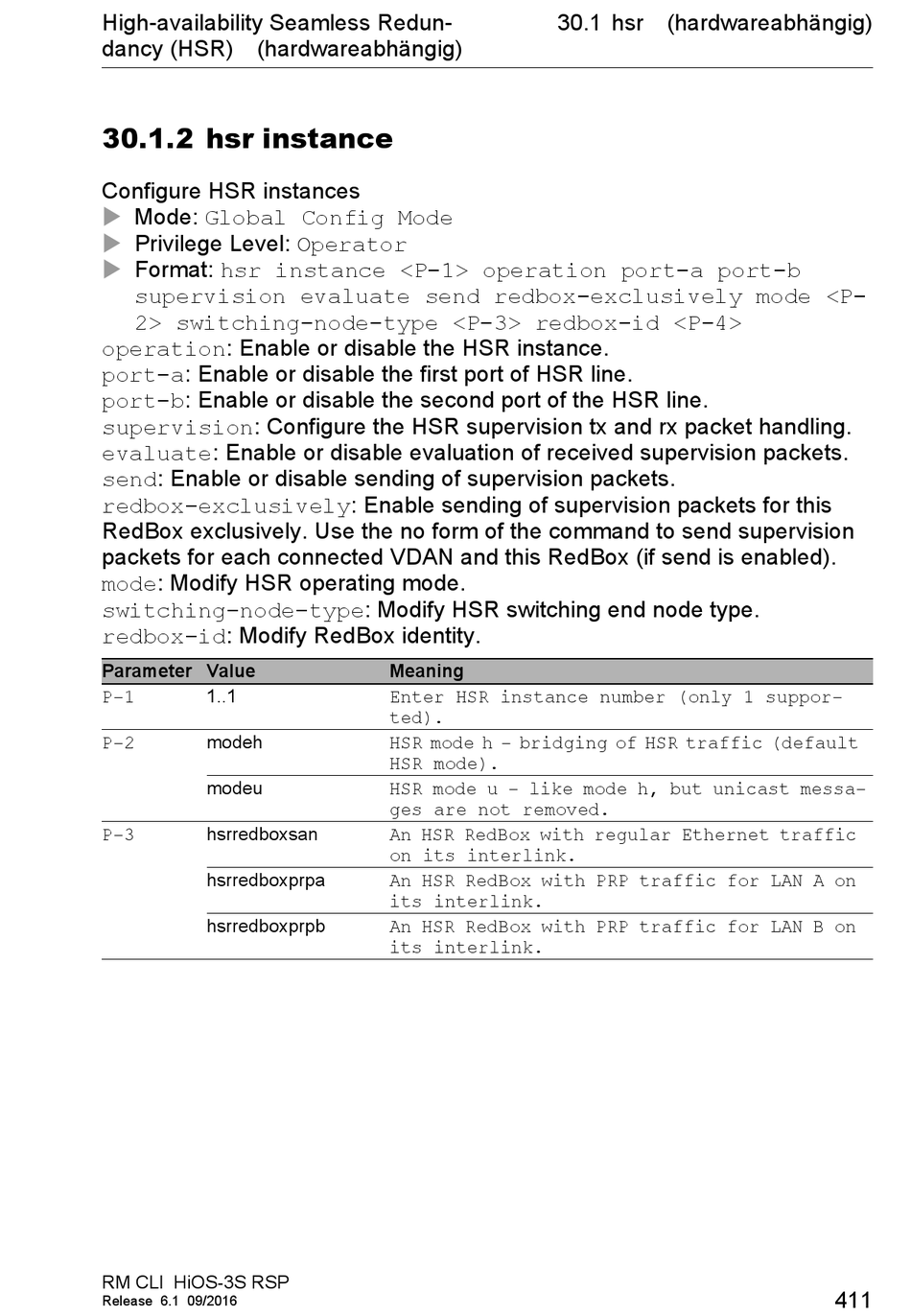

30.1.2 hsr instance

Configure HSR instances

Mode: Global Config Mode

Privilege Level: Operator

Format: hsr instance <P-1> operation port-a port-b
supervision evaluate send redbox-exclusively mode <P-
2> switching-node-type <P-3> redbox-id <P-4>
operation: Enable or disable the HSR instance.
port-a: Enable or disable the first port of HSR line.
port-b: Enable or disable the second port of the HSR line.
supervision: Configure the HSR supervision tx and rx packet handling.
evaluate: Enable or disable evaluation of received supervision packets.
send: Enable or disable sending of supervision packets.
redbox-exclusively: Enable sending of supervision packets for this
RedBox exclusively. Use the no form of the command to send supervision
packets for each connected VDAN and this RedBox (if send is enabled).
mode: Modify HSR operating mode.
switching-node-type: Modify HSR switching end node type.
redbox-id: Modify RedBox identity.
Parameter Value
1..1
P-1
modeh
P-2
modeu
hsrredboxsan
P-3
hsrredboxprpa
hsrredboxprpb
RM CLI HiOS-3S RSP
Release 6.1 09/2016
30.1 hsr (hardwareabhängig)
Meaning
Enter HSR instance number (only 1 suppor-
ted).
HSR mode h - bridging of HSR traffic (default
HSR mode).
HSR mode u - like mode h, but unicast messa-
ges are not removed.
An HSR RedBox with regular Ethernet traffic
on its interlink.
An HSR RedBox with PRP traffic for LAN A on
its interlink.
An HSR RedBox with PRP traffic for LAN B on
its interlink.
