Device Level Ring (DLR) (hardware-
abhängig)

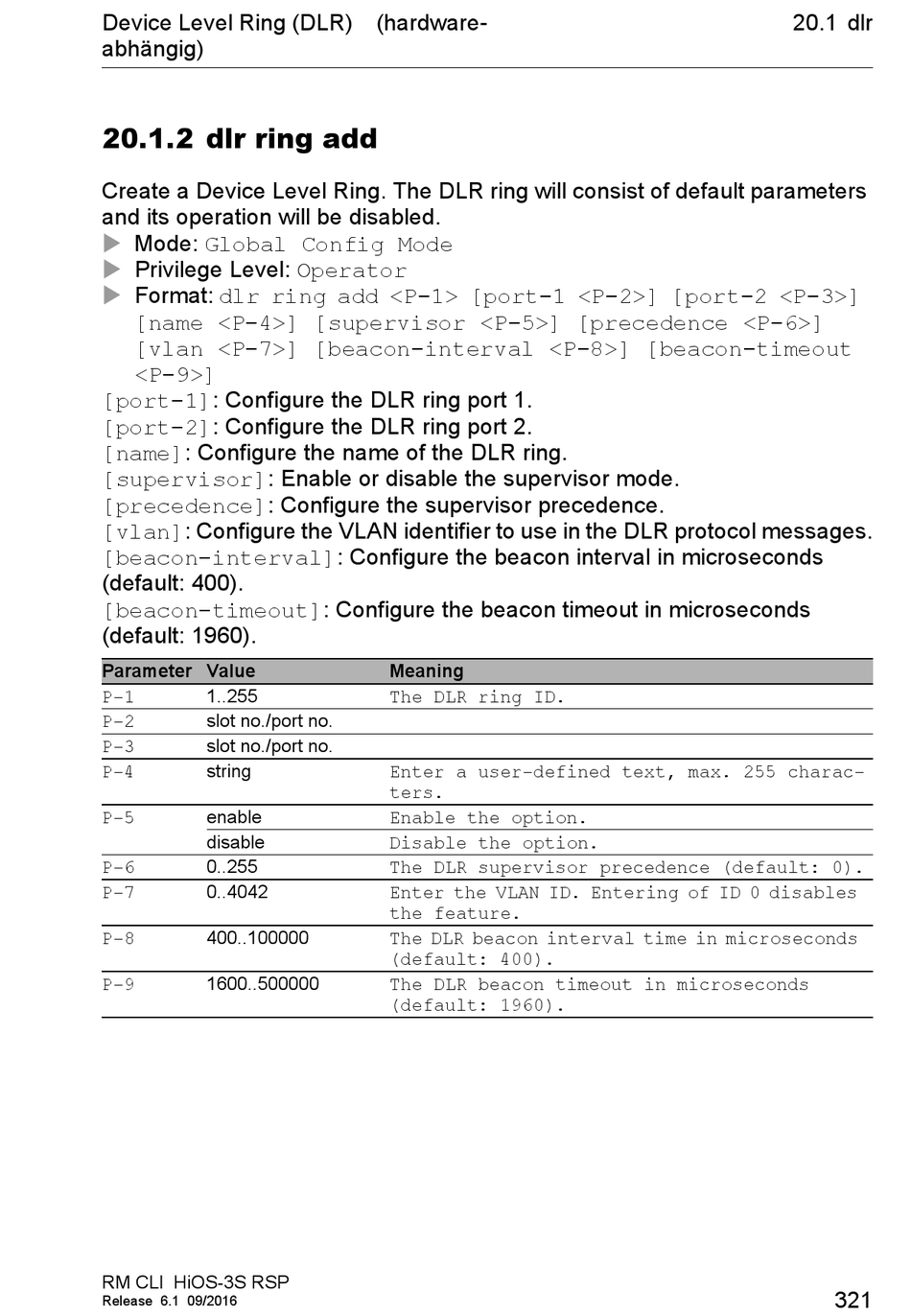

20.1.2 dlr ring add

Create a Device Level Ring. The DLR ring will consist of default parameters
and its operation will be disabled.

Mode: Global Config Mode

Privilege Level: Operator

Format: dlr ring add <P-1> [port-1 <P-2>] [port-2 <P-3>]
[name <P-4>] [supervisor <P-5>] [precedence <P-6>]
[vlan <P-7>] [beacon-interval <P-8>] [beacon-timeout
<P-9>]
[port-1]: Configure the DLR ring port 1.
[port-2]: Configure the DLR ring port 2.
[name]: Configure the name of the DLR ring.
[supervisor]: Enable or disable the supervisor mode.
[precedence]: Configure the supervisor precedence.
[vlan]: Configure the VLAN identifier to use in the DLR protocol messages.
[beacon-interval]: Configure the beacon interval in microseconds
(default: 400).
[beacon-timeout]: Configure the beacon timeout in microseconds
(default: 1960).
Parameter Value
1..255
P-1
slot no./port no.
P-2
slot no./port no.
P-3
string
P-4
enable
P-5
disable
0..255
P-6
0..4042
P-7
400..100000
P-8
1600..500000
P-9
RM CLI HiOS-3S RSP
Release 6.1 09/2016
Meaning
The DLR ring ID.
Enter a user-defined text, max. 255 charac-
ters.
Enable the option.
Disable the option.
The DLR supervisor precedence (default: 0).
Enter the VLAN ID. Entering of ID 0 disables
the feature.
The DLR beacon interval time in microseconds
(default: 400).
The DLR beacon timeout in microseconds
(default: 1960).
