Device Level Ring (DLR) (hardware-
abhängig)

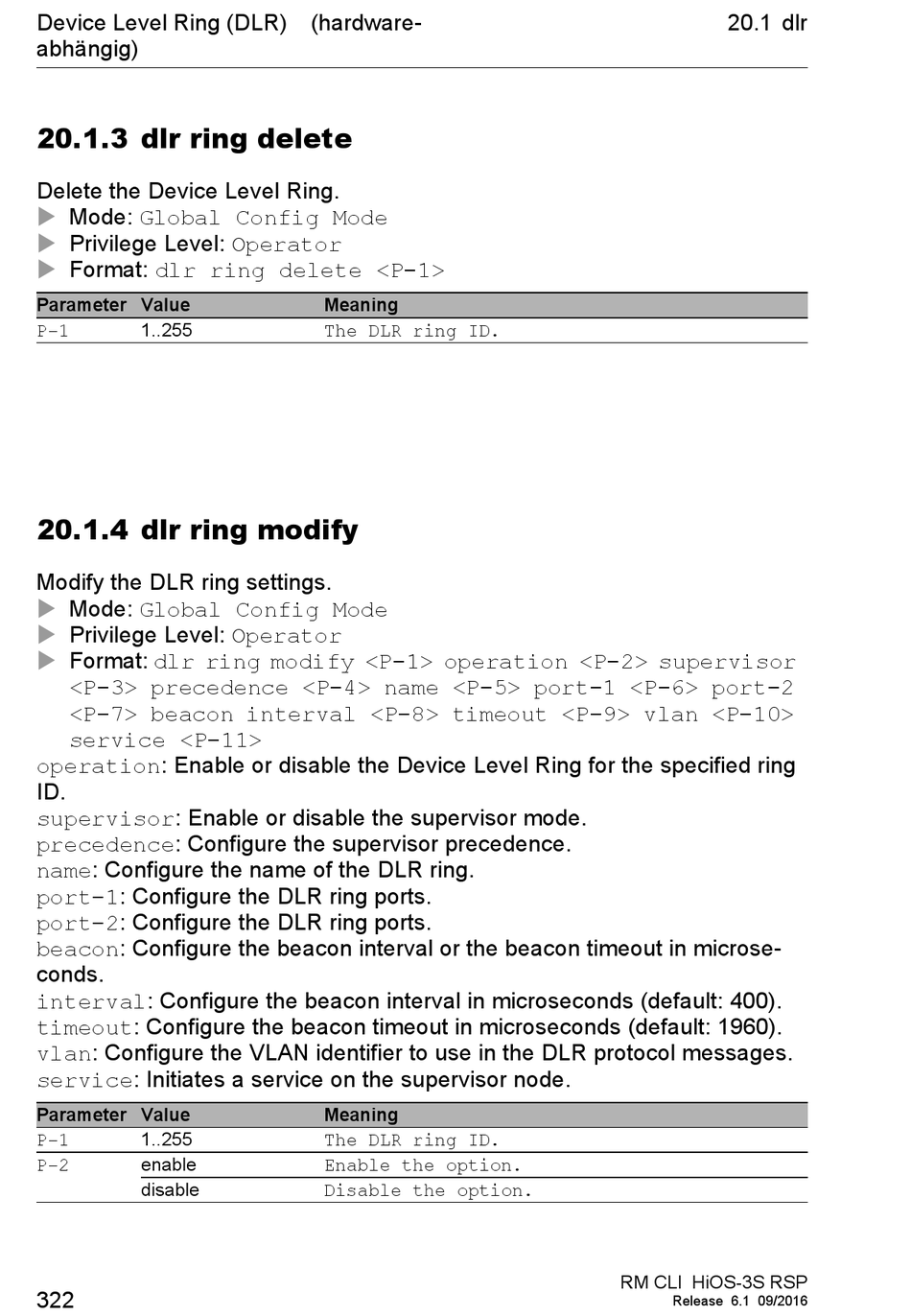

20.1.3 dlr ring delete

Delete the Device Level Ring.

Mode: Global Config Mode

Privilege Level: Operator

Format: dlr ring delete <P-1>
Parameter Value
1..255
P-1

20.1.4 dlr ring modify

Modify the DLR ring settings.

Mode: Global Config Mode

Privilege Level: Operator

Format: dlr ring modify <P-1> operation <P-2> supervisor
<P-3> precedence <P-4> name <P-5> port-1 <P-6> port-2
<P-7> beacon interval <P-8> timeout <P-9> vlan <P-10>
service <P-11>
operation: Enable or disable the Device Level Ring for the specified ring
ID.
supervisor: Enable or disable the supervisor mode.
precedence: Configure the supervisor precedence.
name: Configure the name of the DLR ring.
port-1: Configure the DLR ring ports.
port-2: Configure the DLR ring ports.
beacon: Configure the beacon interval or the beacon timeout in microse-
conds.
interval: Configure the beacon interval in microseconds (default: 400).
timeout: Configure the beacon timeout in microseconds (default: 1960).
vlan: Configure the VLAN identifier to use in the DLR protocol messages.
service: Initiates a service on the supervisor node.
Parameter Value
1..255
P-1
enable
P-2
disable
322
Meaning
The DLR ring ID.
Meaning
The DLR ring ID.
Enable the option.
Disable the option.
