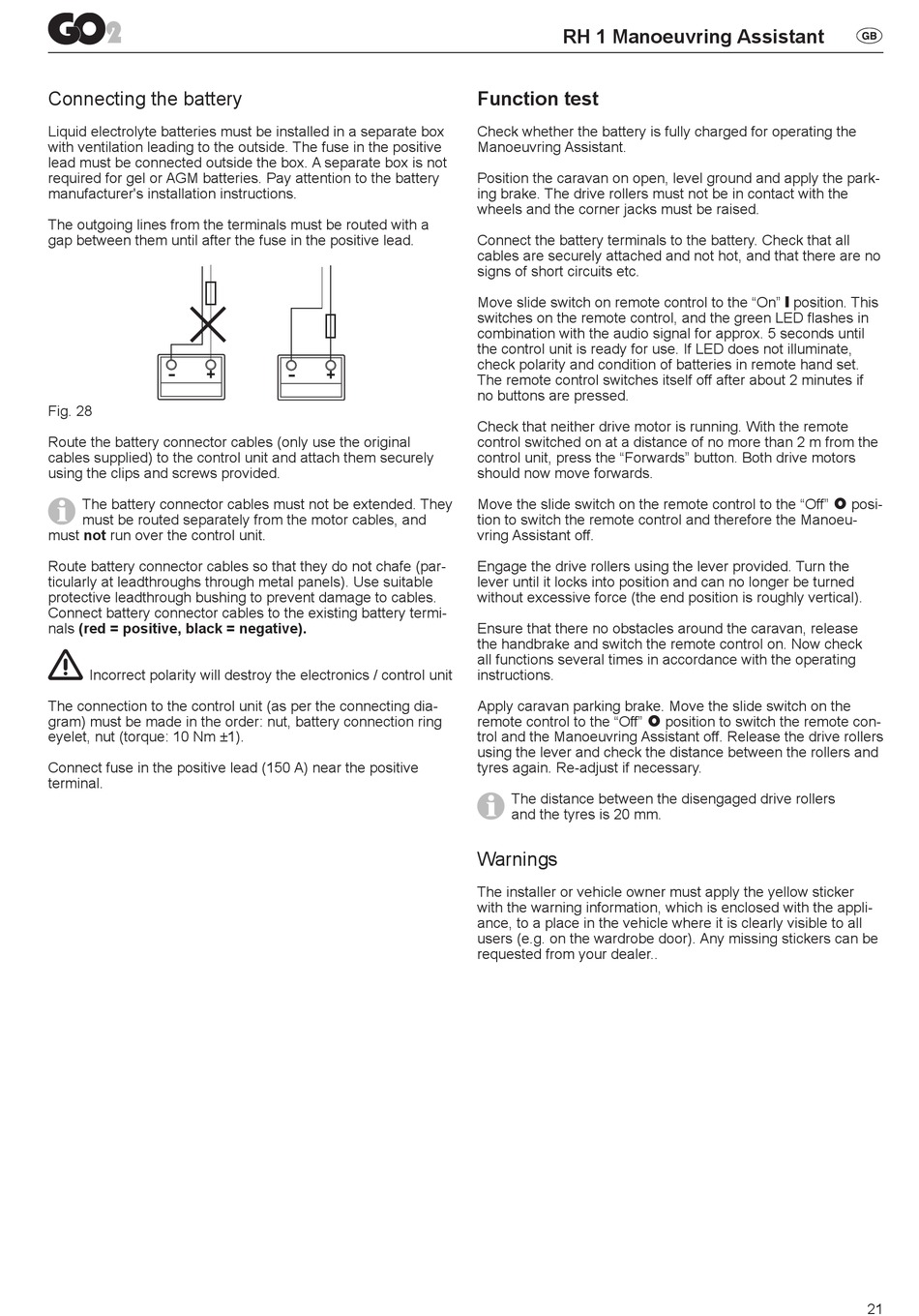

Connecting the battery

Liquid electrolyte batteries must be installed in a separate box
with ventilation leading to the outside. The fuse in the positive
lead must be connected outside the box. A separate box is not
required for gel or AGM batteries. Pay attention to the battery
manufacturer's installation instructions.
The outgoing lines from the terminals must be routed with a
gap between them until after the fuse in the positive lead.
- +
Fig. 28
Route the battery connector cables (only use the original
cables supplied) to the control unit and attach them securely
using the clips and screws provided.
The battery connector cables must not be extended. They
must be routed separately from the motor cables, and
must not run over the control unit.
Route battery connector cables so that they do not chafe (par-
ticularly at leadthroughs through metal panels). Use suitable
protective leadthrough bushing to prevent damage to cables.
Connect battery connector cables to the existing battery termi-
nals (red = positive, black = negative).
Incorrect polarity will destroy the electronics / control unit
The connection to the control unit (as per the connecting dia-
gram) must be made in the order: nut, battery connection ring
eyelet, nut (torque: 10 Nm ±1).
Connect fuse in the positive lead (150 A) near the positive
terminal.
-
+
RH 1 Manoeuvring Assistant

Function test

Check whether the battery is fully charged for operating the
Manoeuvring Assistant.
Position the caravan on open, level ground and apply the park-
ing brake. The drive rollers must not be in contact with the
wheels and the corner jacks must be raised.
Connect the battery terminals to the battery. Check that all
cables are securely attached and not hot, and that there are no
signs of short circuits etc.
Move slide switch on remote control to the "On"
switches on the remote control, and the green LED flashes in
combination with the audio signal for approx. 5 seconds until
the control unit is ready for use. If LED does not illuminate,
check polarity and condition of batteries in remote hand set.
The remote control switches itself off after about 2 minutes if
no buttons are pressed.
Check that neither drive motor is running. With the remote
control switched on at a distance of no more than 2 m from the
control unit, press the "Forwards" button. Both drive motors
should now move forwards.
Move the slide switch on the remote control to the "Off"
tion to switch the remote control and therefore the Manoeu-
vring Assistant off.
Engage the drive rollers using the lever provided. Turn the
lever until it locks into position and can no longer be turned
without excessive force (the end position is roughly vertical).
Ensure that there no obstacles around the caravan, release
the handbrake and switch the remote control on. Now check
all functions several times in accordance with the operating
instructions.
Apply caravan parking brake. Move the slide switch on the
remote control to the "Off"
£
trol and the Manoeuvring Assistant off. Release the drive rollers
using the lever and check the distance between the rollers and
tyres again. Re-adjust if necessary.
The distance between the disengaged drive rollers
and the tyres is 20 mm.
Warnings
The installer or vehicle owner must apply the yellow sticker
with the warning information, which is enclosed with the appli-
ance, to a place in the vehicle where it is clearly visible to all
users (e.g. on the wardrobe door). Any missing stickers can be
requested from your dealer..
position. This
❙
£
position to switch the remote con-
posi-
21
