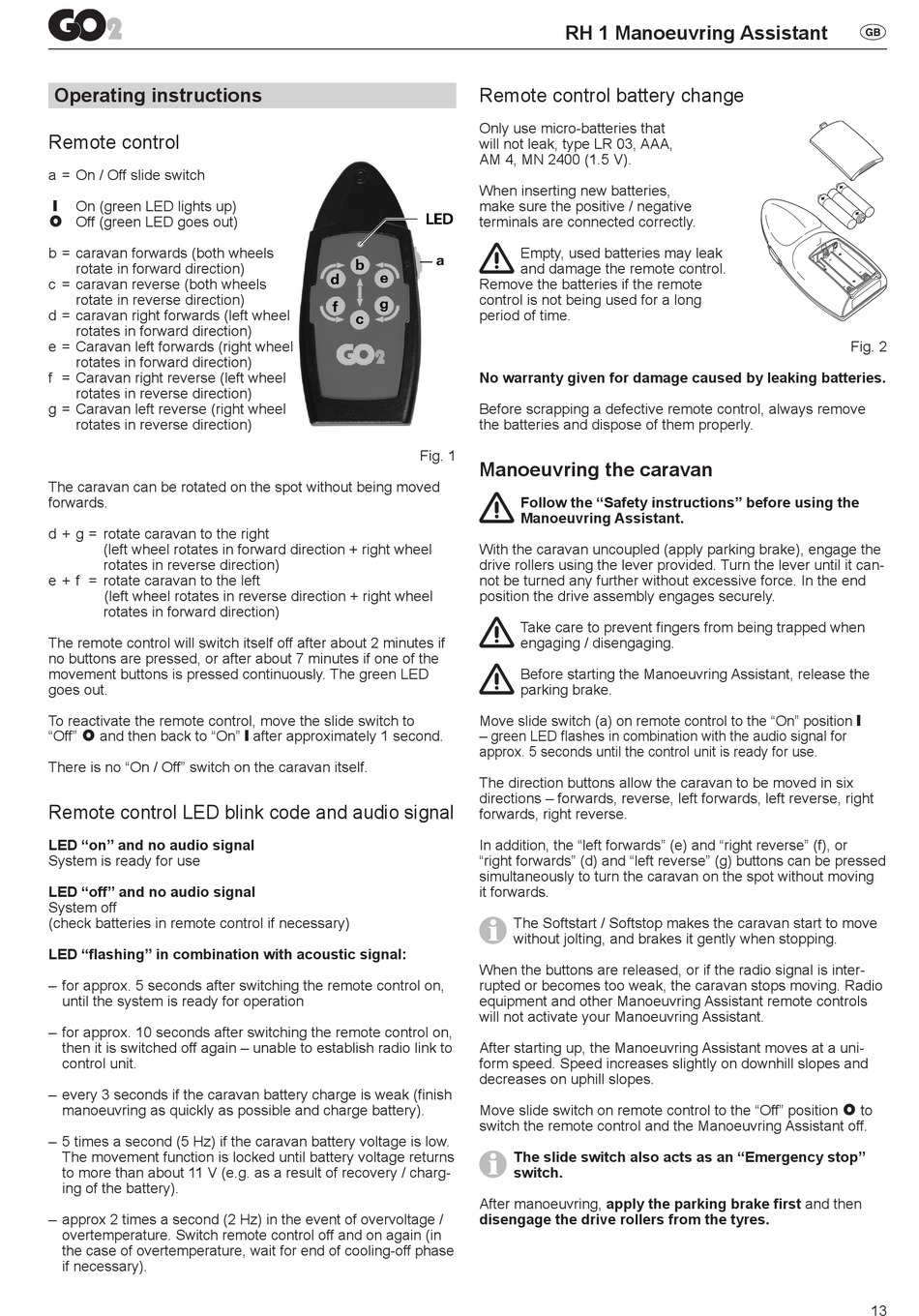

Operating instructions
Remote control
a = On / Off slide switch
On (green LED lights up)
❙
£ Off (green LED goes out)
b = caravan forwards (both wheels
rotate in forward direction)
c = caravan reverse (both wheels
rotate in reverse direction)
d = caravan right forwards (left wheel
rotates in forward direction)
e = Caravan left forwards (right wheel
rotates in forward direction)
f = Caravan right reverse (left wheel
rotates in reverse direction)
g = Caravan left reverse (right wheel
rotates in reverse direction)
The caravan can be rotated on the spot without being moved
forwards.
d + g = rotate caravan to the right
(left wheel rotates in forward direction + right wheel
rotates in reverse direction)
e + f = rotate caravan to the left
(left wheel rotates in reverse direction + right wheel
rotates in forward direction)
The remote control will switch itself off after about 2 minutes if
no buttons are pressed, or after about 7 minutes if one of the
movement buttons is pressed continuously. The green LED
goes out.
To reactivate the remote control, move the slide switch to
"Off" and then back to "On"
£
There is no "On / Off" switch on the caravan itself.

Remote control LED blink code and audio signal

LED "on" and no audio signal
System is ready for use
LED "off" and no audio signal
System off
(check batteries in remote control if necessary)
LED "flashing" in combination with acoustic signal:
– for approx. 5 seconds after switching the remote control on,
until the system is ready for operation
– for approx. 10 seconds after switching the remote control on,
then it is switched off again – unable to establish radio link to
control unit.
– every 3 seconds if the caravan battery charge is weak (finish
manoeuvring as quickly as possible and charge battery).
– 5 times a second (5 Hz) if the caravan battery voltage is low.
The movement function is locked until battery voltage returns
to more than about 11 V (e.g. as a result of recovery / charg-
ing of the battery).
– approx 2 times a second (2 Hz) in the event of overvoltage /
overtemperature. Switch remote control off and on again (in
the case of overtemperature, wait for end of cooling-off phase
if necessary).
after approximately 1 second.
❙
RH 1 Manoeuvring Assistant

Remote control battery change

Only use micro-batteries that
will not leak, type LR 03, AAA,
AM 4, MN 2400 (1.5 V).
When inserting new batteries,
make sure the positive / negative
terminals are connected correctly.
Empty, used batteries may leak
and damage the remote control.
Remove the batteries if the remote
control is not being used for a long
period of time.
No warranty given for damage caused by leaking batteries.
Before scrapping a defective remote control, always remove
the batteries and dispose of them properly.
Fig. 1

Manoeuvring the caravan

Follow the "Safety instructions" before using the
Manoeuvring Assistant.
With the caravan uncoupled (apply parking brake), engage the
drive rollers using the lever provided. Turn the lever until it can-
not be turned any further without excessive force. In the end
position the drive assembly engages securely.
Take care to prevent fingers from being trapped when
engaging / disengaging.
Before starting the Manoeuvring Assistant, release the
parking brake.
Move slide switch (a) on remote control to the "On" position
– green LED flashes in combination with the audio signal for
approx. 5 seconds until the control unit is ready for use.
The direction buttons allow the caravan to be moved in six
directions – forwards, reverse, left forwards, left reverse, right
forwards, right reverse.
In addition, the "left forwards" (e) and "right reverse" (f), or
"right forwards" (d) and "left reverse" (g) buttons can be pressed
simultaneously to turn the caravan on the spot without moving
it forwards.
The Softstart / Softstop makes the caravan start to move
without jolting, and brakes it gently when stopping.
When the buttons are released, or if the radio signal is inter-
rupted or becomes too weak, the caravan stops moving. Radio
equipment and other Manoeuvring Assistant remote controls
will not activate your Manoeuvring Assistant.
After starting up, the Manoeuvring Assistant moves at a uni-
form speed. Speed increases slightly on downhill slopes and
decreases on uphill slopes.
Move slide switch on remote control to the "Off" position
switch the remote control and the Manoeuvring Assistant off.
The slide switch also acts as an "Emergency stop"
switch.
After manoeuvring, apply the parking brake first and then
disengage the drive rollers from the tyres.
Fig. 2
❙
