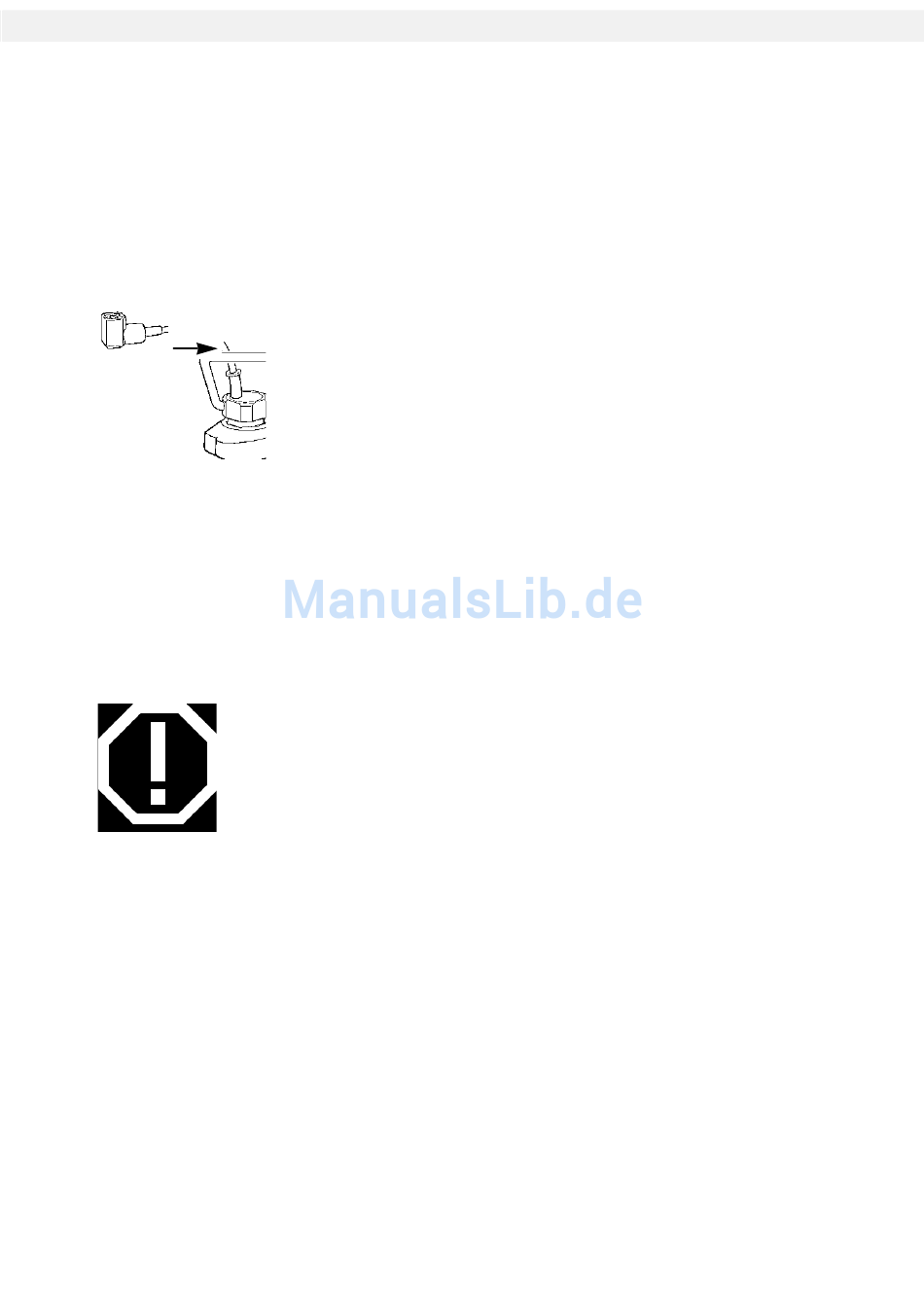

3. Place the loop of the control cable over the through-hull fitting and
knot the loose end of this line to the blind plug.
4. Screw the flooding valve on the through-hull fitting until a cracking
noise guarantees solid seating of the flooding valve.
5. Insert the log transducer from the top and secure it by tightening
the nut.
When inserting the transducer check for correct positio-
Bow
ning. The pointed end of the transducer's handle must
point to the bow when the transducer is inserted in the
through-full fitting.
Demounting the Log Transducer
Unscrew union nut and withdraw transducer from through-hull fitting,
gently turning transducer as jou do. After the removal of the transducer,
instantly insert blind plug into through-hull fitting.
To withdraw, always grip the log transducer by its handle.
Never pull on the signal cable.
INSTALLATION
93
