Installation of the log sender
Make a hole 39 mm diameter at an adequate location. The hull thickn-
ess should not exceed 30 mm.
Chamfer the hole outside edge with about 45 degrees for sealant dprea-
ding during assembly.
Install the hull sleeve and the sender as follows:

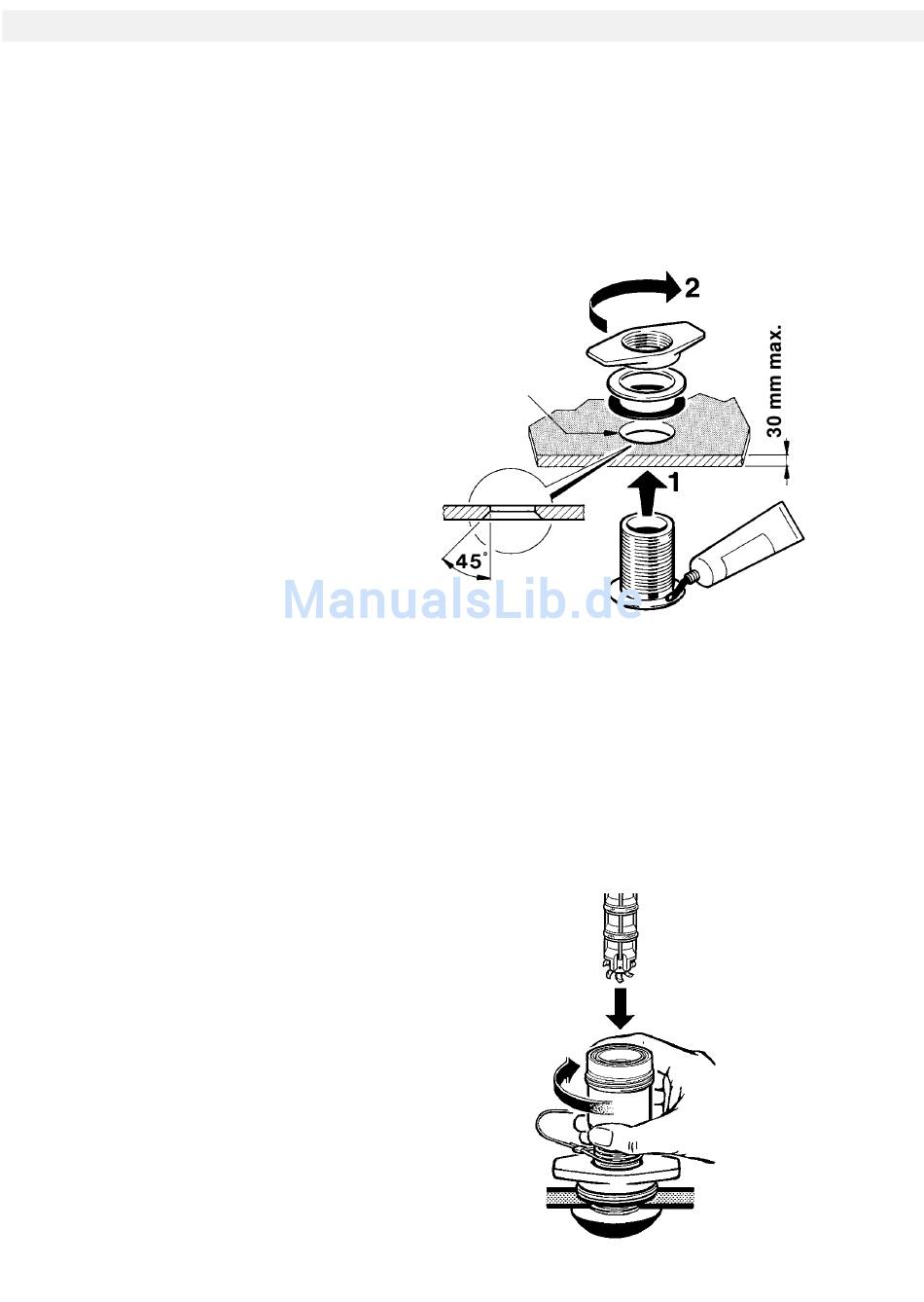

Hull sleeve installation
1. Insert the hull sleeve from the outside and bond it with a salt-water
resistant sealant.
2. From the inside, first place the black gasket, than the white one on
the sleeve, then screw the fixation nut.
The fixation nut should first be tightened hand-tight. After curing of
the sealant continue tightening the nut by hand (about 1/4 turn
more) and check the installation for leaks.
Install flooding valve and sender:
