Installation of the VDO LOGIC DEPTH System
Please read the safety instructions on pages 5 and 6 before
you start the installation.

Installation of the indicating unit

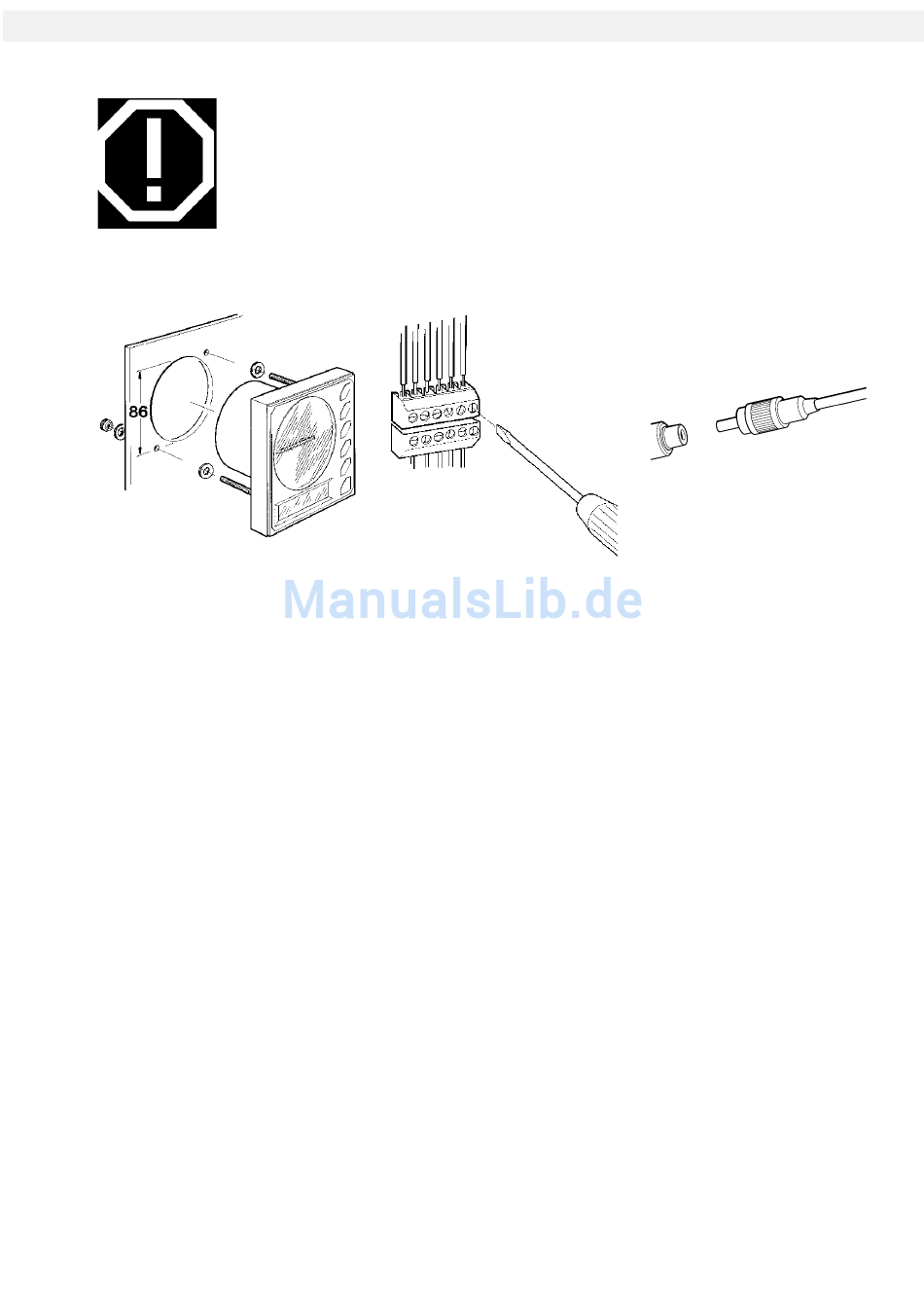

- Paste the supplied drilling template to the desired location.
- Drill the indicated holes.
- Slowly pull off the template.
- Carefully clean the surroundings before inerting the indicating in-
strument. Remove all chips.
- Place the supplied neoprene mat under the installaton location.
- Connect the instrument per wiring diagram (see "Electrical instal-
lation"), then insert the instrument.
- Fix the instrument by tightening the knurled nuts.
The knurled nuts should only be tightened hand-tight.
