System components

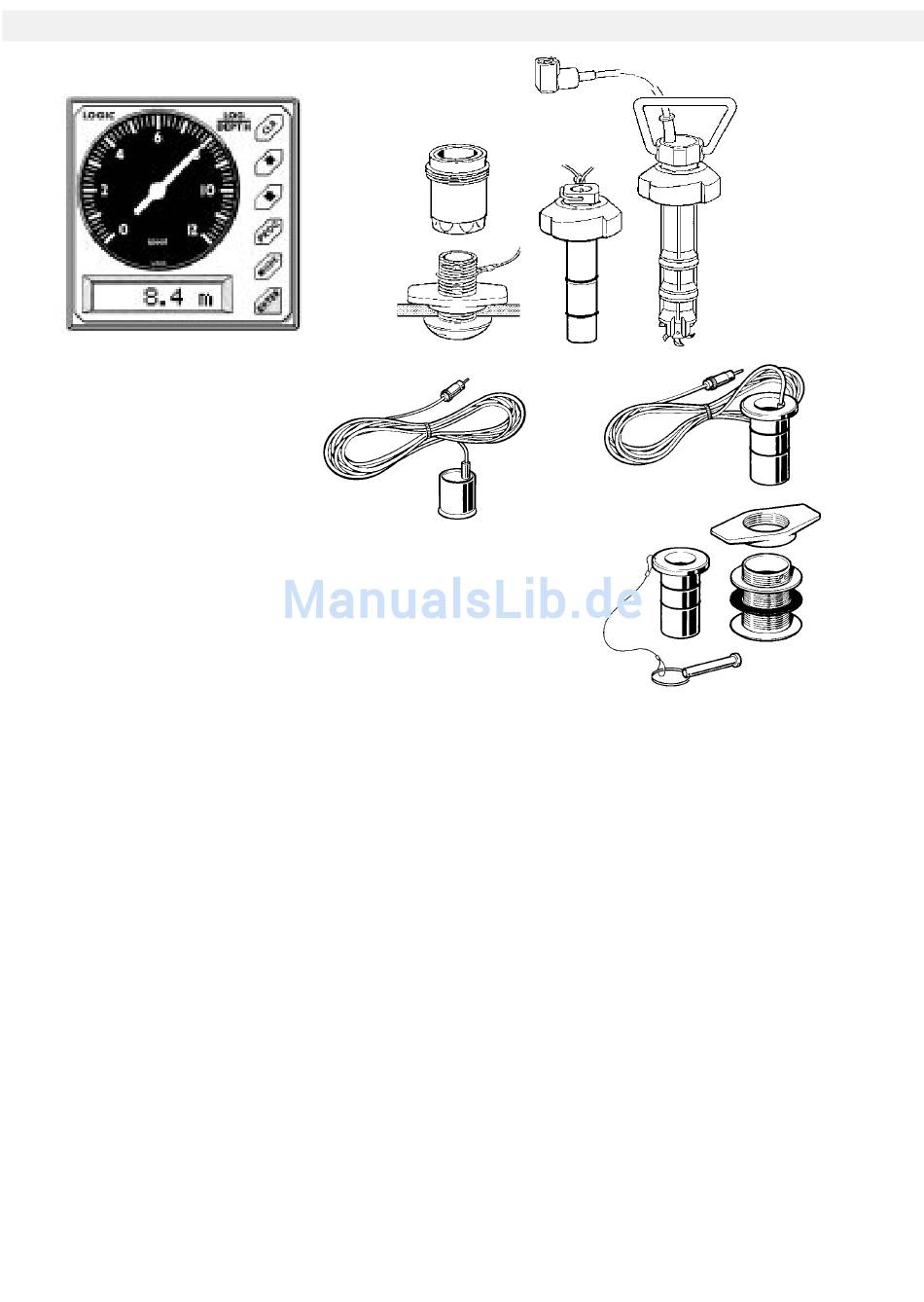

The unit consists of:
- Display unit with protective cover
- Drilling template for indicating instrument installation
- Neoprene pad for indicating instrument
- Mounting parts kit for indicating instrument
- Log sender with paddle wheel
- Connecting cable for log sender, length 9 m, with connector
- Hull sleeve for log sender, with sealing washers and fixation nut
- Flooding valve for log sender
- Blind plug for log sender with control cable
- Echosounder with connecting cable, length 9 m, and connector
(for internal installation or for installation through the hull, depen-
ding on the type)
- Hull sleeve for echosounder, with sealing washers, fixation nut, re-
tainer pin and retainer rings
- Blind plug with control cable for echosounder (only for echosoun-
der installed through the hull)
- Connecting cable from display unit to another display unit (11 wi-
res, 0.4 m)
- Product certificate
- Installation and operating instructions
