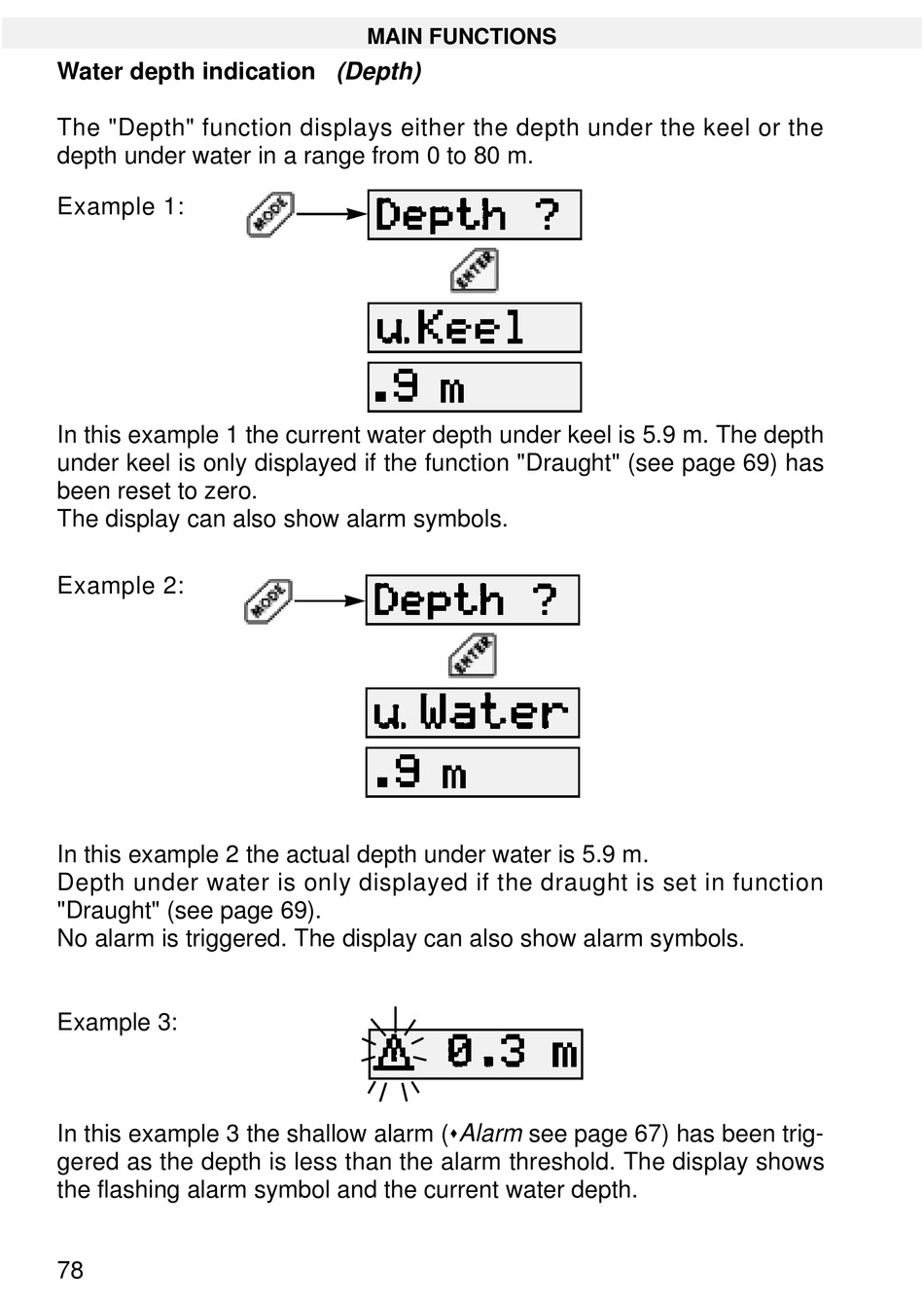

MAIN FUNCTIONS
Water depth indication (Depth)
The "Depth" function displays either the depth under the keel or the
depth under water in a range from 0 to 80 m.
Example 1:
In this example 1 the current water depth under keel is 5.9 m. The depth
under keel is only displayed if the function "Draught" (see page 69) has
been reset to zero.
The display can also show alarm symbols.
Example 2:
In this example 2 the actual depth under water is 5.9 m.
Depth under water is only displayed if the draught is set in function
"Draught" (see page 69).
No alarm is triggered. The display can also show alarm symbols.
Example 3:
s
In this example 3 the shallow alarm ( Alarm see page 67) has been trig-
gered as the depth is less than the alarm threshold. The display shows
the flashing alarm symbol and the current water depth.
78
