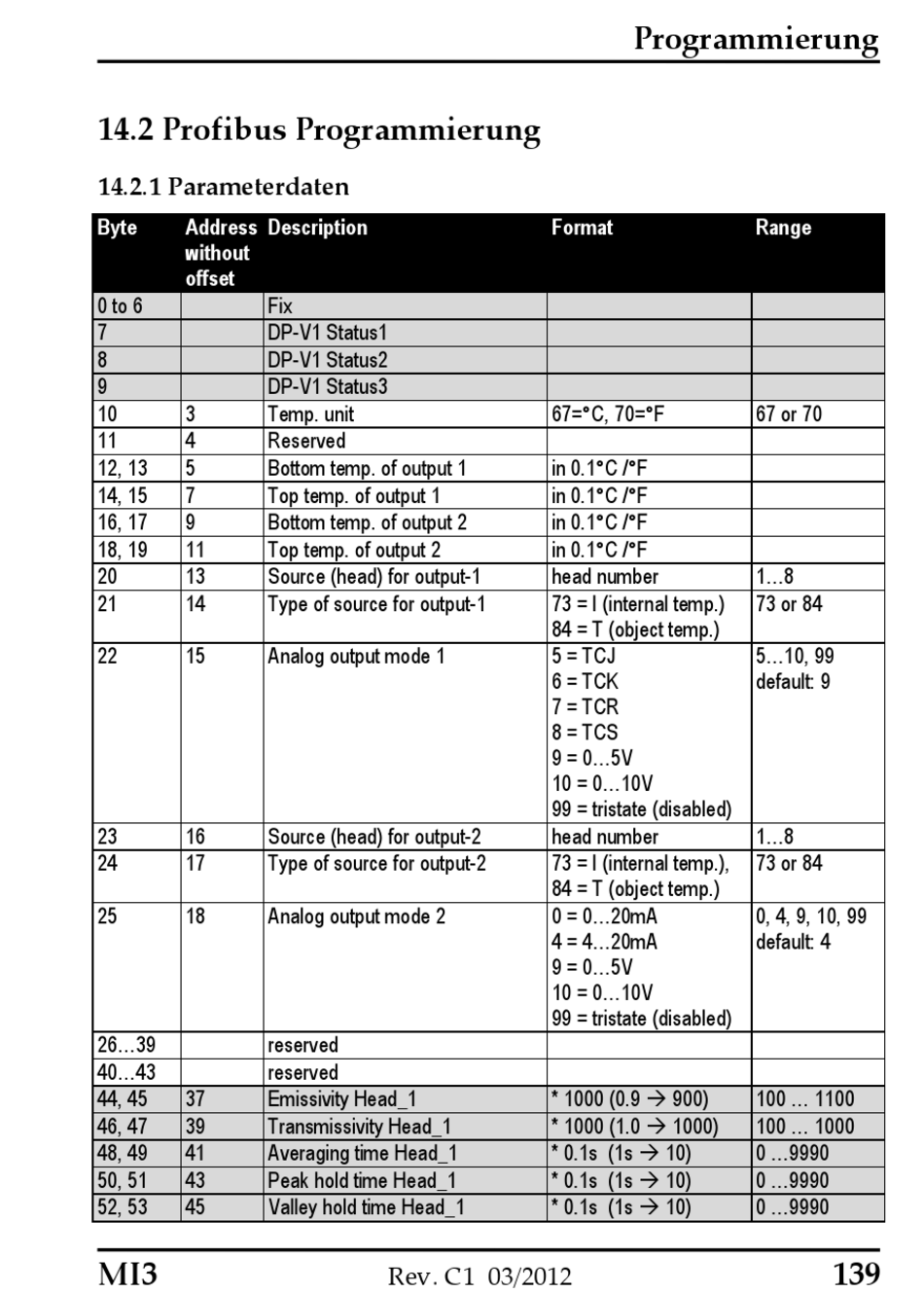

14.2 Profibus Programmierung

14.2.1 Parameterdaten

Byte Address Description
without
offset
0 to 6 Fix
7 DP-V1 Status1
8 DP-V1 Status2
9 DP-V1 Status3
10 3 Temp. unit
11 4 Reserved
12, 13 5 Bottom temp. of output 1
14, 15 7 Top temp. of output 1
16, 17 9 Bottom temp. of output 2
18, 19 11 Top temp. of output 2
20 13 Source (head) for output-1
21 14 Type of source for output-1
22 15 Analog output mode 1
23 16 Source (head) for output-2
24 17 Type of source for output-2
25 18 Analog output mode 2
26...39 reserved
40...43 reserved
44, 45 37 Emissivity Head_1
46, 47 39 Transmissivity Head_1
48, 49 41 Averaging time Head_1
50, 51 43 Peak hold time Head_1
52, 53 45 Valley hold time Head_1
MI3
Format
67=°C, 70=°F
in 0.1°C /°F
in 0.1°C /°F
in 0.1°C /°F
in 0.1°C /°F
head number
73 = I (internal temp.)
84 = T (object temp.)
5 = TCJ
6 = TCK
7 = TCR
8 = TCS
9 = 0...5V
10 = 0...10V
99 = tristate (disabled)
head number
73 = I (internal temp.),
84 = T (object temp.)
0 = 0...20mA
4 = 4...20mA
9 = 0...5V
10 = 0...10V
99 = tristate (disabled)
* 1000 (0.9  900)
* 1000 (1.0  1000)
* 0.1s (1s  10)
* 0.1s (1s  10)
* 0.1s (1s  10)
Rev. C1 03/2012
Programmierung
Range
67 or 70
1...8
73 or 84
5...10, 99
default: 9
1...8
73 or 84
0, 4, 9, 10, 99
default: 4
100 ... 1100
100 ... 1000
0 ...9990
0 ...9990
0 ...9990
