3.7.3
UCS27B
[5]
[1]
[2]
[3]
[4]
[5]
Betriebsanleitung – MOVISAFE® UCS..B Kompakt
[1]
S1
S2
[2]
STATUS
[3]
SYS
PN
Fault
XPN
[4]
S1
DIP-Schalter: Terminierung Rückwandbus
S2
DIP-Schalter: Ohne Funktion
STATUS
LED-Anzeige: Anzeige des Systemstatus
SYSFault LED-Anzeige: Status interne Kommunikation zum Basismodul
XPN
Anschluss PROFINET
PN
LED-Anzeige: Status Kommunikation PROFINET

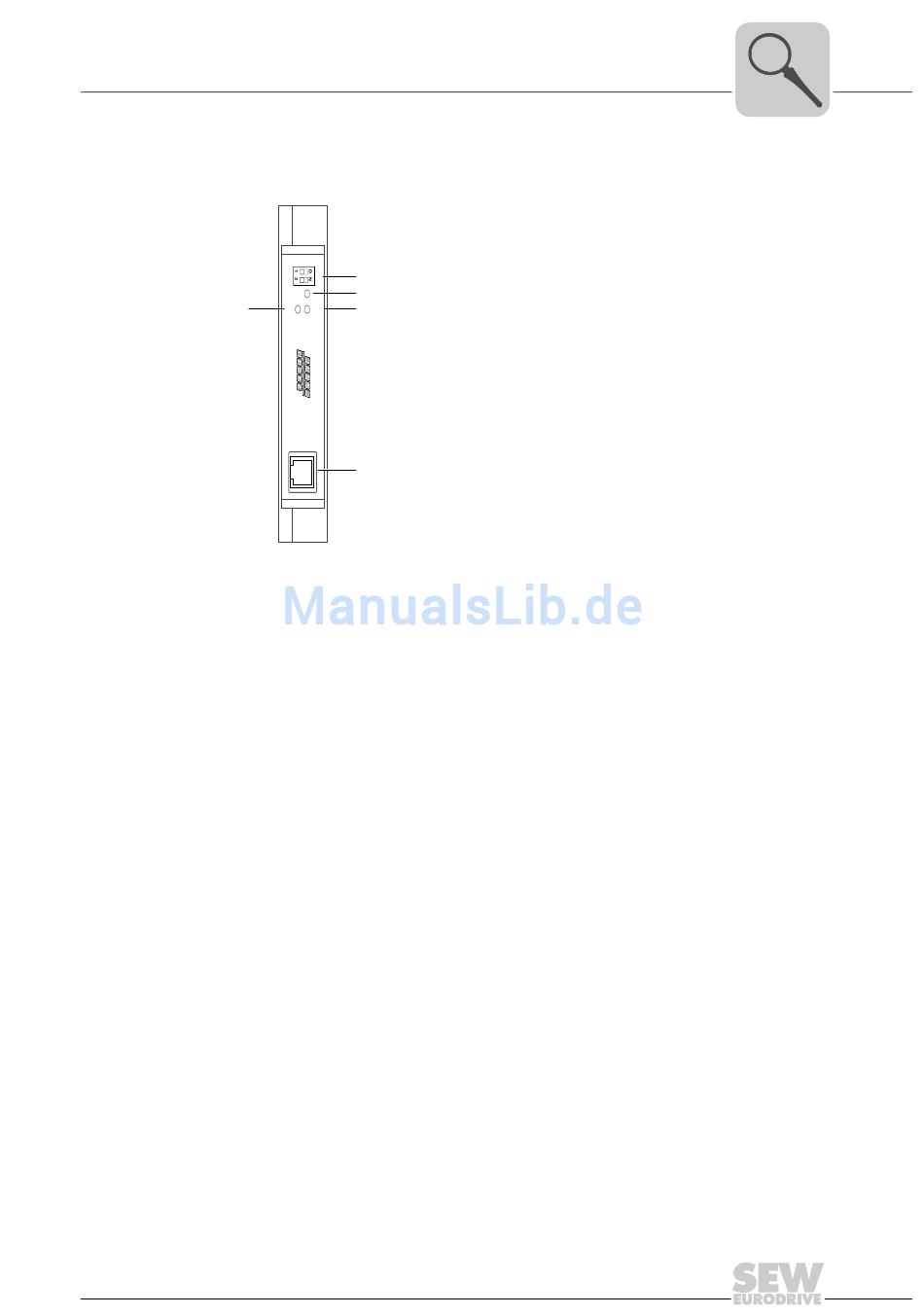

Geräteaufbau
