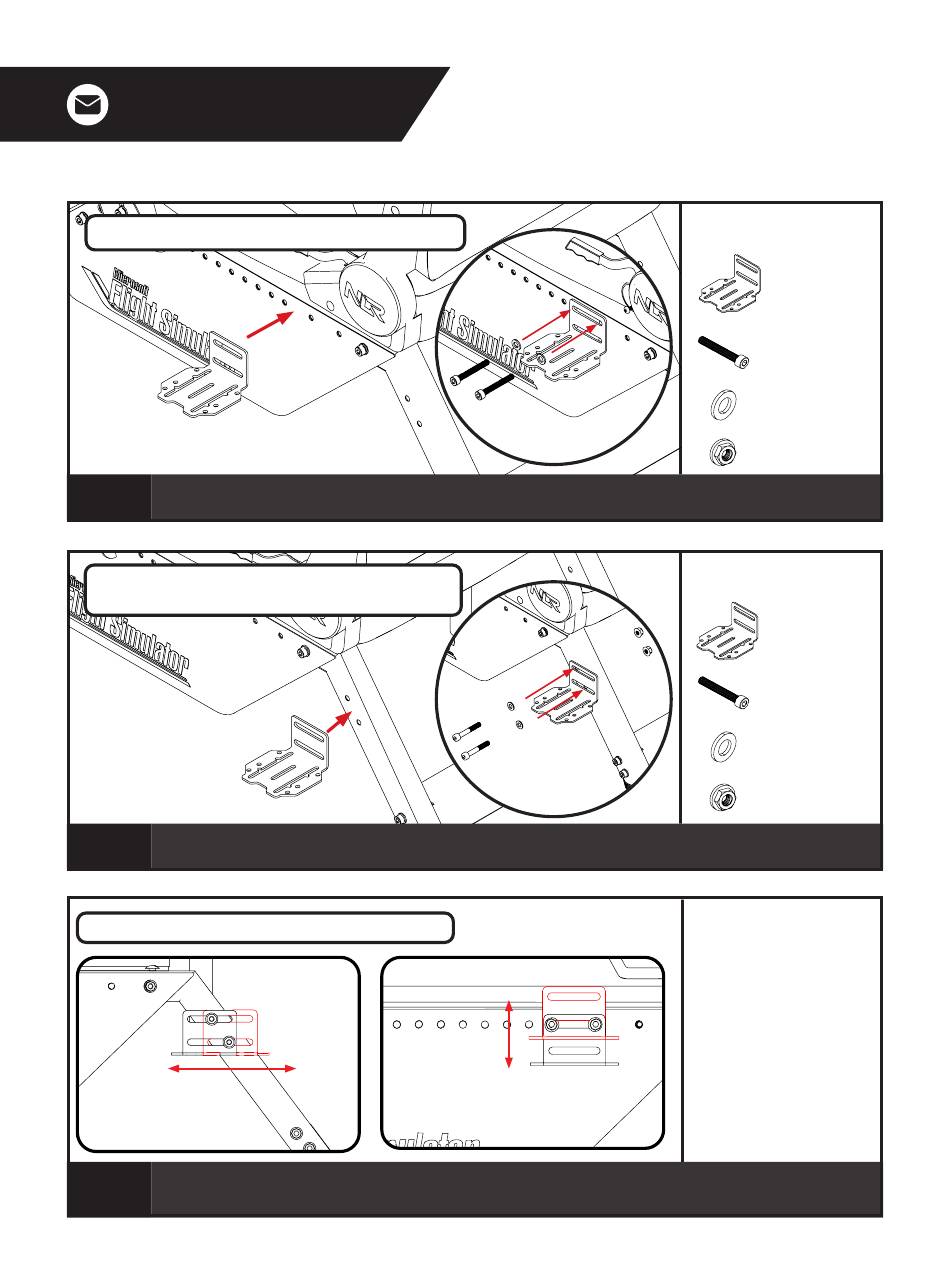

COLLECTIVE BRACKET INSTALLATION
44
Align the horizontal slots on the Collective Bracket with the mounting holes on the frame of the cockpit. Bolt
through and secure with 2 x M8 Bolts, Washers and Flange Nuts.
EXTENDED COLLECTIVE INSTALLATION
(RECOMMENDED FOR EXTENDED COLLECTIVES)
45
Align the horizontal slots on the Collective Bracket with the mounting holes on the frame of the cockpit. Bolt
through and secure with 2 x M8 Bolts, Washers and Flange Nuts.
COLLECTIVE BRACKET ADJUSTMENT
46
Loosen the bolts securing the Collective Bracket to the cockpit. Adjust to the desired position and tighten bolts to
secure.
30 30
PARTS:
• • 1 x Collective Bracket
• • 2 x 55mm Sockethead Bolts
• • 2 x M8 Washers
• • 2 x M8 Flange Nuts
PARTS:
• • 1 x Collective Bracket
• • 2 x 55mm Sockethead Bolts
• • 2 x M8 Washers
• • 2 x M8 Flange Nuts
PARTS:
• • NIL
