OPTIONAL CROSS
MEMBER POSITION
)
A
07

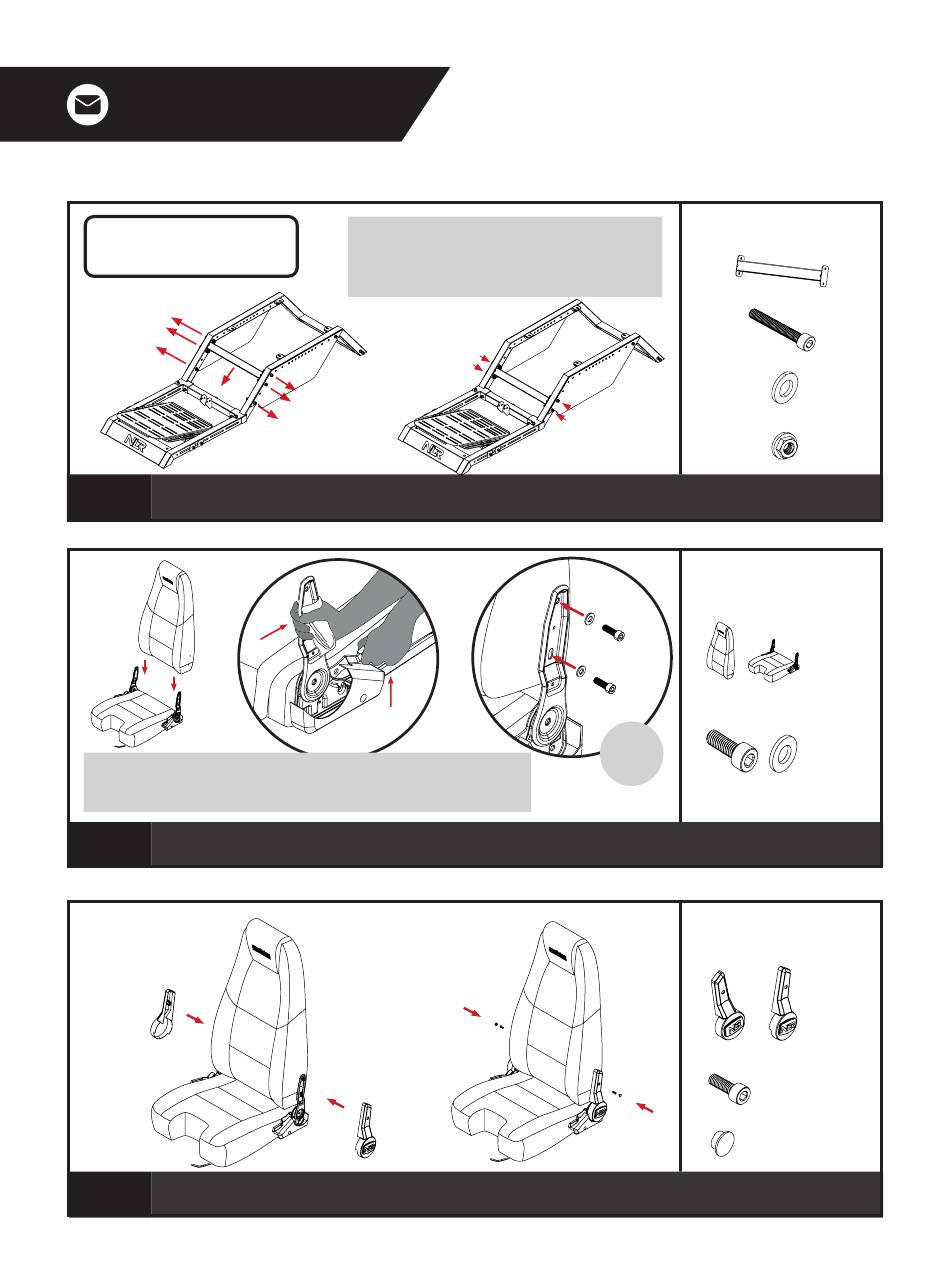

A) Uninstall the hardware and Cross Member.
B) Align the mounting holes on the Cross Member with the through holes on the Left and Right Seat Frames and Side Panels.
A)
WARNING:
Make sure both Seat Recliner Arms are set to the same angle before
assembling the seat. If an adjustment is required use a cloth to protect your
hand while adjusting. Remove warning labels once adjustment has been made.
08
A) Align the threaded inserts on the Seat Backrest with the mounting holes on the Seat Recliners.
B) Bolt through and secure with the M8 Bolts and Washers.
A)
09
A) Align the mounting hole on the Seat Recliner Covers with the Seat Recliners.
B) Bolt through and secure with the M5 Bolts and press fit the Bolt Covers to cover the hole.
NOTE: To lower your Flight Stick for the optional HOTAS
assembly, see Step 16, you can use this position.
This adjustment also moves the stick further forward.
Additionally, in this position, the center pole support
bracket for the YOKE assembly will not connect.
)
B
B)
B)
16
16
PARTS:
• • 1 x Cross Member (from Step 06)
• • 4 x M8 55mm Bolts (from Step 06)
• • 4 x M8 Washers (from Step 06)
• • 4 x M8 Flange Nuts (from Step 06)
PARTS:
• • 1 x Seat Backrest
• • 1 x Seat Bottom
• • 4 x M8 25mm Bolts
• • 4 x M8 Washers
Repeat
on Other
Side
PARTS:
• • 1 x Right Seat Recliner Cover
1 x Left Seat Recliner Cover
• • 2 x M5 12mm Bolts
• • 2 x Bolt Covers
