A
13

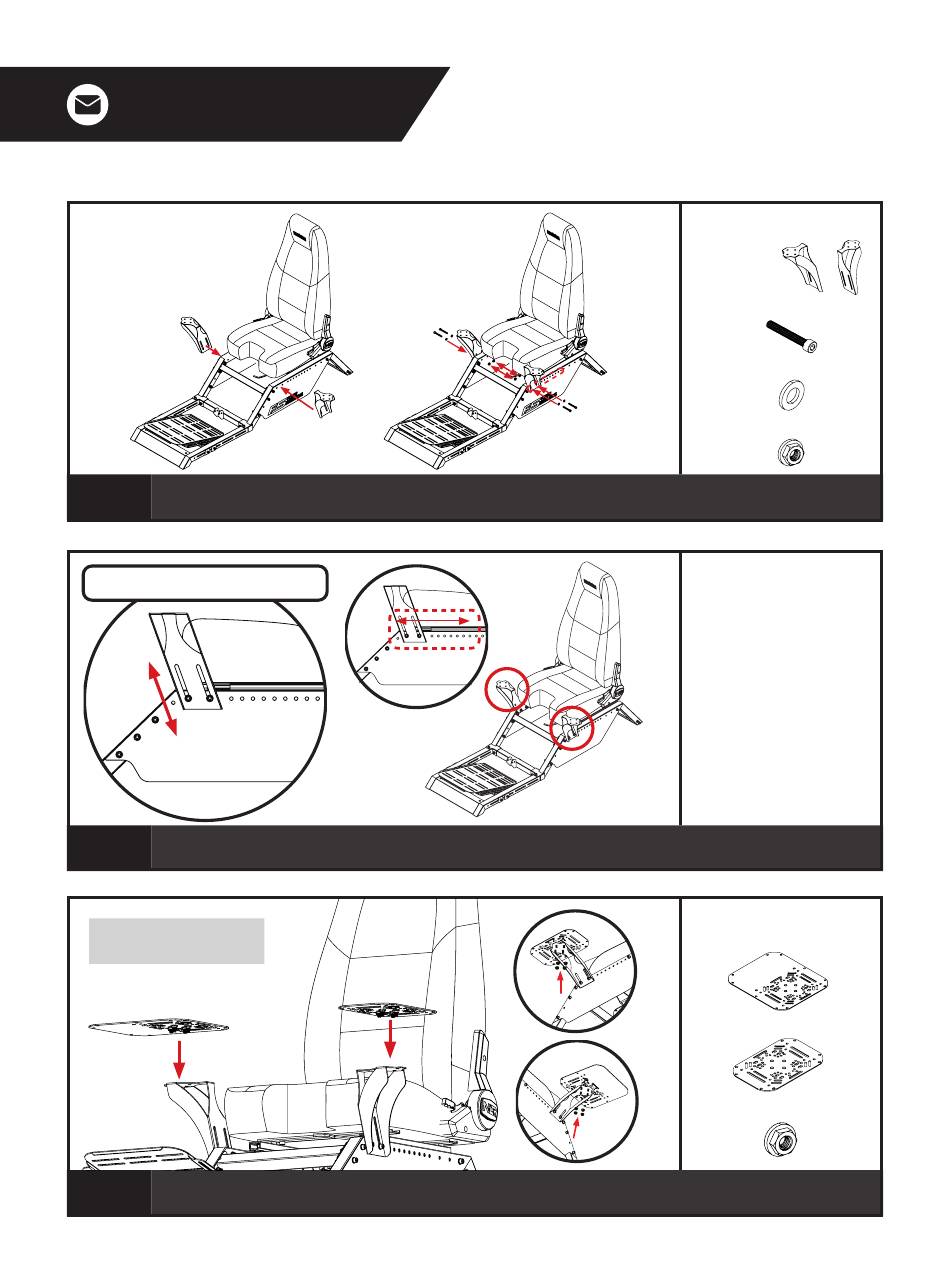

A) Align the mounting slots on the Left and Right Side Arms with the through holes on the Left and Right Seat Frames and Side Panels.
B) Bolt through and secure with 4 x M8 Bolts, Washers and Flange Nuts.
SIDE ARM ADJUSTMENT
14 Loosen the Bolts to adjust the Side Arms to the desired height and angle. Tighten the Bolts to lock in
place. Utilize the extra through holes on the Seat Frames for back and forward adjustment.
NOTE: The plates are interchangeable and
can be mounted to accommodate either left
or right-handed users.
15 Align the Threaded Studs on the Mouse Plate and Flight Plate with the mounting holes on the Left and
Right Side Arms. Secure with 8 x M8 Flange Nuts.
)
B
18 18
PARTS:
L)
R)
• • 2 x Side Arms
• • 4 x M8 55mm Bolts
• • 4 x M8 Washers
• • 4 x M8 Flange Nuts
PARTS:
• • NIL
PARTS:
• • 1 x Mouse Plate
• • 1 x Flight Plate
• • 8 x M8 Flange Nuts
